MULTI-PURPOSE LED AREA LIGHT 50 WATTS 3000K, 4000K, & 5000K
DESCRIPTION

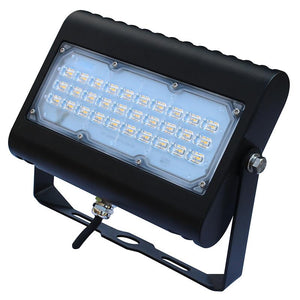

MULTI-PURPOSE LED AREA LIGHT 50 WATTS 3000K, 4000K, & 5000K - The LEDMPAL series is a group of architectural LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the LEDMPAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted area lighting, and other outdoor lighting requirements.
▪ Available in 3000k (warm white), 4000K (neutral white) and 5000K (cool white).*
▪ Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Delivers 5,882 lumens & 118 lumens per watt (LPW) at 3000k; 6,031 lumens and 121 LPW at 4000k; and 6,179 lumens & 124 LPW at 5000k.*
▪ Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Optional glare shields (full & half) & wire guards are available.
▪ Die cast aluminum housing with durable, dark bronze powder coat finish, and a heat-resistant polycarbonate lens.
▪ Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
▪ Effective projected areas (EPA's) are: Front = 0.13 square feet, Side = 0.09 square feet, Face = 0.43 square feet
▪ Easy installation in new construction or retrofit applications.
Shields & Wire Guards (Accessories Order Separately)
BST-MPAL50-FGS = Full Glare Shield, 15W
BST-MPAL50-HGS = Half Glare Shield, 15W
BST-MPAL50-WG = Wire Guard, 15W
