103W LED Canopy Light

103W LED Canopy Light

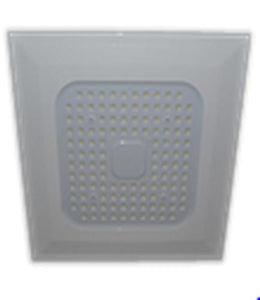

The 103W LED canopy light has a die formed aluminum lower and upper housing with an aluminum electrical box connected to a fixture via a threaded aluminum stem. These fixtures can surface mount or suspension mount using a "Y" cable assembly. The LCN3-060K blends well into a variety of commercial locations including convenience stores as well as high-bay/low-bay storage areas.

Our 103W LED canopy lights have an internal optical chamber that consists of tempered glass that is sealed to the light engine. This unit uses an LED grid with 60 diodes that create a very uniform lighting pattern and use very little energy. A white injection molded reflector system produces Type 5 distribution with a typical luminaire efficacy of 85-89 lumens per watt.

Get the LCN3-060 by ordering online or you can call us at 800-839-4734 to discuss your location needs. For less urgent inquiries we encourage you to email our production staff.

Key Features

  • Uses 60 LEDs in a uniform grid pattern
  • Color Temperature - 3000K, 4100K or 5000K
  • CRI - 70(400k)
  • Operating Temp - -40° to 122° F
  • CSA Listed for Wet Locations
  • RoHS compliant green technology

Electrical Specification

  • Multi-Volt - 120/208/240/277VAC
  • High-Volt - 347-480VAC


  • RoHS Certified - no harmful chemicals
  • IDA Approved - Dark Sky Luminaire
  • CE and CSA Listed for Wet Locations
  • ISO 9001 Quality Assurance
  • LEDs tested to IESNA LM-79 and LM-80 standards

Mounting Options

  • Y-cable Suspension Mounting (HBS)
  • Pendant Mounting (HBP)


Nominal Color Temperature - select standard cool white 5000K (CW), neutral 4100K (NW) or warm white 3000K (WW).
