40W LED Soffit Luminaire

40W LED Soffit Luminaire

Overview

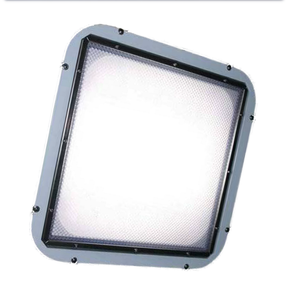

The LSF1 Series 40W LED soffit luminaire has a die cast aluminum housing that is given a white polyester powder coat that protects it from corrosion in wet and damp locations. LSF1-036 has a clear prismatic micro-lens that is coupled to a stainless steel lens frame. The entire lens assembly is gasket sealed, preventing the intrusion of water or moisture.

Our 40W soffit luminaries can be flush-mounted to most non-insulated (plenum) ceilings for an almost zero-profile look. They use an internal LED light engine and rear heat radiating fins to keep the LEDs burning for up to 60,000 hours.

To get the LSF1-036 for your business, call us toll-free at 800-839-4734. For further inquiries or to obtain a quote or spec sheet, just email our production staff.

Key Features

  • LEDs and light engine last up to 60,000 hrs!
  • Color Temperature - 3500K, 4100K, 5000K
  • CRI - 70(400k)
  • Full cutoff design is Dark Sky Compliant
  • CSA Listed for Wet Locations
  • RoHS compliant green technology

Electrical Specification

  • Multi-Volt - 120/208/240/277VAC

Compliance

  • RoHS Certified - no harmful chemicals
  • IDA Approved - Dark Sky Luminaire
  • CE and CSA Listed for Wet Locations
  • ISO 9001 Quality Assurance
  • LEDs tested to IESNA LM-79 and LM-80 standards

Options

Nominal Color Temperature - select standard cool white 5000K (CW), neutral 4100K (NW) or warm white 3500K (WW).
