35W Mini HPS Wall Pack
Overview

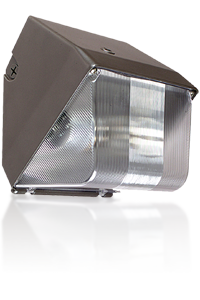

The 35W mini HPS wall pack is a small aluminum outdoor fixture which projects brilliant HID illumination even in the roughest weather. HPS-35s easily survive temperatures as low as -22° F. Gasketed enclosure prevents the intrusion of rain, humidity, snow and ice.
Similar to gas discharge lamps found in street lighting, high-pressure sodium vapor (HPS) lamps use sodium in an excited state that creates a bright arc when electrified. HPS projects white light and has a broader spectrum than low-pressure street lamps which emit an ugly yellow glow.
The B17 high pressure sodium lamps have a shelf-life of 20,000 hours of continuous use.
Key Features
- UL Listed for wet locations across the U.S.
- Can withstand cold temperatures as low as -22° F
- 2-year warranty
- Buy America Certificate
Applications
35 watt mini HPS wall packs are compact, economical models that are a great choice for lighting narrow passageways, walkways and outdoor stairwells. They are also an inexpensive unit for augmenting larger outdoor fixtures.
These glass and aluminum wall packs are completely sealed to prevent water or damp weather from affecting the electronic components.
External Specification
35W mini HPS wall packs are constructed with a robust, die-cast aluminum casing with an architectural bronze finish. A semi-clear borosilicate refractor protects the HPS lamps inside. Stainless steel fasteners and rubber gaskets seal the unit completely from outside moisture.
They have 1/2" conduit entry points at the bottom for surface mounts. Conduit points in back for attach to any 4" j-box.
Internal Specification
The B17 150W tube fits in a 4KV glazed porcelain socket. The light produced is directed and amplified by an internal anodized aluminum reflector.
A R-NPF or HX-HPF ballast converts incoming AC power into a voltage applicable to the HPS tube and regulates any sudden overloads.
Electrical Specification
This unit can toggle between 2 wire inputs:
- DoUSA e-tap for 120/277 VAC
- Multi-tap for 120/208/240/277 VAC
Options
Photocontrol Photocell - Sensor detects sunrise and sunset and automatically activates the light accordingly. Select 'PC1' for 120V photocontrol. Select 'PC2' for 208-277V photocontrol.
