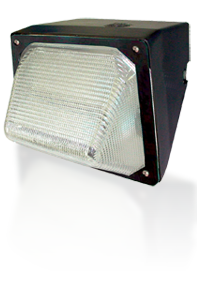

70W Small Metal Halide Wall Pack

70W Small Metal Halide Wall Pack

Overview

The 70W small metal halide wall pack emits bright illumination in temperatures as low as -22° F. A flame-resistant borosilicate glass protects the high intensity lamps secured within the aluminum housing.

70 watt metal halide lamps create illumination from an electric arc (instead of a filament like incandescent models) created by an energized gaseous mix of vaporized mercury and metal halides.

Known throughout the lighting industry as high-intensity (HID) lamps, the TL104-MH-70 belongs to the family of gas discharge lamps. Metal halide is twice as efficient as mercury vapor and HPS technology, and are three to five-times more efficient than incandescents!

Key Features

  • 70 watt BD17 MH-type lamps included
  • Can accommodate many MH lamps, ranging from 50-100 watts
  • UL Listed for wet locations across the U.S.
  • Can withstand prolonged cold weather as low as -22° F
  • 2-year warranty
  • Buy America Certificate

Applications

70 watt metal halide wall packs are the best mid-range, small-sized fixtures we carry in the MH category. They are a great choice for locations that only need a nominal amount of illumination, usually at low-level wall placements.

These units are a great choice for parking areas, foot paths, underpasses and recreational facilities.

External Specification

TL104-MH-70s are built with a corrosion resistant, die-cast aluminum casing with an architectural bronze powder-coating finish. Stainless steel screws and gaskets seal the unit completely from outside moisture. A heat-resistant borosilicate refractor covers the lamps inside.

Metal halide wall packs have 1/2" conduit points at the underside for surface mounts and conduit points in back for mounting to any 4" junction box.

Internal Specification

Light is focused and intensified by a rear-installed anodized aluminum reflector. The included BD17 70W MH tube screws into a medium based 4KV glazed porcelain socket.

An HX-HPF ballast regulates any sudden electrical overloads and converts the building's hardwired AC electricity into an acceptable voltage to power the lamps

Electrical Specification

This unit can toggle between 2 wire inputs:

    • Single line side fuse for 120 or 277 VAC
    • Double line side fuse for 120, 208, 240, 277 or 480 VAC

Options

Photocontrol Photocell - Sensor detects sunrise and sunset and automatically activates the light accordingly.

    • Select 'PC1' for 120V photocontrol
    • Select 'PC2' for 208-277V photocontrol

Wireguard - Further protection against vandalism.

Glare Sheild - Blinder greatly reduces the chance blinding injuries caused by looking directly into the light.
