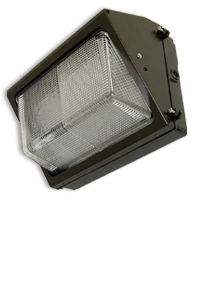

150W Medium Metal Halide Wall Pack

150W Medium Metal Halide Wall Pack

Overview

Our 150W medium metal halide wall packs project brilliant illumination in temperatures as low as -22° F. A heat-resistant borosilicate glass lens contains these powerful lamps inside the aluminum housing

These fixtures have 150W metal halide lamps, which illuminate from an electric arc (instead of a filament like incandescent models). The arc is sparked by an energized gaseous mix of vaporized mercury and metal halides.

These wall units are known throughout the industry as high-intensity discharge (HID) lights, which are part of the gas discharge family of lamps. Metal halide is twice as efficient as mercury vapor and HPS lights, and are three to five-times that of incandescents!

Key Features

  • Can accommodate many types of MH lamps, from 50-150W
  • UL Listed for wet locations across the U.S.
  • Can withstand prolonged cold weather as low as -22° F
  • 2-year warranty
  • Buy America Certificate

Applications

150 watt metal halide wall packs are the brightest medium-sized MH fixture we carry, and are a great choice for high or low ceilings in underpasses, loading docks and stadiums.

This medium aluminum wall pack has a hinged cover for easy access and maintenance of the internal components and is hermetically sealed to lock out moisture.

External Specification

Built with a tough, die-cast aluminum casing and powder-coated with an architectural bronze finish. A heat-resistant borosilicate refractor covers the lamps inside. Stainless steel screws and gaskets seal the unit completely from outside moisture.

TL106-MH-150s have 1/2" conduit entry points at the bottom for surface mounts and conduit points in back for attachment to any 4" j-box.

Internal Specification

The BD17 150W tube screws into a medium based 4KV glazed porcelain socket. The light they produce is directed and amplified by an anodized aluminum reflector.

An HX-HPF ballast converts incoming AC power into a voltage acceptable to excite the metal halide elements in the tube while regulating any sudden overloads.

Electrical Specification

This unit can toggle between 2 wire inputs:

      • Double-tap for 120/277 VAC
      • Multi-tap for 120/208/240/277 VAC

Warranty

2-year warranty

Options

Photocontrol Photocell - Sensor detects sunrise and sunset and automatically activates the light accordingly. Select 'PC1' for 120V photocontrol. Select 'PC2' for 208-277V photocontrol.

Full Cutoff Shield - Narrows the wall pack's beam into a focused spot on the ground and prevents light from trespassing into other property or into the sky. Adding this feature will make your unit Dark Sky compliant.

Wireguard - Further protection against vandalism.

Polycarbonate guard - a clear shell that encases the entire unit, adding further protection against the elements.
