70W HPS Small Flood Light

Overview

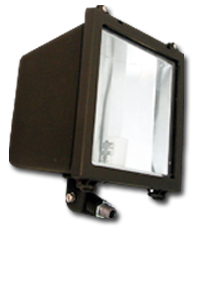

The 70W HPS small flood light is constructed with a die-cast aluminum housing that is applied with an architectural bronze powder coating finish. The WP201-HPS-70-DT has a hinged aluminum lens frame that can be opened in the field for quick inspections or re-lamping. A tempered glass lens offers extreme protection to the high pressure sodium lamp inside.

Our 70W HPS small flood lights are CSA approved for all wet locations and have a gasket-sealed lens frame that prevents the intrusion of water and moisture. The 70 watt B17 lamps twist lock into a 4KV rated glazed porcelain socket. The HID illumination produced by this floodlight is thrown in an even pattern using an anodized reflector. Great for outdoor walkways, work sites and mining operations.

To order the WP201-HPS-70W-DT pick up your phone and dial our toll-free number @ 800-839-4734. To get more information, cut sheets or quotes please email our sales staff.

Key Features

• HX-HPF ballast rated at -30°C (-22°F)
• CSA Approved for Wet Locations
• 70 watt B17 HPS lamp included
• Completely watertight and weatherproof
• Light shipping weight
• Buy America option available

Electrical Specification

• Single - 120VAC
• Double-tap - 120/277VAC
• Multi-tap - 120/208/240/277VAC

Mounting Options

• Post top fitter (2-1/3" to 3-1/2")
• Ground stake with wiring compartment (1/2" hub)

Options

Please call 800-839-4734 to ensure option availability.

Photocontrol Photocell - adds a sunrise/sunset detector that automatically turns the unit on and off, ideal for maintenance-free energy savings. Select 120V or 208-277V photocontrol.

Spot Reflector - replaces the standard wide-angle reflector for a more focused and intense beam.

Wire Guard - puts a protective aluminum 'cage' around the lens.

Glare Shield - barndoor-style adjustable shield for reducing light pollution and accidental blinding.

Polycarbonate Guard - Extra waterproof protection for your lens.

Buy America - selecting this option ensures your light was manufactured by American workers and supports US business.
