10W LED Wall Pack

10W LED Wall Pack

THIS ITEM HAS BEEN DISCONTINUED. CONTACT US FOR A SUITABLE REPLACEMENT.



Overview

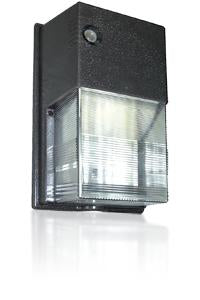

Our 10W LED wall packs put out a bright lighting in a weather-resistant polycarbonate housing that will last up to five years in the harshest conditions.

LED lights inside the waterproof cabinet consume only 10W of electricity and have a reflector that angles the fixtures lighting cone for maximum illumination.  LEDs last for a long time, and have an engine that leaves almost no carbon footprint, making them RoHS compliant.

Another advantage to this compact, energy-efficient luminary is that it is fully enclosed to prevent water or weather damage to the circuits or LEDs inside.

Key Features

  • LEDs use only 10W of electricity at all times
  • UL Listed for wet locations across the U.S.
  • Can withstand prolonged cold weather as low as -22° F
  • RoHS compliant
  • Evaluated in accordance with LM-79 and LM-80 documents
  • 5-year warranty
  • Buy America Certificate

Applications

These polycarbonate wall packs mount to any 4" junction box, or you can mount them on the wall and feed a waterproof electrical conduit into the 1/2" NPT conduit points. Great outdoor luminaries for schools, office buildings, light industrial and recreational centers.

All of our LED lighting is given the RoHS seal of approval because they use no lead, cadmium, mercury and other dangerous, carcinogenic materials in their construction. An ideal light for areas where developing children may be present.

External Specification

A precision molded, clear polycarbonate cover protects the LED array inside. It snaps into the die-cast aluminum housing which provides heat dissipation to the LED engine.

They have 1/2" conduit entry points at the bottom for surface mounts and conduit points in back for attachment to any 4" j-box.

Internal Specification

The 10 watt LED lighting module is rated to last over 50,000 hours of continuous use. LED engine and drivers are mounted to the aluminum backplate which acts as a heat sink to optimize thermal management. Moving heat away from the module ensures they will last the prescribed 50,000 hours.

These units have a standard 'PC1' 120V photocontrol photosensor which automatically activates the light after sunset and deactivates the lamp at sunrise.

Electrical Specification

      • Operates at a a range of 120-277V, 50/60Hz
      • Auto-ranging voltage controlled circuit
      • Two (2) wire input

Warranty

5-year warranty

Options

Photocontrol Photocell - Select 'PC2' for 208-277V photo control at checkout.
