Light Fixture - DLC / LED / VANDAL RESISTANT VAPOR TIGHT

Overview

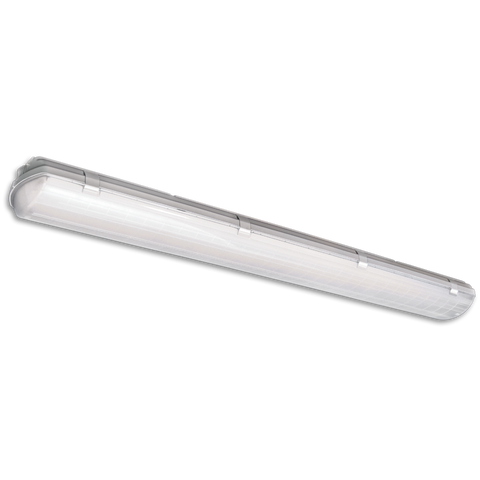

We proudly present Illumina® BS100LED the industry’s leading linear LED vapor tight. Its vandal resistance and IP66 rating make the BS100LED the #1 choice for specifiers and distributors.

The BS100LED is an evolution of our standard linear fluorescent BS100 model, featuring the same housing and tool-less design upgraded! The BS100LED uses high-performance LED boards, with 0-10V dimming as standard. The BS100LED is IP66/wet location and sanitation compliant, featuring 12 different mounting systems for ease of specification and installation.

The BS100LED is CSA listed and certified, available in 3000K, 4000K & 5000K color temperatures as standard.

The BS100LED has been designed to save you energy and time. By maximizing lumen output, decreasing overall consumption and reducing the number of luminaires to be installed & maintained, we’ve essentially increased your ROI.

The LO and HO BS100LED models are stock items, all other models are “built to order” at our Beghelli USA facility.

The ILLUMINA® BS100LED is corrosion, flame and vandal resistant.

HOUSING: 100% UV stabilized polycarbonate, liquid silicone perimeter gasket with memory retention.

DIFFUSER: Frosted UV-stabilized polycarbonate diffuser, for even light distribution and color stabilization.

OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)

POWER FACTOR: Power Factor > 0.95

TOTAL HARMONIC DISTORTION (THD): < 20%
