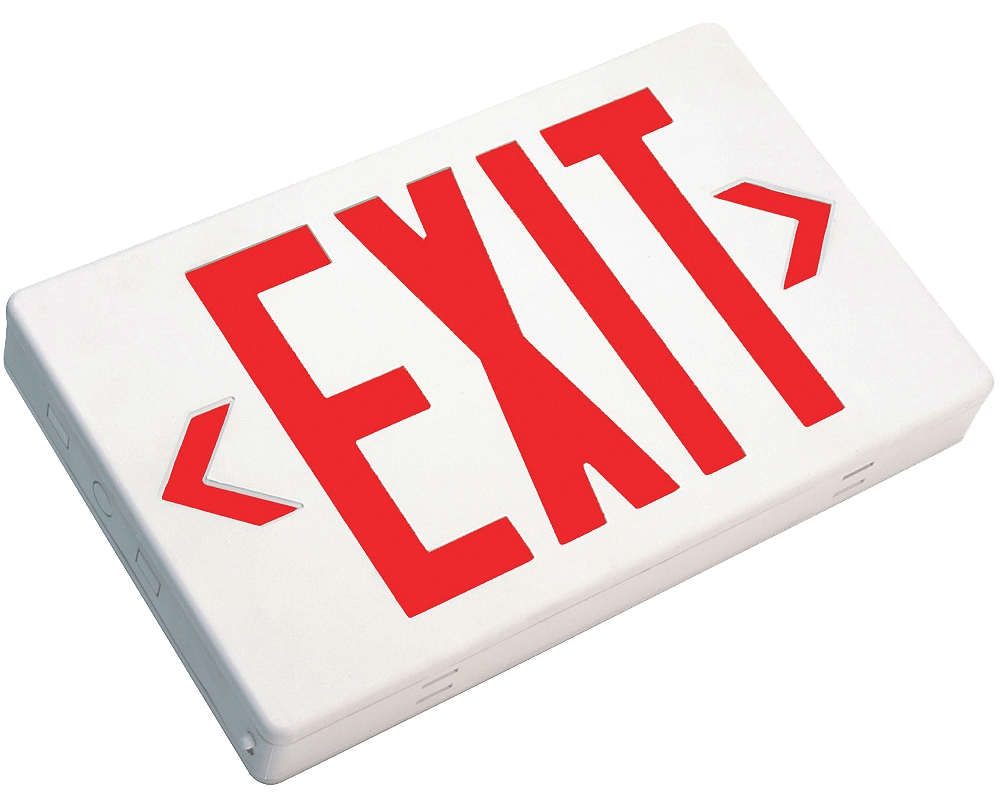

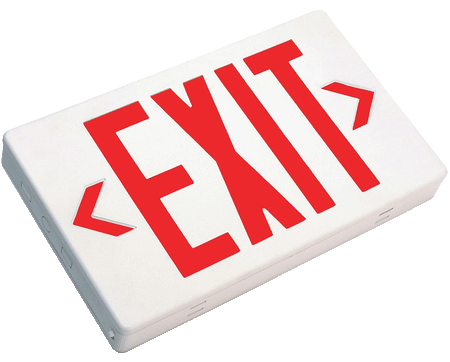

CEMXTE Thermoplastic Exit Sign – Red Letter Color

The CEMXTE Thermoplastic Exit Sign provides long-lasting, energy-efficient LED illumination in a rugged 5 VA flame-retardant housing. Remote-capable circuitry, intelligent battery monitoring, and EZ-snap mounting make installation easy while ensuring reliable code compliance.

Illumination

• Ultra-bright, long-life LEDs — field-selectable in red or green legends

Electrical

• Dual 120/277 VAC input (optional 120/230 VAC SPV version)
• Bi-color status LED (green = normal, red = check battery) with push-to-test button
• 3.6 V maintenance-free Ni-Cd battery with 5.5 W remote-head capacity
• Solid-state transfer switch for ≥ 90-minute emergency runtime
• Two-rate charger fully recharges the battery within 24 hours

Mounting

• EZ-snap thermoplastic canopy for top or end mount
• Universal knockout pattern on back plate for wall mount

Housing

• Injection-molded, 5 VA flame-retardant, high-impact thermoplastic in white or black
• Snap-out chevron directional indicators for easy field selection

Options

• SPV — special-voltage (120/230 VAC) version
• SDT — self-diagnostic testing (monthly, bi-annual, annual; 120–277 VAC)

Warranty / Listings

• 5-year full warranty; battery prorated for 5 years
• UL Listed for damp locations (0 °C – 40 °C)
• Complies with UL 924, NFPA 101, NEC, OSHA, and CEC Title 20
