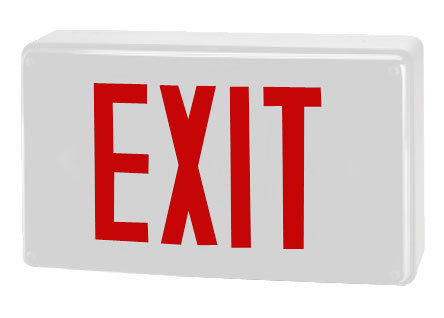

Exit Sign, Vandal Proof - Red LED - White Housing - NEMA 4X
Couldn't load pickup availability
Overview
When you are looking for an exit sign, red letters can make a big impact. Aside from being easier to see, red illumination on a sign is visually appealing to passersby. Emergency Lights’ Vandal Proof LED Exit Sign with Red Letters keeps you in compliance with fire and building codes while still maintaining the charm of your commercial business.
Use in Any Location
As with our other VANDAL series products, this exit sign is great for use in virtually any location thanks to its tamper-proof construction and heavy-duty cast aluminum composition. Able to hold up in either wet or dry locations, this sign features a clear polycarbonate faceplate and flush mount installation.
All of our VANDAL products are designed for use in areas with heavy traffic and in areas where there are frequently harsh conditions. The series is UL 942 for the US and has an IP66 rating. This sign is so durable, it can also be installed outdoors.
Durable Exit Sign, Red Letters, Many Options
While the standard features such as backup cadmium battery, long-lasting life, and LED technology of this exit sign are substantial, Emergency Lights Co. gives you the opportunity to add even more features to your exit.
If you are installing signage in an outdoor location with below freezing temperatures, you will want to preserve the life of your battery by additionally purchasing a battery heater. Other add-on features you may want to consider investing in are different types of alarm and an infrared remote switch test.
Save time and money by investing in an exit sign from Emergency Lights Co.
Features
- Vandal proof cast aluminum construction
- Weatherproof - IP66 Wet Location Rated
- Efficient - LED technology consumes less than 5 watts electricity
- 90 minute Ni-Cad emergency battery backup
- Long-lasting - 8 to 10 year EXIT sign solution
- UL924 Listed for the United States
- 5 year warranty
Application
The VANDAL Series is designed for high abuse areas, wet locations, and any other project where durability is a requirement. The IP66 rating allows the VANDAL Series to be installed into wet locations, including environments where temperatures reach freezing (less than 32__F). This model can be installed indoors or oudoors by the top, side, or back of the unit. The housing is sealed to prevent any element from entering the unit. For freezing temperature applications be sure to purchase the battery heater option.
External Specifications
The body of the VANDAL series is constructed from .420" thick, heavy-duty cast aluminum. The clear, thick polycarbonate faceplate is recessed into the housing to create a seamless look and vandal resistant design. Tamper resistant Torx screws increase protection from vandalism and securely install the exit sign. This vandal proof exit sign can be ordered to be single or double sided. The mounting can be designated as wall, ceiling, or end when ordering. It can also come "universal" so the mounting type can be configured in the field. This is wet location exit sign can be placed virtually anywhere.
Internal Specifications
Green LEDs provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features nickel cadmium battery pack that lasts a minimum 90 minutes. Internal battery heater is available for low temperature locations._
Auto-Test Diagnostics
The VANDAL Series comes standard with auto-test diagnostics which continually monitor the functionality of the exit sign at all times._This option eliminates the testing requirements associated with conventional exit signs. The auto-test components continually monitor the function operation of the unit, including the lamps, battery, transformer, and circuit board. A display of LED lights in different colors and blinking patterns provides a visual alert of any operational problems to those in charge of maintaining the units.
Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.
Code Compliance
IP66 Wet Location Rated. UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Warranty
Five-year warranty on parts, five-year prorated warranty on battery.
Maintenance Profile
The monthly and yearly testing of the battery backup system is eliminated from the standard auto-test diagnostics. The nickel cadmium exit sign battery is replaceable when its useful lifespan is over (5-7 years).
Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).
Options
Internal Battery Heater_- For areas that experience freezing temperatures, the internal battery heater option will allow the exit sign and its battery backup system to function properly even when temperatures drop below 32 F.
Flashing Alarm_- Choosing this option will make the exit sign constantly flash when put into emergency mode.
Audible Alarm_- Choosing this option will make the exit sign loudly buzz when put into emergency mode.
Infrared Remote Test Switch_- The face of the VANDAL Series can be changed from "EXIT" to a wording or pictogram design of your choosing.
Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable. Auto-test diagnostics are a state of the art way to eliminate maintenance and testing requirements of standard LED exit signs.
Appeal
This vandal proof exit sign is durable and rugged. Rated for wet locations, the weatherproof construction of this cast aluminum exit sign is offered in colors of black or white.
Overall Value
Extremely durable, suitable for all weather environments, capable of receiving high levels of abuse - offered at a whole sale price.
Installation
This wet location exit sign is suitable for surface (wall) installation. This model is suitable for indoor/oudoor and wet location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections. Designate mounting when ordering or use "universal" mounting plate.
