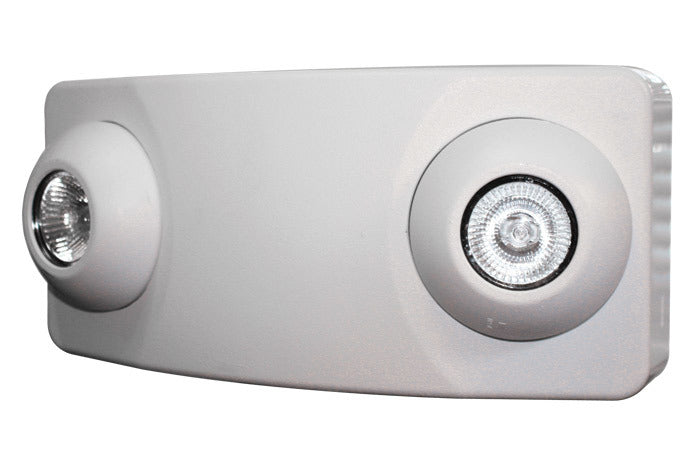

Emergency Light, White - Low Profile with MR16 Lamps
Couldn't load pickup availability
Item discontinued by the manufacturer. Please contact support for any suggested replacements
Overview
The TEL-MR16-H-W provides superior emergency lighting illumination with the use of powerful yet compact halogen MR16 lamps. This MR16 emergency light is constructed of impact resistant white thermoplastic to withstand abuse and corrosion. With a sealed lead acid battery backup system and push-to-test button, this emergency light is constructed as a dependable emergency lighting source for your indoor application.
MR16 emergency lights are ideal for all types of indoor applications, such as office, retail, and commercial residential. A 90 minute battery backup system provides reliable and long-lasting emergency illumination. The TEL-MR16-H-W has an expected product lifespan of at least 10 years. The UL 924 Listing insures compliance and this emergency light also comes with a five year warranty. The snap-together design allows for easy installation and maintenance.
Features
- Halogen MR16 lamps are attractive and powerful
- Low profile design blends well with high end interiors
- Push-to-test button with LED charging indicator
- Also available in black housing
- UL924 Listed for the United States
- 5 year warranty
Application
This emergency light is perfect for retail, office, and other commercial applications. Plastic emergency lights are affordable, durable, and easy to maintain. Purchase this model today and be compliant for years to come. All instructions and necessary installation hardware are included.
External Specifications
The thermoplastic housing of this emergency light is corrosion and flame resistant. The housing is suitable for indoor use and is damp located rated. The emergency light can also come with a black finish for dark interiors. The front of the emergency light easily snaps to the back-plate to allow for easy maintenance and battery testing procedures.
Internal Specifications
High output halogen MR16 lamps and a specially designed refractory lens assembly provides glare-free light distribution. Lamp Type: Halogen - gyroscopic. Lamp Rating: 6 volts, 5.0 watts. Lamp Life: 100 hours (expected average).
Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v.
Code Compliance
UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Warranty
Five-year warranty on parts, five-year prorated warranty on battery.
Maintenance Profile
The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The emergency lamps are replaceable if broken or burnt out.
Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan)
Options
Self- testing - The unit can come with self-diagnostic testing that eliminates monthly and yearly testing of the battery backup system and alerts the user to any problems regarding operational functionality of the unit.
Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Durability
Thermoplastic emergency lights are durable and suitable for indoor use. They are not intended to be used oudoors or in wet locations.
Appeal
Halogen lamps create a compact look and the housing’s rounded edges blend well with most interiors. Also available with black housing.
Value
This model offers an attractive look combined with an equally attractive price.
Installation
This emergency light is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
