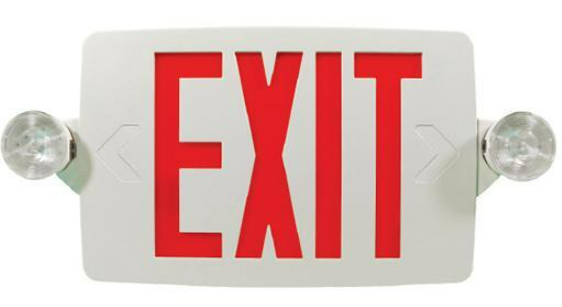

QCRT Series Thin Thermoplastic Combo

The thin QCRT combination exit/emergency unit combines LED exit
signage with fully adjustable, round LED lamp heads. This economical
design offers long-life, dependable service in multiple field-selectable
configurations and matches the QXT exit sign. The QCRT easily
mounts above doors and in restricted spaces to fit any application. A
snap-in canopy is included for easy top mount installations. Each unit
ships with an extra stencil face for single- or double-face applications.

FEATURES & BENEFITS
• Universal field-selectable single-/double-face
•Easy snap-out, field-selectable chevrons
•Two (2) 1.1W fully adjustable round heads with long-lasting highintensity LED lamps
•Suitable for Damp Locations
• California Energy Commission (CEC) Title 20 Compliant

SPECIFICATIONS
Illumination: Legend: Long-life, high-intensity LEDs
Lamps: Two (2) fully adjustable long-life, highintensity LED lamp heads, 1.1W per head
Housing: Injection-molded UL 94 5VA flame-retardant highimpact resistant thermoplastic enclosure
Electrical Input: 120/277VAC Dual primary, 60Hz
Battery: Maintenance-free 3.6V NiCad battery
Operating Temp: 0°C to 50°C (32°F to 122°F)
Run Time: 90 Minute emergency run time, 24 hour recharge time
Legend: Fully illuminated 6" characters with 3/4" stroke
Mounting: Ceiling or wall mount
Finish: White
Certifications: UL 924 Listed for Damp Locations
Meets NFPA 101 Life Safety Code, NEC, OSHA
California Energy Commission (CEC) Title 20 Compliant
Warranty: Any component that fails due to a manufacturing
defect is guaranteed for five years with a separate
five year prorated battery warranty. The warranty
does not cover physical damage, abuse or
instances of uncontrollable natural forces. See
the full Exitronix warranty document for detailed
information. (Terms and conditions apply)
