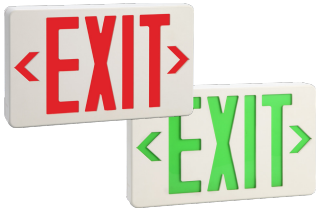

Thermoplastic LED EXIT Sign - Red Letters - Damp Rated

Attractive and easy to install, the VEX Series combines
contemporary styling with quality LED illumination. Includes covers
for both single- and double-face configurations.

FEATURES & BENEFITS
• Rugged, injection-molded UL 94 5VA flame-retardant, high-temperature
thermoplastic housing
• Universal single- or double-face
•Simple, snap-together design
•Field-selectable directional chevron knockouts
• California Energy Commission (CEC) compliant

SPECIFICATIONS
Illumination: Long-life, high-intensity, red or green LEDs
Housing: UL 94 5VA flame-retardant, high-temperature
thermoplastic housing
Input: 120/277VAC dual primary, 60Hz
Battery: Maintenance-free NiCad battery
Operating Temp: 10°C to 40°C (50°F to 104°F)
Run Time: UL Listed 90 minute emergency run time, 24
hour recharge time
Legend: Fully-illuminated 6” characters with 3/4” stroke
and field-selectable directional chevrons
Mounting: Ceiling, end or wall mounted, canopy included
Finishes: Black or White
Certifications: UL Listed for Damp Locations and meets or
exceeds the following: NEC requirements and
NFPA 101. California Energy Commission
(CEC) compliant
Warranty: Any component that fails due to a
manufacturing defect is guaranteed for five
years with a separate three year prorated
warranty on the battery. The warranty does not
cover physical damage, abuse or instances
of uncontrollable natural forces. See the full
Exitronix warranty document for detailed
information. (Terms and Conditions apply)
