Die-Cast Aluminum Exit Sign Combo with LED Emergency Heads

Die-Cast Aluminum Exit Sign Combo - Dual 3W Heads, Red/Green Legend, Ni-Cd / 90 min, 120/277V, UL 924 Damp Location - Features & Specs

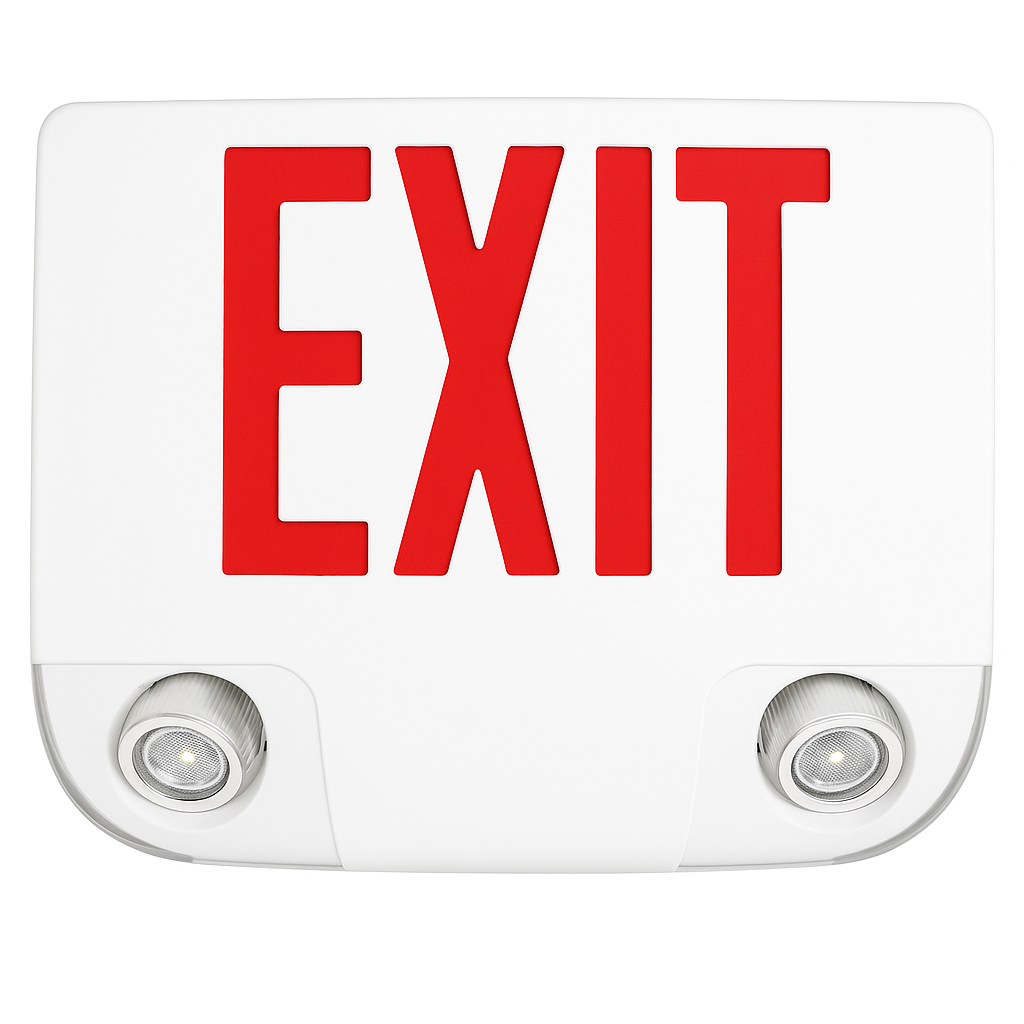

The 400C Die-Cast Aluminum LED Exit & Emergency Combo delivers dependable egress lighting and bold exit signage in a compact, architectural housing. Built for commercial interiors, it features two 3 W adjustable LED emergency light heads, a 90-minute battery backup, and is UL 924 listed for use in damp locations. This exit sign with emergency lights offers universal mounting and concealed directional chevrons for quick, clean, and code-compliant installation.

Key Features

• UL 924 listed; damp location rated (0–40 °C)
• Architectural die-cast aluminum housing (finishes: BA / BB / BL / WW)
• EXIT legend: red or green LEDs for high visibility
• Dual adjustable 3 W LED emergency heads with clear optics
• Universal mount: wall, end, or ceiling; universal canopy included
• Maintenance-free Ni-Cd battery; 90 min emergency runtime; ~24 h full recharge
• Electrical: 120/277 VAC, push-to-test, charge-status LED, solid-state transfer, brown-out protection
• Concealed chevron knockouts for field-selectable direction
• Compact profile for clean installs (12.5" W × 11.0" H × 2.1" D)
• Pendant mounting via accessories (VEPA adapter with ER1/ER2 kit); supports conduit entry
• Meets NFPA 101 and NEC; CEC compliant
• Warranty: 5-year electronics/housing; battery 5-year prorated

Download Exit & Emergency Combo Spec Sheet (PDF)

Illumination

• Ultra-bright, energy-efficient red LED EXIT legend or green LED EXIT legend for maximum visibility
• Includes two 3 W adjustable LED emergency heads with clear optics for targeted illumination
• Designed to meet UL 924 photometric performance standards for safety and compliance
• Ideal for modern commercial spaces that require a reliable exit sign with emergency lights

Electrical

• Universal 120/277 VAC input, 60 Hz operation
• Maintenance-free Ni-Cd battery provides 90 minutes of emergency runtime
• Solid-state transfer and brown-out circuit protection
• Push-to-test button and LED charge-status indicator
• Fully recharges battery within 24 hours

Mounting

• Field-selectable for wall, end, or ceiling mount; universal canopy included
• Concealed chevron knockouts let you customize directional arrows to fit your space
• Supports conduit entry; pendant mounting via accessories (VEPA + ER1/ER2)

Housing

• Precision die-cast aluminum exit combo unit body with corrosion-resistant finish
• Soft-cornered design for a clean architectural appearance

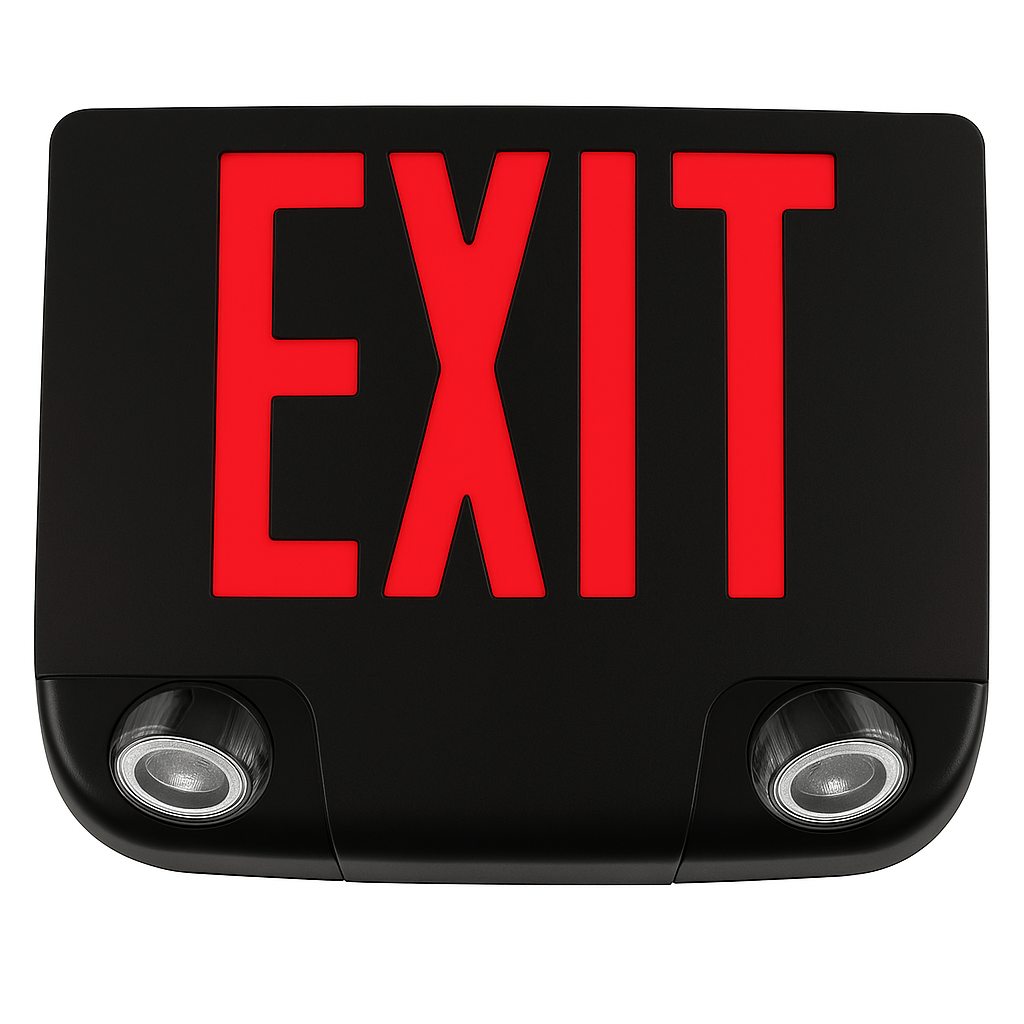

• Available finishes: brushed aluminum (BA), black (BB/BL), or white (WW)

Dimensions

• 12.5 in W × 11.0 in H × 2.1 in D (see spec sheet for detailed diagram)

Warranty / Listings

• 5-year warranty on housing and electronics; battery prorated 5 years
• UL 924 listed for damp locations (0 °C – 40 °C)
• Meets NFPA 101 and NEC; CEC compliant

Frequently Asked Questions

Is the 400C combo fixture suitable for use in damp locations?

Yes. The 400C series is UL 924 listed for use in damp locations with ambient temperatures from 0 °C to 40 °C.

Can this fixture be mounted on the ceiling?

Absolutely. The 400C includes a universal canopy and is field-selectable for ceiling, end, or wall mounting.

What type of battery is included in the 400C unit?

A maintenance-free nickel-cadmium (Ni-Cd) battery powers the fixture for a minimum of 90 minutes during an outage.

Are directional arrows included with the sign?

Yes. Knock-out chevrons are concealed behind the faceplate and can be easily removed to indicate direction.

What finish options are available?

The 400C combo comes in brushed aluminum (BA), black (BB or BL), or white (WW) powder-coat finishes.
