Self-Testing Exit Sign Lights

These self-testing (self-diagnostic) exit sign + emergency light combos pair an LED EXIT legend and dual adjustable heads on one shared backup system—ideal above doors and decision points. Need a different format? Compare standalone self-testing emergency lights and self-testing exit signs (sign-only), or browse our full combo catalog. For weather exposure, see weatherproof self-testing combos.

EXIT + Lamp Heads Auto Diagnostics Dual-Load Battery Door-Height Coverage Remote-Capable (select) Wet/Damp Options
Buyers Guide Tips

What to Look for in Self-Testing Exit Sign & Light Combos

  • Doorway coverage: Center the combo over the egress door; aim heads to overlap light on the landing and first tread. Use field chevrons (none/left/right/double) for clear turn cues.
  • Shared power budget (90 min): One battery powers the legend and both heads. Verify the unit’s rated watts at 90 minutes; add margin for temperature and any remotes (only if the model is remote-capable).
  • Self-diagnostics: Status LED patterns flag battery/charger/lamp issues; monthly (~30 s) and annual (90-min) tests run automatically so walk-throughs become quick visual checks.
  • Mounting & faces: Low-profile canopy for wall/ceiling; single face at doors, double face at intersections; apply chevrons after alignment for a clean bond.
  • Environment & city models: Choose wet-location/IP/NEMA variants for exterior canopies or wash-down areas; confirm NYC 8″ red letters or Chicago specifics where required.

A self-testing exit sign & light combo uses a single controller to exercise the EXIT legend and both lamp heads together, logging faults by load so service techs can target issues quickly. During outages, one battery powers both functions for the full 90-minute requirement.

Plan for door-height coverage: combos secure the threshold, but long corridors or tall spaces often need added fixtures or supervised remotes to meet photometric targets. Confirm mounting clearances, head aim, and indicator visibility at the installed height.

💡 Tip: When in doubt, model doorway coverage first—then add units outward along the path of egress to hit targets with fewer surprises.

Related option: If you don’t need built-in lamp heads, consider self-testing exit signs (sign-only) for a slimmer profile and dedicated signage.

Self Testing Exit Signs with Lights Combo Collection
Trust & Policies

Filters

Related Categories

Clear all

12 Products

Self-Testing Exit Light Combos - LED legend + dual heads, shared battery - Features & Specs

  • Unified self-test: One controller exercises the EXIT legend and both lamp heads on the monthly/annual cadence, logging faults by load (legend/head/remote) for faster troubleshooting.
  • Door-height coverage: Combos mark the exit and light the threshold; for long corridors or tall spaces, add supervised remotes—see remote-capable exit sign & light combos—to meet photometric targets.
  • Dual-load battery system: Specify Ni-Cd or lithium capacity for 90-minute operation of legend + heads; verify recharge time and low-temperature options for exterior entrances.

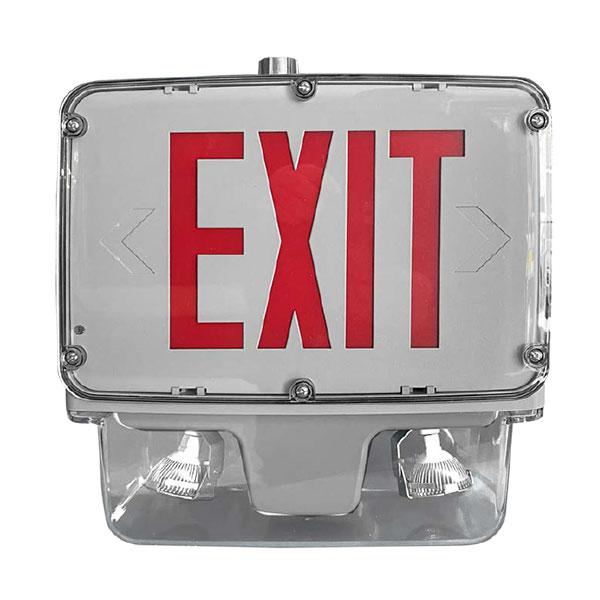

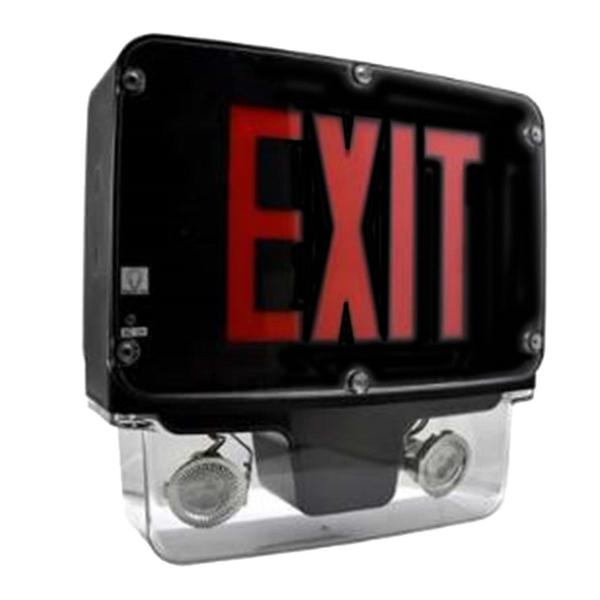

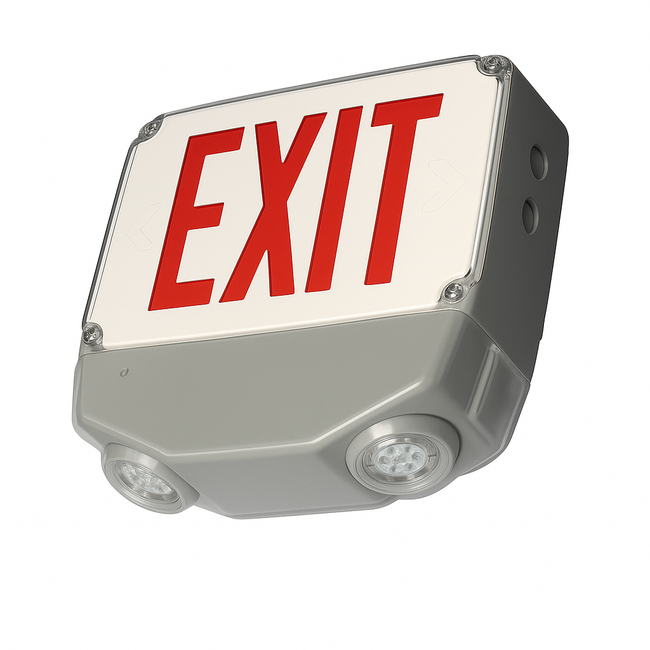

  • Environment & sealing: Use wet-location exit sign & light combos where moisture is present; confirm enclosure rating and corrosion resistance for the site.

FAQs About Self-Testing Exit Sign & Light Combos

If a lamp head fails, how does a self-testing exit sign & light combo report it?

The controller treats the exit sign & light combo as multiple supervised loads. A lamp-head fault is indicated even if the EXIT legend passes; the combo remains not-ready until the head is serviced.

During the 90-minute self-test, do the combo’s lamp heads run the entire time?

Yes—the full discharge powers the EXIT legend and both lamp heads for the entire 90 minutes to validate the combo’s battery capacity.

How should I plan coverage with door-height self-testing exit sign & light combos?

Exit sign & light combos mark the doorway and light the threshold. For long corridors, large rooms, or high ceilings, add additional combos or supervised remote heads to meet photometric targets along the path of egress.
