High Lumen Exit Sign Combos

High-lumen exit sign & light combos (often searched as an exit light combo, combo exit sign, or a combination exit and emergency light) pair a full-size LED EXIT legend with HL high-output emergency heads (higher head wattage / more LEDs for wider doorway coverage — model dependent) so one fixture both marks the door and lights the approach—simplifying wiring, spacing, and inspections while delivering 90-minute emergency backup (model dependent). Explore all exit sign & emergency light combos, or add automated checks with self-testing exit sign combos.

Exit Light Combo Unit HL High-Output Heads Doorway + First Segment Shared 90-Min Backup Single / Double-Face Field Arrows (chevrons)
Buyers Guide Tips

High-Lumen Exit Light Combos - what to check before you buy - Features & Specs

  • Shared-load sizing: Add EXIT legend load to both lamp-head wattages; choose a battery package that sustains the total for 90 minutes with margin for temperature and aging.
  • Door-height photometrics: Mount above the door, set chevrons, and aim HL high-output heads to wash the landing and first corridor segment; verify spacing at installed height.
  • Legend visibility & faces: Specify 6-inch red/green letters with even illumination; pick single- or double-face to cover approach paths and keep sightlines clear at intersections.
  • HL vs remote heads (important): On some models, high-output (HL) configurations can’t be combined with remote-head output (RC). If you need remotes, select RC; if you need brighter on-board heads, select HL (verify per model).
  • Install & inspections: One fixture simplifies wiring and testing; place the indicator/test where it’s visible from floor level and consider self-testing to streamline monthly/annual checks.

Mount high-lumen exit sign & light combos above doorways so the EXIT legend is clear on approach and the high-output heads wash the landing and first corridor segment. Set chevrons, aim heads to avoid glare into occupant eyes, and confirm installed-height spacing still meets code at the 90-minute point—especially in wide lobbies and high-ceiling foyers.

Size the shared battery for the combined load (legend + both heads), verify recharge time, and place the indicator/test for floor-level visibility to streamline inspections. For extended runs beyond the doorway pool, supplement farther down the path with high-lumen emergency lights to maintain uniform coverage without adding a second sign.

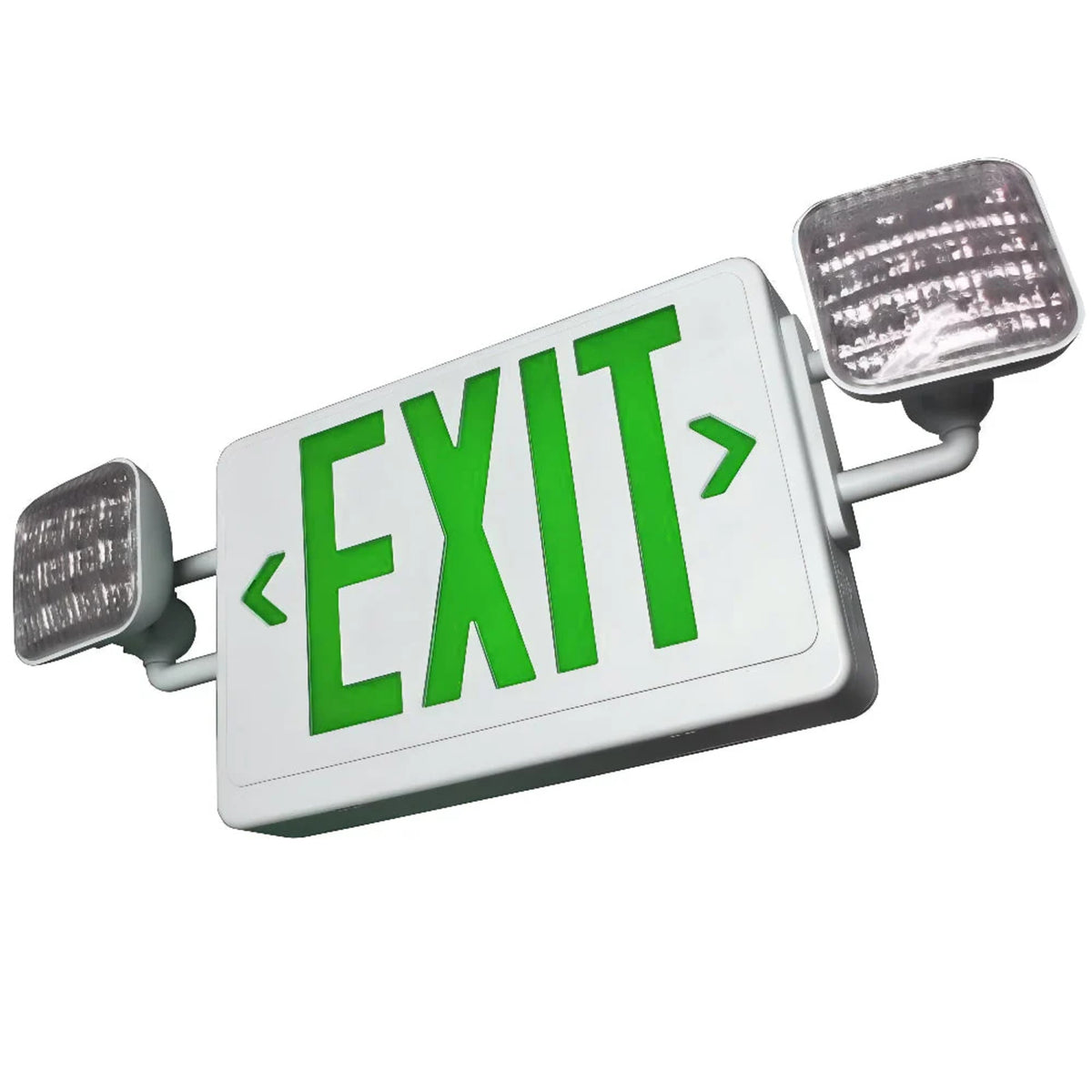

High Lumen Exit Signs with Lights Combo Collection
Trust & Policies

Filters

Related Categories

Clear all

4 Products

High-Lumen Exit Sign & Light Combos - high-output heads, shared 90-min backup - Features & Specs

High-lumen exit sign combo guide showing doorway coverage, shared-load sizing, face/chevron selection, and mounting/options.
  • Exit light combo design: Full-size LED EXIT legend plus HL high-output emergency heads (higher head wattage / more LEDs — model dependent) in one fixture—mark the door and light the approach.
  • Shared battery (90 min): One pack drives the legend and both heads for the full duration; confirm load tables, recharge time, and ambient rating for your space and mounting height.
  • Legend & faces: 6-inch red/green letters; specify single- or double-face and set field-selectable chevrons to match the egress route at install.
  • Doorway photometrics: Above-door mounting with adjustable heads to wash the landing and first corridor segment; verify spacing at installed height at the 90-minute point.
  • HL vs remote heads: On some models, HL (high-output) can’t be combined with RC (remote-capable). Verify options on the specific model before ordering.
  • Install & inspections: Universal wall/ceiling/end mounting hardware (model dependent); floor-visible indicator and push-to-test; self-testing options available on select units.

FAQs About High-Lumen Exit Light Combo Units

What is an exit light combo?

An exit light combo (also called a combo exit sign or combination exit and emergency light) is a single fixture that provides an illuminated EXIT legend and emergency light heads that turn on during a power loss.

Can a high-lumen combo replace separate sign + light fixtures at an exit?

Often, yes. A combo mounted above the door can mark the exit with a full-size LED legend and light the landing/first corridor segment with high-output heads—reducing devices and simplifying wiring and inspections.

How do I size the battery for the legend and high-output heads?

Sum the EXIT legend load and both lamp-head wattages, then choose a package rated to run the total for 90 minutes with margin for ambient temperature and battery aging. Verify recharge time meets your maintenance window.

Will the heads cover a wide lobby from door height?

High-output heads extend the doorway pool, but wide lobbies may still need additional fixtures down the path. Aim to wash the landing and first corridor segment, then supplement farther out with standalone high-lumen emergency lights if needed.

Can I use remote heads with the high-lumen (HL) option?

Sometimes you must choose one. On some models, high-output (HL) configurations can’t be combined with remote-head output (RC). If you need remote heads, select a remote-capable (RC) unit; if you need brighter on-board heads, select HL—then confirm options on the specific model.

Single- or double-face for combos?

Use single-face where the sign is viewed from one approach; choose double-face at intersections or open areas so the legend is visible from both directions. Set field-selectable chevrons during install to match the route.
