Wall Pack Lights

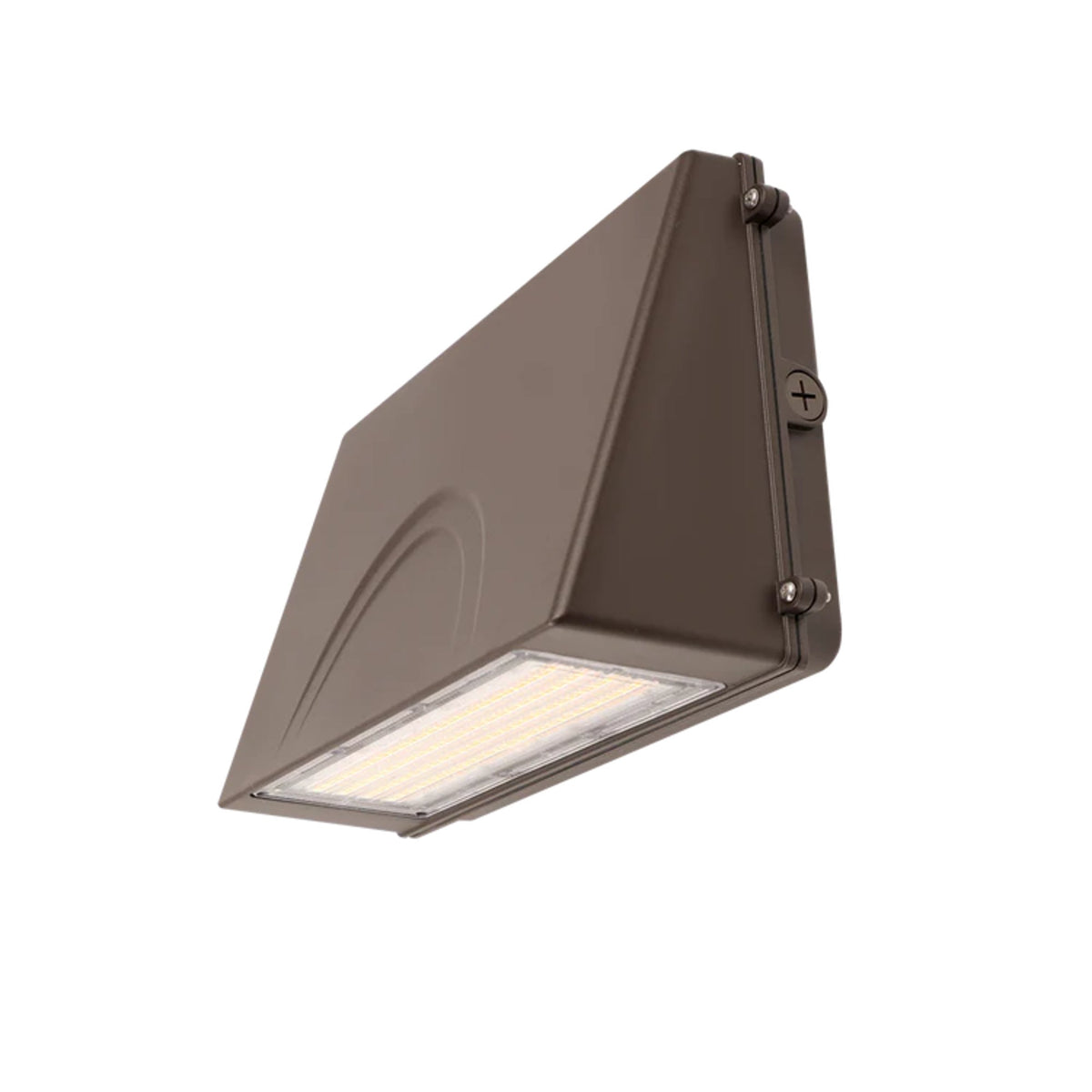

Wall pack lights are rugged, wall-mounted LED fixtures designed to illuminate outdoor areas like building perimeters, walkways, loading docks, entrances, and parking edges. Built for harsh environments, these outdoor wall packs commonly feature die-cast aluminum housings, sealed gaskets, and impact-resistant lenses for long-lasting performance in wet-location installs. Explore more in our outdoor lighting collection.

Full Cutoff / Dark‑Sky Options Dusk‑to‑Dawn Photocell Options Motion Sensor Options Wet Location / IP‑Rated Options DLC Listed Options UL 924 Battery Backup Options
Buyers Guide Tips

What to Look for in Wall Pack Lights

  • Distribution & glare control: Choose full-cutoff, semi-cutoff, forward throw, or adjustable; review BUG ratings and use shields where needed to control spill and light trespass.
  • Lumen package & mounting height: Match output to mounting height and target foot-candles along doors, stairs, walkways, and service areas; verify with photometrics when layouts matter.
  • Controls: Photocell (dusk-to-dawn), motion sensor, and 0–10V dimming options; confirm compatibility with site controls and desired behavior (bi-level/standby).
  • CCT & CRI: Select fixed or field-selectable CCT (e.g., 3000–5000K) and adequate CRI for cameras and wayfinding; consider warmer CCT near residences.
  • Environment: Verify wet-location rating, IP65/66 where required, operating temperature, surge protection, and corrosion resistance for coastal/industrial sites.
  • Power & wiring: Driver voltage (120–277 / 347–480V where needed), field-selectable wattage (if available), proper conduit entries, and gaskets/sealing.
  • Construction: Die-cast aluminum housing, powder-coat finish, impact-resistant lens (glass or polycarbonate), and vandal-resistant hardware for high-abuse areas.
  • Listings & rebates: DLC listing for incentives (where applicable), FCC compliance, and documented warranty terms/exclusions.
  • Emergency egress option (select models): If you need backup illumination during outages, choose a model with UL 924 battery backup and verify a full 90-minute runtime.

Choose from full-cutoff (dark-sky friendly), semi-cutoff, forward-throw, adjustable, and architectural wall pack designs to balance reach, uniformity, and glare control. Modern LED wall pack lights typically reduce maintenance and energy use versus older HID systems while providing instant-on performance and consistent outdoor illumination.

Many models include dusk-to-dawn photocells, motion sensors, and field-selectable wattage and color temperature to match site needs and reduce wasted light during low-traffic hours.

Need code-driven backup lighting outdoors? Select battery-backup wall pack lights (where available) that operate as normal exterior lighting on line power and switch to emergency mode during outages for a full 90 minutes when UL 924 is required.

💡 Need emergency egress lighting outdoors? Choose a UL 924 battery-backup wall pack (select models). During a power failure, it automatically switches from normal exterior lighting to emergency operation to help maintain visibility at doors, stairs, and exterior egress paths.

*Features, listings, and warranty length vary by model; see individual product pages for exact specifications.

Wall Packs Collection
Trust & Policies

Filters

Related Categories

Clear all

13 Products

Wall Pack Lights – Spec Guide

Wall pack lights spec guide infographic: quick sizing and spacing starting points, optics and glare types (full cutoff, semi-cutoff, forward throw, adjustable), and a wall pack spec checklist including controls, environment ratings, power and wiring, listings, and emergency options.
Wall pack sizing, optics & spec checklist at a glance (verify with photometrics/IES files).

Quick Sizing & Spacing (Starting Points)

Use these ballparks to shortlist fixtures, then confirm with photometrics for your site.

Common application Mounting height Starter lumen class Spacing rule of thumb Optic tip
Doorways / entries 10–12 ft ~2,000–3,000 lm ~1.0–1.25× height Full cutoff to reduce glare at eye level
Perimeter walkways / façades 12–16 ft Choose by distribution + uniformity Start ~1.2–1.5× height Type II/III often works best on building faces
Loading docks / wide aprons 16–20 ft Mid/high package; verify with IES ~1.25–1.75× height Type IV (forward throw) for yard-side reach

Next step: Validate with our HID→LED sizing guide and layout & photometric guide.

  • Distribution & glare control: Choose full-cutoff, semi-cutoff, forward throw, or adjustable; review BUG ratings, uplight limits, and shielding needs for light trespass/dark-sky goals.
  • Lumen package & height: Match output to mounting height and target foot-candles; use layouts to avoid dark spots along paths, doors, and façades.
  • Controls: Dusk-to-dawn photocell, motion sensor, and 0–10V dimming compatibility; confirm control voltage and standby/bi-level behavior if used.
  • CCT & CRI: Select fixed or field-selectable CCT (e.g., 3000–5000K) and adequate CRI for cameras and wayfinding; consider warmer CCT near residences.
  • Environment & durability: Wet-location rating, IP65/66 where required, operating temperature range, surge suppression, and corrosion resistance (powder-coat, marine/coastal options).
  • Construction: Die-cast aluminum housing, impact-resistant lens (tempered glass or polycarbonate), gaskets, and vandal-resistant hardware where needed.
  • Power & wiring: Driver voltage (120–277 or 347–480V), field-selectable wattage if required, proper conduit entries/gaskets, and disconnects for safe servicing.
  • Listings & rebates: DLC listing (Standard/Premium) for utility incentives, FCC compliance, and documented warranty terms and exclusions.
  • Emergency egress option (select models): For battery-backup versions, confirm UL 924 listing and a full 90-minute runtime; verify placement and photometrics at doors/paths.
  • Maintenance: Tool-less entry or hinged doors, captive screws, and clear labeling to speed installation and PM; consider IK impact ratings for high-abuse areas.

Additional Resources

FAQs About LED Wall Pack Lights

What is a wall pack light?

Wall pack lights are exterior, wall-mounted LED fixtures designed to illuminate building perimeters for safety and security. Common placements include walkways, loading docks, stairwells, service doors, and perimeter walls. Available styles include full-cutoff (dark-sky friendly), semi-cutoff, forward-throw, adjustable/rotatable, and architectural models.

Why switch to LED wall packs?

LED wall pack lights typically cut energy use and maintenance versus older HID or fluorescent wall packs. LEDs provide instant-on performance, consistent beam control, and long service life, improving visibility at entrances, perimeters, and security areas.

Full cutoff vs. semi-cutoff vs. adjustable — which should I choose?

Full cutoff wall packs minimize uplight and reduce glare (great near property lines and dark-sky goals). Semi-cutoff offers a balance of reach and glare control. Adjustable wall packs let you aim light where needed (use sparingly to avoid glare and unwanted uplight).

How far apart should wall pack lights be?

A practical starting point is spacing based on mounting height and optic: at 10–12 ft, start around 1.0–1.25× mounting height; at 15–20 ft, start around 1.25–1.75× mounting height. Then verify uniformity and glare using photometrics/IES files and adjust spacing as needed.

Do wall pack lights come with photocells or sensors?

Many wall pack lights offer dusk-to-dawn photocells and motion sensors. These controls reduce energy use and provide light only when needed—ideal for perimeter security, entry points, and facility exteriors.

Are LED wall packs weather-resistant?

Yes. Many LED wall pack lights are designed for wet-location installs and may include ratings like IP65/IP66 (model dependent). Always confirm the exact environmental rating, operating temperature, and corrosion resistance needed for your site.

Do LED wall packs qualify for utility rebates?

Many DLC-listed wall packs can qualify for energy-efficiency rebates from local utilities. Confirm the fixture’s DLC status (Standard/Premium), wattage, and any control requirements before submitting for incentives.

What are battery-backup wall pack lights (UL 924)?

Battery-backup wall pack lights are dual-function fixtures that provide normal exterior lighting and also supply emergency illumination during outages. On select models, a built-in battery switches the fixture into emergency mode and can provide 90 minutes of operation where UL 924 emergency lighting is required.

Where are battery backup wall packs typically used?

Battery backup wall packs are commonly used at exterior egress doors, outdoor stairs, perimeter paths of travel, and facilities that require backup illumination during power loss—such as warehouses, factories, and 24/7 operations.

Are LED wall pack lights suitable for schools or campuses?

Yes. LED wall packs are popular for schools, universities, and public buildings because they provide consistent lighting around entrances, walkways, and parking areas. When equipped with photocells or motion sensors, they can improve safety while reducing energy costs.
