Outdoor Area Lights – LED Parking Lot & Site Fixtures
Durable and efficient, outdoor area lights (also called parking lot lights or site lights)
deliver uniform illumination for lots, drive lanes, campuses, and perimeters. Pair with
LED wall packs for building façades or add
LED flood lights to accent signs and landscape features.
DLC Listed
IP65–IP66
Type III/IV/V Optics
0–10V Dimming
Photocell/Motion
120–277V / 347–480V
Buyers Guide Tips
What to Look for in Outdoor Area Lights
-
DLC & rebates: Look for current DLC listing to qualify for utility incentives and verify efficacy vs. rebate tiers.
-
Distribution: Match optics to layout—Type III for drives, Type IV forward-throw at edges, Type V for open lots; check BUG ratings for spill/uplight control.
-
Lumen package: Size output (≈8k–12k lm small lots, 20k–30k+ lm tall poles) to meet target footcandles and uniformity (e.g., ≤4:1 avg:min).
-
CCT & comfort: Choose 3000–4000 K for dark-sky/neighbor comfort; consider 5000 K for high visual acuity where allowed; verify CRI as needed for cameras/security.
-
Pole height & wind: Confirm EPA/wind-load for fixture + arm on existing poles and select arm/tenon lengths to keep setbacks and aiming correct.
-
Controls-ready: Drivers with 0–10 V dimming; specify NEMA 3-pin/7-pin receptacles, photocell, and motion sensor options for schedules/trim profiles.
-
Voltage & surge: Match input (120–277 V or 347–480 V); include 10–20 kV surge protection for outdoor reliability and utility switching transients.
-
Ingress & impact: Weather-sealed IP65–IP66 housings with robust lenses; check IK/impact data for drive-lane and campus applications.
-
Thermals & life: Verify lumen maintenance (L70 hours) and ambient range; heat-sinking and airflow matter for longevity on high-watt units and hot climates.
-
Mounting hardware: Choose arm/tenon, slipfitter (2⅜″ tenon), or wall/yoke to match poles and retrofit conditions; include leveling and aim adjustments as needed.
-
Finish & corrosion: Multi-coat powder on die-cast aluminum; consider marine or coastal treatments where salt or chemicals are present.
Choose distributions to match your layout: Type III for drive lanes and perimeter runs, Type IV for
forward-throw along lot edges, and Type V for open lots. Output ranges from compact 8,000–12,000 lm for small sites to
30,000+ lm for tall poles and wide coverage. Standard CCTs (3000 K–5000 K) balance visibility, comfort, and local ordinances.
Housings use die-cast aluminum with multi-layer powder coat and UV-stable lenses. Gasketed seals achieve
IP65–IP66 protection, while robust thermal paths and surge suppression extend lifespan. Controls-ready drivers support
0–10 V dimming, dusk-to-dawn photocells, and PIR motion sensors to reduce energy spend without sacrificing safety.
Mounting & Pole Options
-

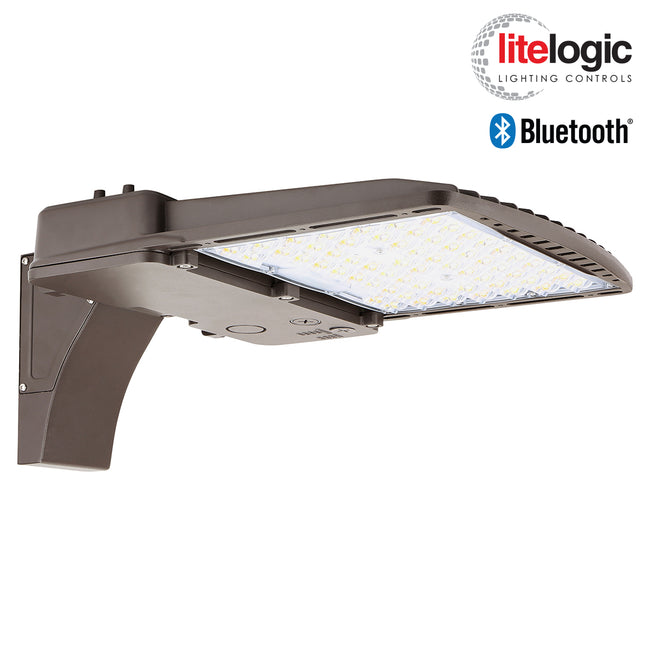

Arm/tenon mounts – shoebox style for square/round poles and multi-fixture crossarms.
-

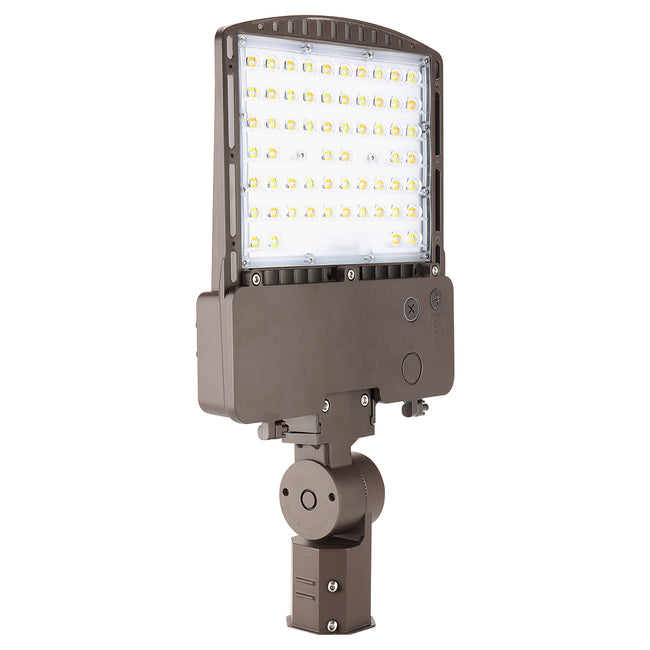

Slipfitter mounts – adjustable aiming on 2⅜″ tenons; ideal for retrofits.
-
Wall / yoke mounts – building-to-lot transitions, loading areas, and security zones.
Dark-sky tip: Choose full-cutoff optics and lower CCT (≤4000 K) to minimize uplight and glare while meeting
target footcandle levels.
For perimeter buildings and entrances, see our wall packs.
Need focused accents or sign lighting? Browse flood lights.
