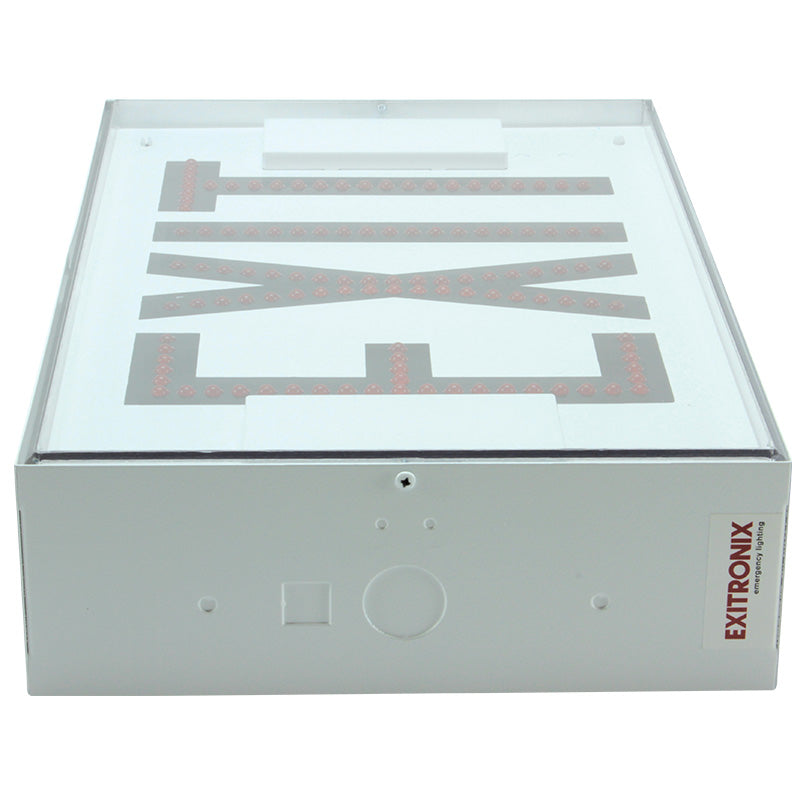

Red LED EXIT sign in white steel housing, side view.

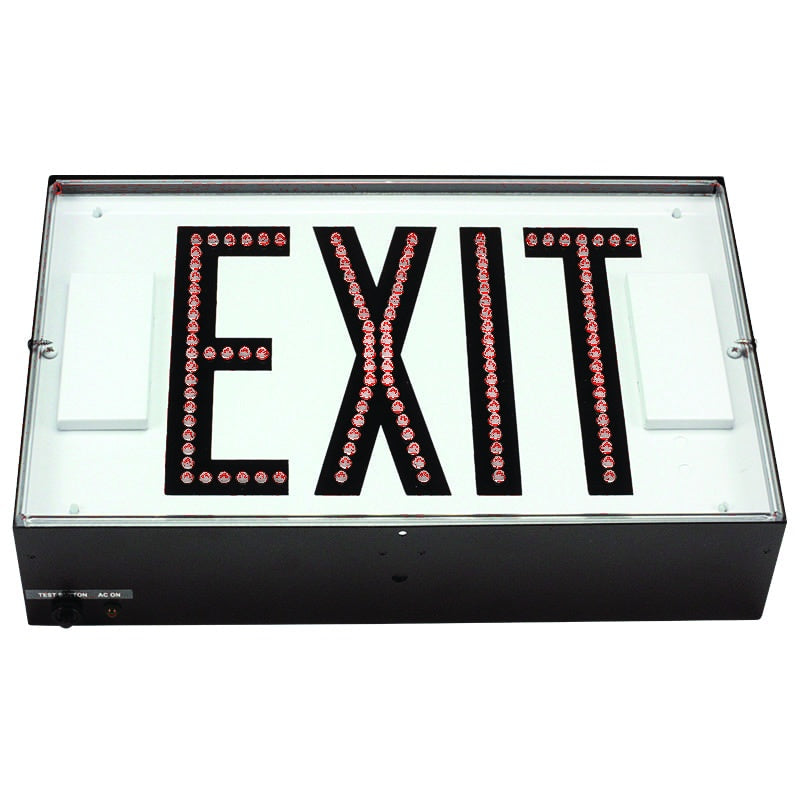

Red LED EXIT sign with black housing, front view.
Red LED EXIT sign with white housing, angled front view.
500E Series Steel Direct-View LED Exit Sign with Red Letters and Vandal-Resistant Lens
Red LED EXIT sign in white steel housing, side view.
Red LED EXIT sign with black housing, front view.
Red LED EXIT sign with white housing, angled front view.

Steel LED Exit Sign – Direct-View with Battery Backup - Red or Green

SKU: 502E-LB-WH
$311.71
Related Options

Got questions?

Give us a call 800-847-1955!

Steel Direct-View LED Exit Sign - 20-Gauge Steel, 6" Letters, Direct-View LEDs - Features & Specs

The 500E Series Steel Direct-View LED Exit Sign delivers maximum visibility in smoke, fog, or low-contrast environments using dot-matrix, direct-view LEDs. Built with a rugged 20-gauge steel housing and a solid 1/8" vandal-resistant polycarbonate lens, it’s designed for demanding industrial and commercial settings. The unit includes field-selectable chevrons and a universal mounting canopy; optional battery backup and combo heads are available.

500E Exit Sign PDF Specification Sheet Icon Download 500E Series Exit Sign Spec Sheet (PDF)

Illumination

  • Direct-view red or green LEDs (dot-matrix) for superior visibility in smoke or haze
  • 6" EXIT characters with 3/4" stroke; viewing distance up to 100 ft
  • Field-selectable chevrons for reliable directional guidance

Electrical

  • Universal input: 120/277 VAC, 50/60 Hz (dual primary)
  • Battery choices: NiMH (standard WB) or sealed lead-calcium with G1 self-diagnostics
  • 90-minute emergency runtime; 24-hour recharge
  • Low-voltage disconnect, brownout/overload/short-circuit protection; solid-state transfer
  • Dual-circuit inputs available: 2CI1 (120/120V), 2CI7 (277/277V), 2CI17 (120/277V) (not available with G1)

Mounting

  • Universal canopy supports ceiling, end, or wall mounting
  • Quick installation; canopy included

Housing

  • Durable 20-gauge steel cabinet with 1/8" polycarbonate lens
  • Finishes: White or Black
  • Assembled in the USA with global components

Dimensions

  • 12.375" W × 8.0" H × 2.75" D

Options & Accessories

  • G1 — Guardian self-diagnostics (battery models)
  • DL — Integral downlight for path illumination
  • DR — Damp-location rated (0 °C – 40 °C)
  • REN3 — Combo option with two 2.6 W PAR16 LED heads (not UL Listed; requires sealed lead-calcium WB + G1)
  • ER1-KIT / ER2-KIT — 1' or 2' pendant mount kits
  • WG-S — Wire guard (back mount); XG-1 — Poly guard (back mount); XG-3 — Poly guard (ceiling mount)
  • TRH — Tamper-resistant hardware (not UL-listed option)

Warranty / Listings

  • 25-year warranty on electronics & housing; battery 5-year prorated
  • UL 924 listed; meets NFPA 101 and NEC
  • Damp-location option (0 °C – 40 °C)

Frequently Asked Questions

Why is direct-view LED better in smoky areas?

The LED points are visible through smoke and haze when diffuser-style legends wash out, improving legibility at a distance.

Is a battery backup version available?

Yes. Standard WB models use NiMH. A sealed lead-calcium battery is available when you order the G1 diagnostics option.

Can this be wall-mounted?

Yes. The unit ships with a universal canopy for ceiling, end, or wall mounting.

Does it include emergency lighting?

The REN3 combo adds two 2.6 W PAR16 LED heads. Note: this combo option is not UL Listed and requires sealed lead-calcium WB with G1.
