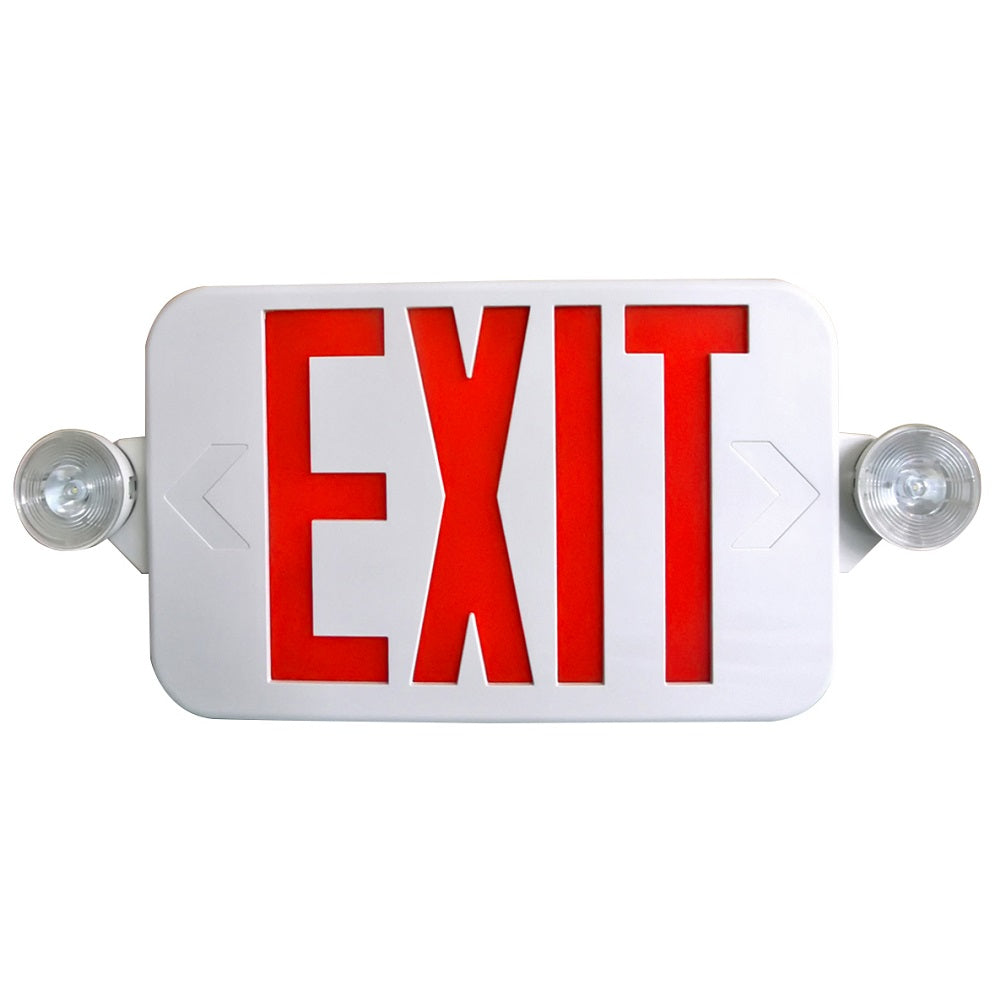

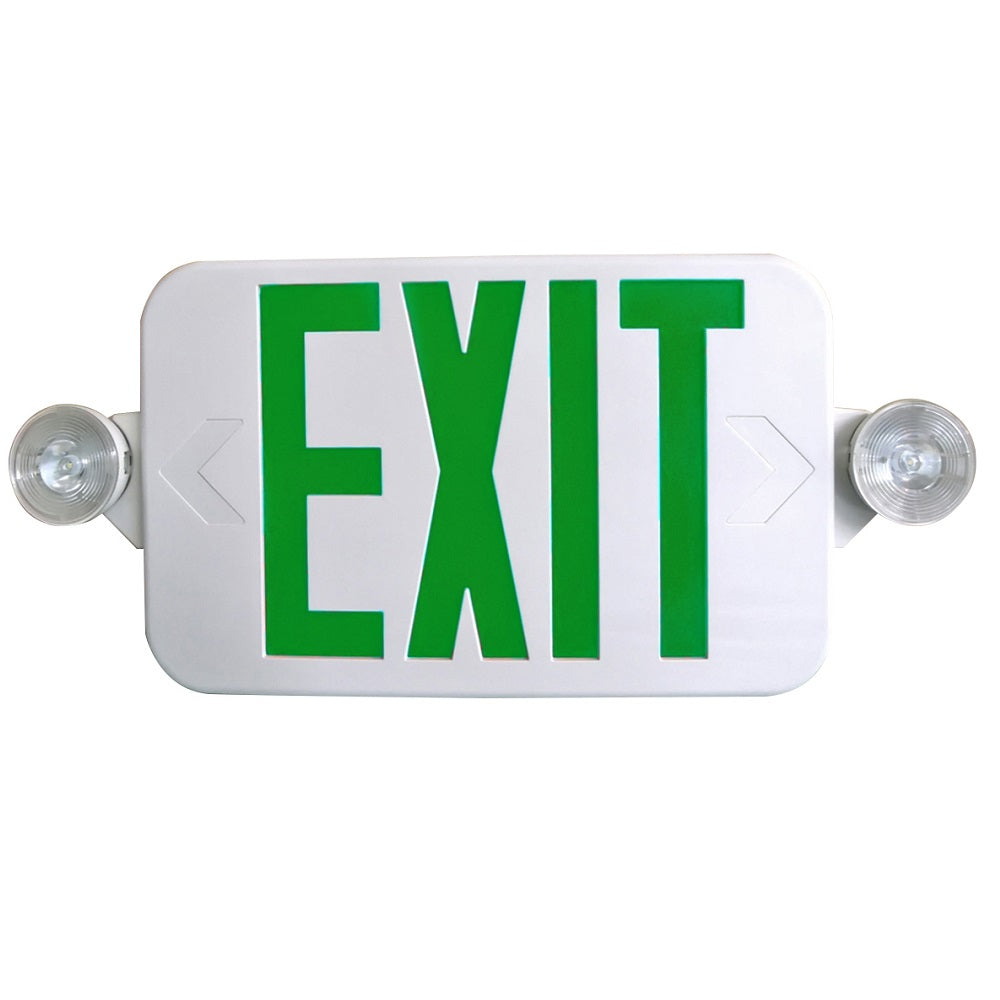

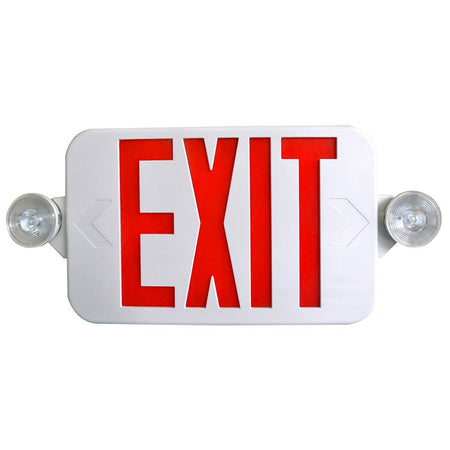

Low-Profile LED Exit and Emergency Combo Unit - Red or Green

Compact LED Exit & Emergency Combo – Red/Green Legend, Dual 0.5 W Heads, Remote‑Capable RC 1.0 W, 120/277V — Features & Specs

The CEU Series LED exit sign & emergency light combo pairs a highly visible EXIT legend with two ultra‑bright, adjustable 0.5 W white LED heads in a compact thermoplastic enclosure. Engineered for egress lighting and life‑safety compliance, the unit features dual‑voltage 120/277 VAC electronics, intelligent battery monitoring, and snap‑fit mounting for fast, code‑compliant installs and retrofits. Explore exit sign and emergency light combos and low‑profile exit & emergency combos for related options.

Key Features

• UL 924 listed; damp‑location rated (0–40 °C) for interior corridors, stairwells, and commercial egress paths
• Compact, low‑profile thermoplastic housing; UL 94 5VA flame‑retardant
• Dual adjustable LED heads 0.5 W each (HL option: 2.0 W each for wider spacing)
• Field‑selectable EXIT legend: red or green (single‑ or double‑face)
• Universal 120/277 VAC input; optional SPV 120/230 VAC for international sites
• 3.6 V Ni‑Cd battery with ≥ 90‑minute emergency runtime
• Bi‑color status LED & push‑to‑test; solid‑state transfer; two‑rate charger (~24 h)
• EZ‑snap canopy (top/end) & universal backplate (wall mount); fits standard J‑box patterns
• RC option: 1.0 W remote‑head capacity (not compatible with HL) for remote heads
• Optional SDT self‑testing emergency lights diagnostics (monthly/biannual/annual)
• Complies with NFPA 101, NEC, OSHA, and CEC Title 20
• One‑year limited warranty; battery prorated 1 year

Related Low-Profile Exit/Combo Guides

Spec Sheet

Download CEU Exit & Emergency Combo Spec Sheet (PDF)

Illumination

• Two adjustable 0.5 W white LED lampheads with integrated reflector/lens for even egress‑path coverage
• Long‑life LED EXIT legend — field‑selectable red or green

Electrical

• Universal 120/277 VAC input (optional 120/230 VAC SPV model)
• Bi‑color status LED — green = normal operation; red = service required
• Push‑to‑test button for code‑compliant diagnostic checks
• 3.6 V Ni‑Cd battery delivers ≥ 90 minutes of emergency illumination
• Solid‑state transfer switch automatically powers LED heads during outages
• Two‑rate solid‑state charger restores full charge in ~24 hours

Mounting

• EZ‑snap thermoplastic canopy for top or end mounting
• Universal knockout pattern on backplate for wall mounting; compatible with common J‑box layouts

Housing

• Injection‑molded, high‑impact thermoplastic — UL 94 5VA flame rating; white or black finish
• Snap‑out chevron directional indicators for on‑site wayfinding configuration

Options

• RC — adds 1 W capacity for remote‑head exit sign combos (not available with HL)
• HL — high‑lumen exit sign combos for extended spacing (not available with RC)
• SPV — special‑voltage 120/230 VAC, 50/60 Hz input
• SDT — self‑diagnostic testing (monthly/biannual/annual)

Certifications / Warranty

• UL 924 listed for damp locations (0 °C to 40 °C)
• Complies with NFPA 101, NEC, OSHA, and CEC Title 20
• One‑year limited warranty on electronics & housing; battery prorated 1 year

Frequently Asked Questions

What does “remote‑capable” mean on the CEU combo?

Remote‑capable models (RC option) can power an additional 1 W remote LED head, extending egress lighting coverage without adding another full fixture (not available with the HL option).

Can I choose between red and green legends?

Yes. The CEU combo ships with both red and green LED legends; select the required color during installation to meet local building‑code preferences.

How long does the CEU battery last?

The internal 3.6 V Ni‑Cd battery provides ≥ 90 minutes of emergency illumination, meeting UL 924 and NFPA 101 life‑safety requirements.

Is the CEU listed for damp locations?

Yes. The CEU Series is UL 924 damp‑location listed for operation between 0 °C and 40 °C (32 °F to 104 °F).

What mounting options are included?

A universal canopy supports ceiling or end mounting, and the backplate provides a universal knockout pattern for wall installation and standard J‑box compatibility.
