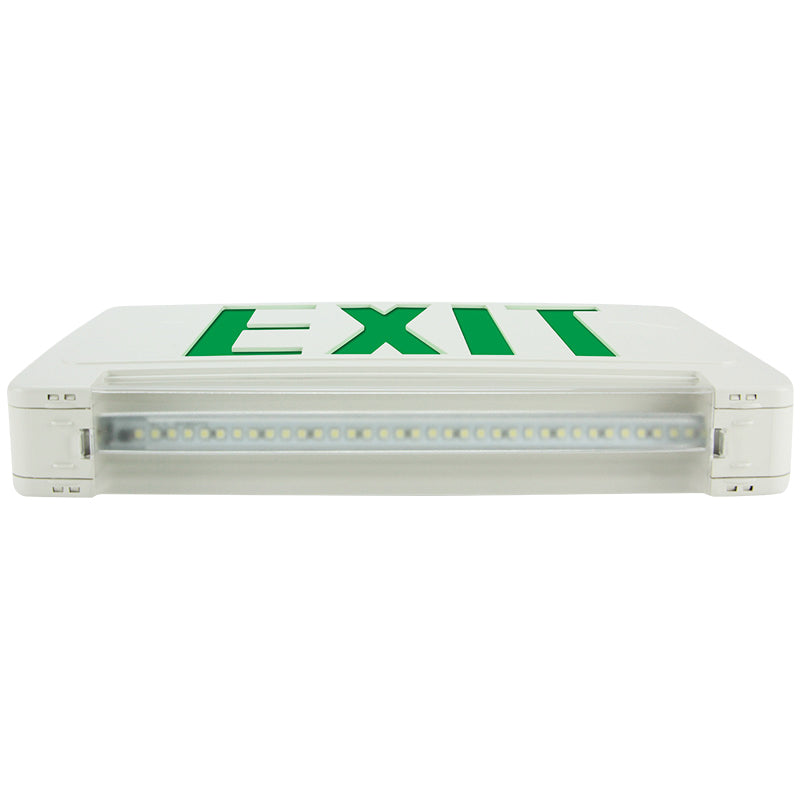

Green-letter LED exit sign with integrated emergency light bar, low-profile combo, white housing
Green LED exit sign with integrated light-bar – front view showing low-profile design
Red LED exit sign with integrated light-bar – front view showing low-profile design
Green-letter LED exit sign with integrated emergency light bar, low-profile combo, white housing

LED Exit Sign with Adjustable Light-Bar – Low Profile, Remote Capable

SKU: CLED-U-BL
$129.94

Got questions?

Give us a call 800-847-1955!

Low‑Profile Light‑Bar Exit Sign Combo — Integrated Adjustable Light‑Bar, Universal Mount, Remote‑Capable (1 Head), 120/277V, UL 924 / 90‑min — Features & Specs

The CLED “Revolution” combination LED light‑bar exit sign blends a slim, flame‑rated thermoplastic LED exit sign with emergency lights and a high‑output, adjustable linear light‑bar for uniform egress illumination. This universal‑mount combo ships with faceplates, backplate, and canopy; supports one remote LED head (MLED1, ordered separately); and offers optional Guardian self‑diagnostics for smart, code‑compliant maintenance.

UL 924 Damp Location Universal Mount Integrated Light‑Bar Remote‑Capable Self‑Testing (Opt.) 120/277 VAC Ni‑Cd / 90 min Low Profile 1.9" UL 94 5VA

Key Features

  • Integrated, adjustable LED light‑bar replaces bulky heads for a clean, low‑profile aesthetic
  • 6" letters, 3/4" stroke, 100‑ft viewing distance; red or green legend
  • Dual‑primary 120/277 VAC input; overload & short‑circuit protection (G2 adds brownout & LVD)
  • Maintenance‑free Ni‑Cd battery; ≥ 90‑minute emergency runtime; ~24‑hour recharge
  • Optional G2 Guardian self‑diagnostics with status LEDs and push‑to‑test
  • Remote‑capable output supports one MLED1 remote head (G2 required on host; wet‑location remote available)
  • Universal ceiling / wall / end mounting; interchangeable faces & back; field‑selectable chevrons
  • One‑piece UL 94 5VA thermoplastic housing; slim 1.9" cabinet (4.3" overall with light‑bar)
  • Listed to UL 924 for damp locations; NFPA 101 / NEC compliant

Related Combo & Remote‑Head Guides

Exit + Emergency Combo Buyer’s Guide Remote Heads—Sizing & Cable Runs (Calculator)

Spec Sheet

Download CLED Exit Sign with Light‑Bar Spec Sheet (PDF)

Illumination

  • Bright, energy‑efficient LEDs illuminate the EXIT legend in your choice of a red exit sign combo or a green exit sign combo
  • 1.5 W white LEDs in the integrated light‑bar support typical 1 fc egress‑path design targets
  • Design‑aid photometrics @ 7.5' mounting: up to 16' CTC spacing on a 3' path or 12' on a 6' path

Electrical

  • Dual‑primary 120/277 VAC input (60 Hz)
  • Maintenance‑free Ni‑Cd battery; ≥ 90‑minute emergency runtime; ~24‑hour recharge
  • Overload & short‑circuit protection; G2 only: brownout circuit & low‑voltage disconnect
  • Status LEDs & push‑to‑test button (G2 models perform automatic monthly / semiannual self‑tests)

Mounting

  • Surface ceiling, end, or wall‑mount exit sign combo with snap‑fit canopy
  • Interchangeable faceplates and backplate with snap‑together design; standard J‑box pattern

Housing / Finish

  • One‑piece ABS thermoplastic housing, UL 94 5VA flame‑retardant
  • Slim cabinet profile with integrated light‑bar projection

Dimensions

  • Overall (with light‑bar): 12.6" W × 9.1" H × 4.3" D
  • Cabinet depth (without light‑bar): 1.9"

Options & Accessories

  • G2 — Guardian self‑test/diagnostics (auto 30‑sec monthly & 90‑min semiannual tests)
  • MLED1 — Single remote LED lamp head (wet‑location option available; order separately)
  • WG‑S / XG‑6 — Wire or polycarbonate protective guards

Warranty / Listings

  • 5‑year warranty on electronics & housing; Ni‑Cd battery 5‑year prorated
  • UL 924 listed for damp locations; compliant with NFPA 101, NEC, and OSHA
