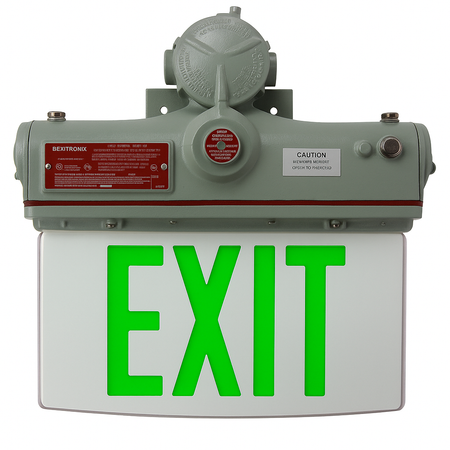

Green Hazardous-location edge-lit exit sign – front view showing clear legend panel
Red Hazardous-location edge-lit exit sign – front view showing clear legend panel
Red Hazardous-location edge-lit exit sign – front view showing clear legend panel
Hazardous-location edge-lit exit sign – side view showing clear legend panel

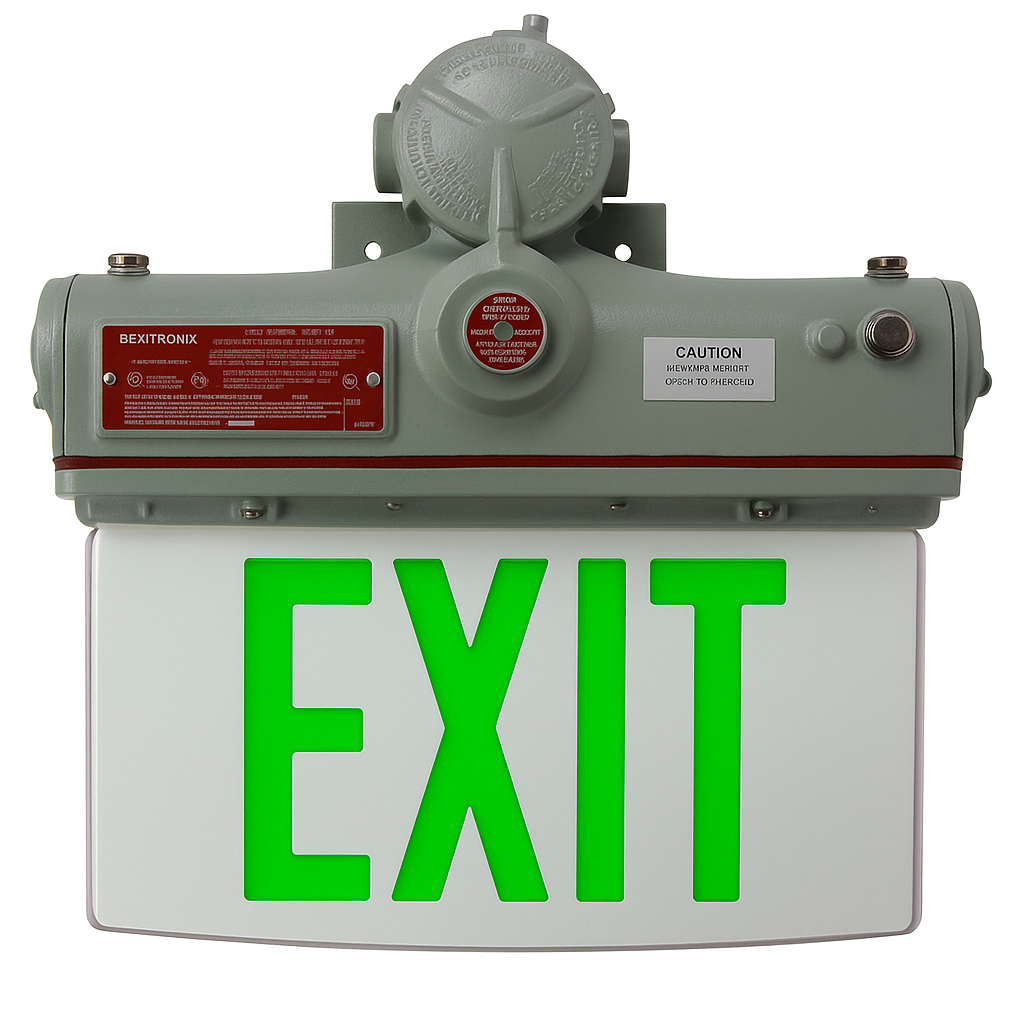

Green Hazardous-location edge-lit exit sign – front view showing clear legend panel
Red Hazardous-location edge-lit exit sign – front view showing clear legend panel
Red Hazardous-location edge-lit exit sign – front view showing clear legend panel

Explosion Proof Edge-Lit Exit Sign – Class I, II, III | 180 Min Backup

SKU: CP-E-1-LB-WP
$1,396.49

Got questions?

Give us a call 800-847-1955!

Hazardous Location Edge-Lit LED Exit Sign - UL 924, IP65, Class I Div 2 / Class II Div 2, 180-Min Battery - Features & Specs

The CP-E explosion-proof edge-lit LED exit sign is enclosed in a rugged, factory-sealed, copper-free cast-aluminum housing for classified environments. Approved for Class I Div 2, Class II Div 2 and Class III areas within our hazardous-location exit signs lineup, it pairs a high-clarity edge-lit acrylic legend with high-efficiency LEDs and a 180-minute Ni-Cd battery. Universal mounting hardware supports wall, pendant, or end-bracket installs, and the unit is Made in the USA and Buy America compliant.

UL 924 IP65 Class I Div 2 Class II Div 2 Class III Cast Aluminum Edge-Lit Acrylic 180-Min Runtime Wall / Pendant / End Made in USA

Key Features

  • Hazardous ratings: Class I Div 2 (Groups A–D), Class II Div 2 (F & G), Class III; T6 temperature class
  • Factory-sealed, copper-free cast-aluminum housing with IP65 ingress protection
  • Edge-lit acrylic legend with 6" characters (¾" stroke), field-selectable chevrons; 100-ft viewing distance
  • 180-minute Ni-Cd emergency operation; ~24-hour recharge
  • Dual-primary 120/277 VAC input; 240T option for 220–240 VAC systems
  • Mounting: WP wall/pendant or EB end-bracket; ½" NPT conduit hubs (top & sides)
  • Mirror insert included for double-face; optional EU running-man legend
  • Coastal/marine ready: salt-spray tested construction
  • Made in USA / Buy America compliant
  • Conformance: NEC, NFPA 101 / NFPA 70, OSHA; T6 temperature class

CP-E Exit Sign Spec Sheet PDF Icon Download Hazardous Location Exit Sign Spec Sheet (PDF)

Illumination

  • High-efficiency LEDs (red or green) with edge-lit acrylic panel
  • 6" characters with ¾" stroke; field-selectable chevrons; 100-ft viewing distance
  • Mirror insert supplied for double-face configurations

Electrical

  • Dual-primary 120/277 VAC (60 Hz); 240T option for 220–240 VAC
  • Maintenance-free Ni-Cd battery; 180-minute emergency operation; 24-hour recharge
  • Brownout circuit, low-voltage disconnect, and push-to-test switch

Mounting

  • WP – wall or pendant mount; EB – end-bracket mount
  • Standard ½" NPT conduit hubs on top and sides

Housing / Finish

  • Explosion-proof, copper-free cast-aluminum body (factory sealed); clear acrylic legend panel
  • IP65 rated; suitable for wet/damp locations and marine/coastal use
  • Standard finish: gray

Dimensions

  • 14.9" W × 16.0" H × 3.7" D

Options & Accessories

  • G1 – Guardian self-diagnostics
  • EU – Green running-man legend panel
  • Mirror insert for double-face (included)

Compliance / Warranty

  • UL 924 listed for hazardous locations; meets NEC, NFPA 101, and OSHA requirements
  • Temperature class: T6 (= 85 °C surface)
  • Five-year warranty on electronics and housing; Ni-Cd battery prorated five years
