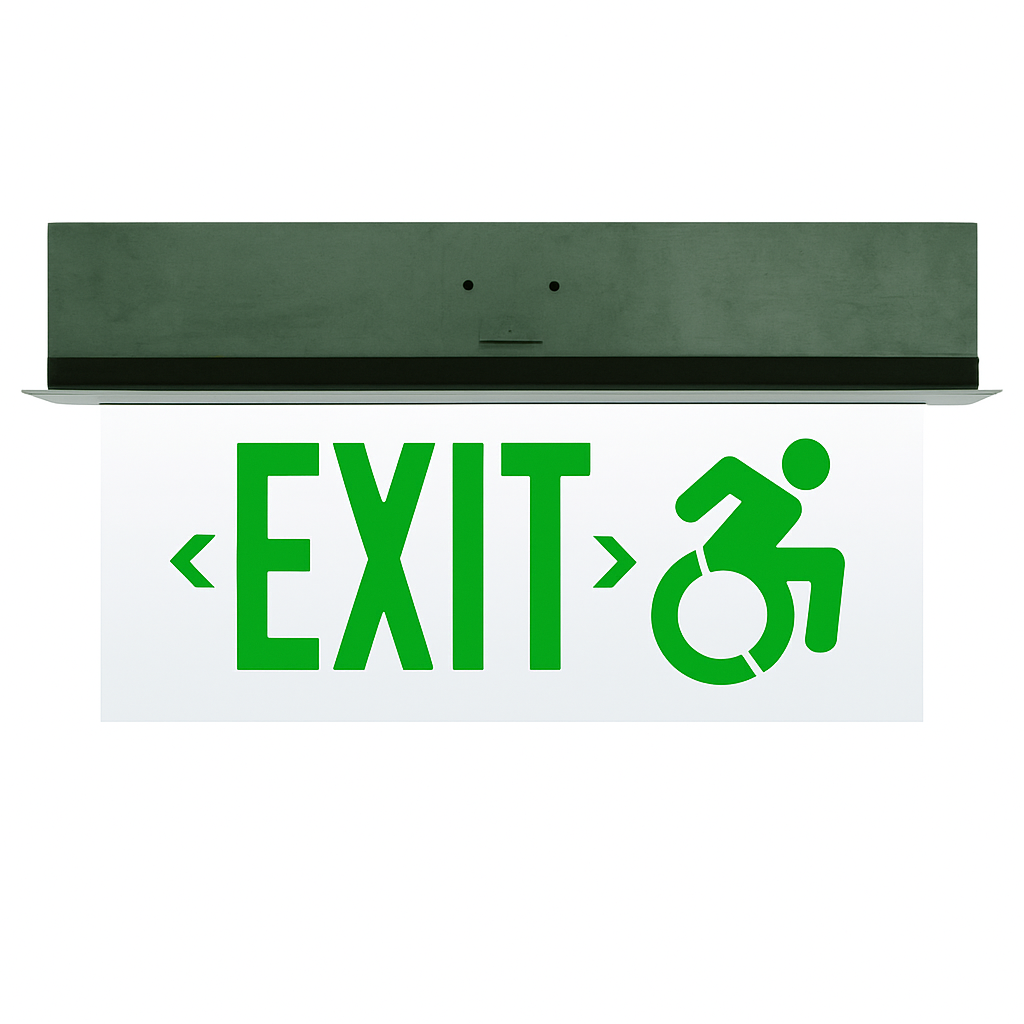

Connecticut-code edge-lit exit sign - Green Letters – front view showing slim aluminum housing
Connecticut-code edge-lit exit sign - Red Letters – front view showing slim aluminum housing
Connecticut-code edge-lit exit sign - Green Letters – front view showing slim aluminum housing

Edge-Lit LED Exit Sign – Connecticut Code, Wheelchair Symbol - Face: Single

SKU: CT902E-CR-LB-GC-BA
$558.45

Got questions?

Give us a call 800-847-1955!

Connecticut‑Code Edge‑Lit LED Exit Sign — Wheelchair Symbol, 6″ Letters, 90‑min Ni‑Cd, Surface or Recessed — Features & Specs

This edge‑lit LED exit sign is configured to satisfy Connecticut Building Code §1011.1.2 requirements and includes the ADA wheelchair symbol. It ships ready for surface or recessed mounting with a 90‑minute Ni‑Cd emergency pack for dependable, UL 924 egress. Explore the full edge‑lit exit signs collection.

CSA Listed Meets UL 924 CT Code §1011.1.2 ADA Symbol 100‑ft Viewing 120/277 V 90‑min Backup Surface / Recessed CEC Compliant BAA / ARRA

Key Features

  • Connecticut‑approved legend with the ADA wheelchair symbol.
  • 6″ letters, ¾″ stroke; 100‑ft viewing distance; field‑selectable chevrons.
  • Dual‑primary 120/277 V (60 Hz); LVD, brownout, overload & short‑circuit protection.
  • Maintenance‑free Ni‑Cd battery; 90‑minute runtime; ≈24‑hour recharge (TF 120‑min option).
  • Mounting: ceiling/wall/end surface (canopy included) or recessed (adjustable bar hangers).
  • 20‑ga steel backbox/trim; finishes: brushed aluminum, polished aluminum, or white.
  • Operating temperature: 10–40 °C (50–104 °F); CEC compliant; BAA/ARRA available.
  • Options: IV inverted panel, TF 120‑min battery, USA Buy American.

Related Edge‑Lit Guides

Edge‑Lit Spec & Selection Guide Where Edge‑Lit Fits by Facility Type

Spec Sheet

Download CT900E Wheelchair‑Accessible Edge‑Lit Exit (PDF)

Illumination

  • High‑intensity red or green LEDs provide bright, uniform edge‑lit illumination.
  • 6″ characters with ¾″ stroke; 100‑ft viewing distance.

Electrical

  • Dual‑voltage 120/277 V, 60 Hz input.
  • Ni‑Cd battery with 90‑minute emergency runtime; ≈24‑hour recharge.
  • Protections: low‑voltage disconnect, brownout, overload & short‑circuit.

Housing / Finish

  • Rugged 20‑ga steel backbox, trim, and enclosure.
  • Panels: clear acrylic; double‑face panels include mirror or white insert.
  • Finishes: brushed aluminum, polished aluminum, or white.

Mounting

  • Surface: ceiling, wall, or end (universal canopy included).
  • Recessed: ceiling or wall with adjustable bar hangers.
  • Pendant: ER1‑KIT 1′ pendant accessory (field installed).

Options & Accessories

  • IV — Inverted panel (down‑facing legend).
  • TF — 120‑minute runtime (Ni‑Cd).
  • USA — Meets Buy American requirements.

Warranty / Listings

  • 5‑year warranty on electronics & housing; 5‑year prorated Ni‑Cd battery.
  • CSA Listed; meets or exceeds UL 924, CEC, NEC, and NFPA 101.
  • Specifically certified for Connecticut §1011.1.2 wheelchair‑accessible exit signage.
