ELXTEU Edgelit Aluminum Exit Sign - Face: Double - Letter-Color: Green
Regular price
$83.51
Couldn't load pickup availability

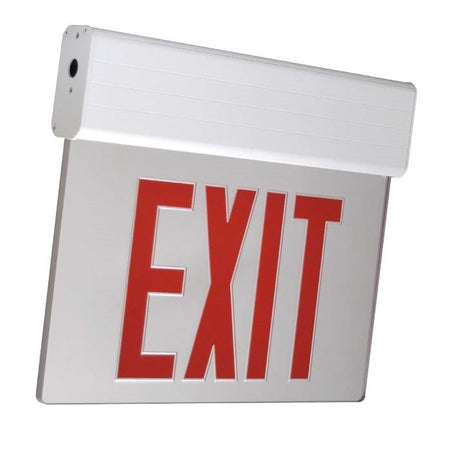

The ELXTEU Edge-Lit LED Exit Sign pairs a mirror-finish aluminum
frame with a crystal-clear acrylic panel that appears to “float” when lit.
Field-selectable red or green LEDs outline 6 in EXIT characters,
while universal 120/277 VAC electronics and an optional 4.8 V Ni-Cd
battery (≥ 90 min runtime) ensure dependable, code-compliant egress
lighting in architecturally sensitive interiors.
Illumination
- Edge-lit acrylic panel with high-output, long-life LEDs — select red or green legend
- Even, glare-free lighting; mirrored divider supplied for double-face models
Electrical
- Universal 120/277 VAC input with bi-colour charge-status LED & push-to-test button
- 4.8 V maintenance-free Ni-Cd battery (EM versions) provides ≥ 90 min emergency illumination
- Solid-state transfer switch and two-rate charger restore the battery within 24 h
Mounting
- Canopy supplied for top or end mount; knock-outs on back plate for surface mount
- Convertible single-/double-face design with snap-on chevron arrows
Housing / Panel
- Satin aluminum frame (optional white or black) with clear, mirrored, or white panel
- Low-profile edge-lit construction blends with modern interiors
Options
- SDT — self-diagnostic testing (monthly, bi-annual, annual)
- 2C-120 / 2C-277 — dual-circuit AC operation
- TP — tamper-proof hardware kit
- Custom legends or special wording available
Warranty / Listings
- Five-year warranty on electronics & housing; battery prorated five years
- UL 924 listed for damp locations (0 °C – 50 °C); NFPA 101, NEC, OSHA compliant
- CEC Title 20 energy-efficiency compliant
Dimensions
- 13 in W × 8 in H × 1 3⁄4 in D
Product Features
- Architectural
- Assembled in the USA
- Battery Backup
- Brand: Best Lighting
- Cold Weather
- Custom Wording
- Damp Location
- Edge Lit
- Face: Double
- Housing Color: Aluminum
- Housing Color: Black
- Housing Color: White
- LED
- Letter Color: Green
- Low Profile
- Product: ELXTEU
- Self Testing
- Exit Signs
- Vandal Resistant
