Reduced Profile Thermoplastic LED Emergency Unit

Reduced-Profile Thermoplastic LED Emergency Unit – Features & Specs

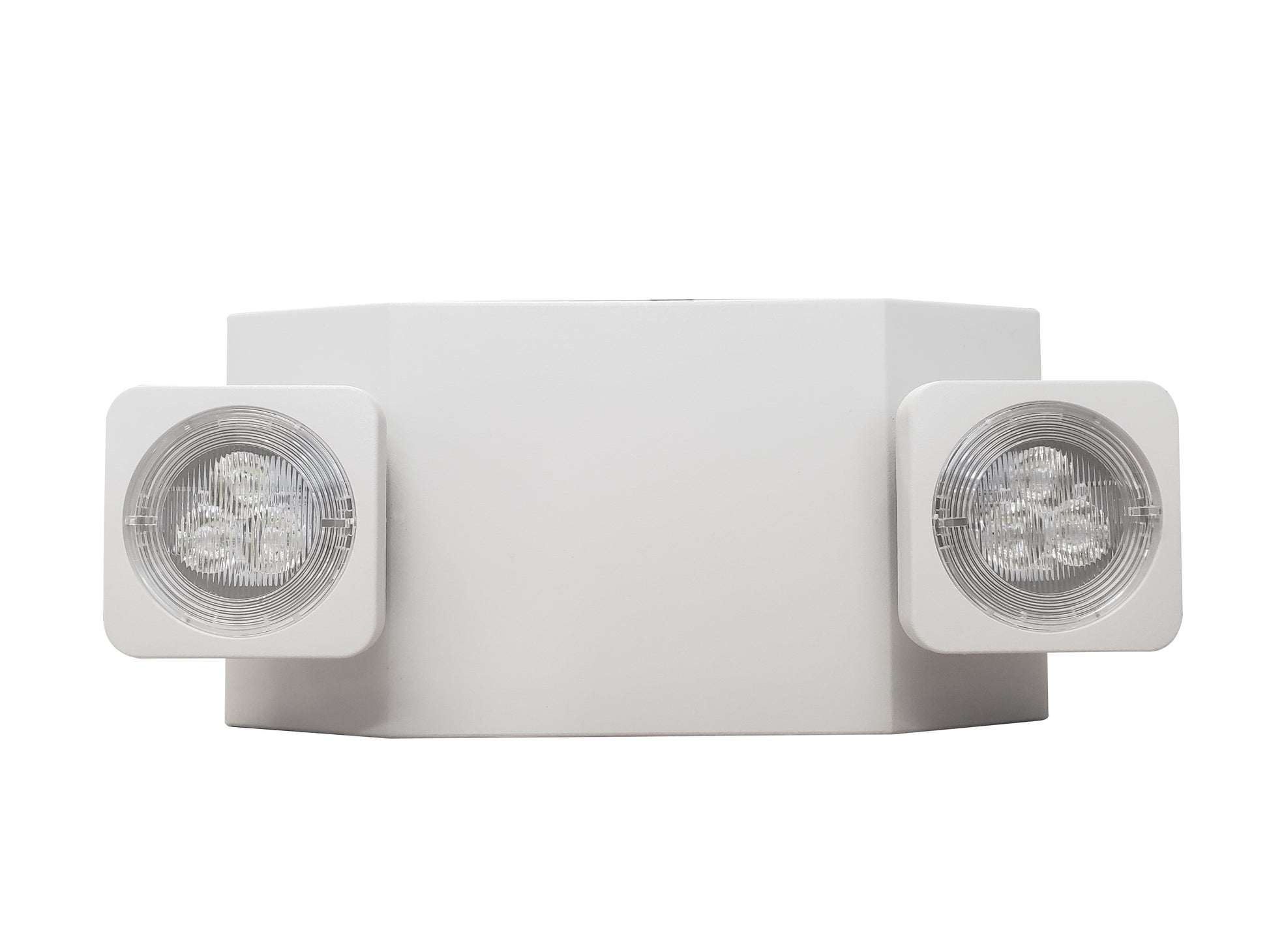

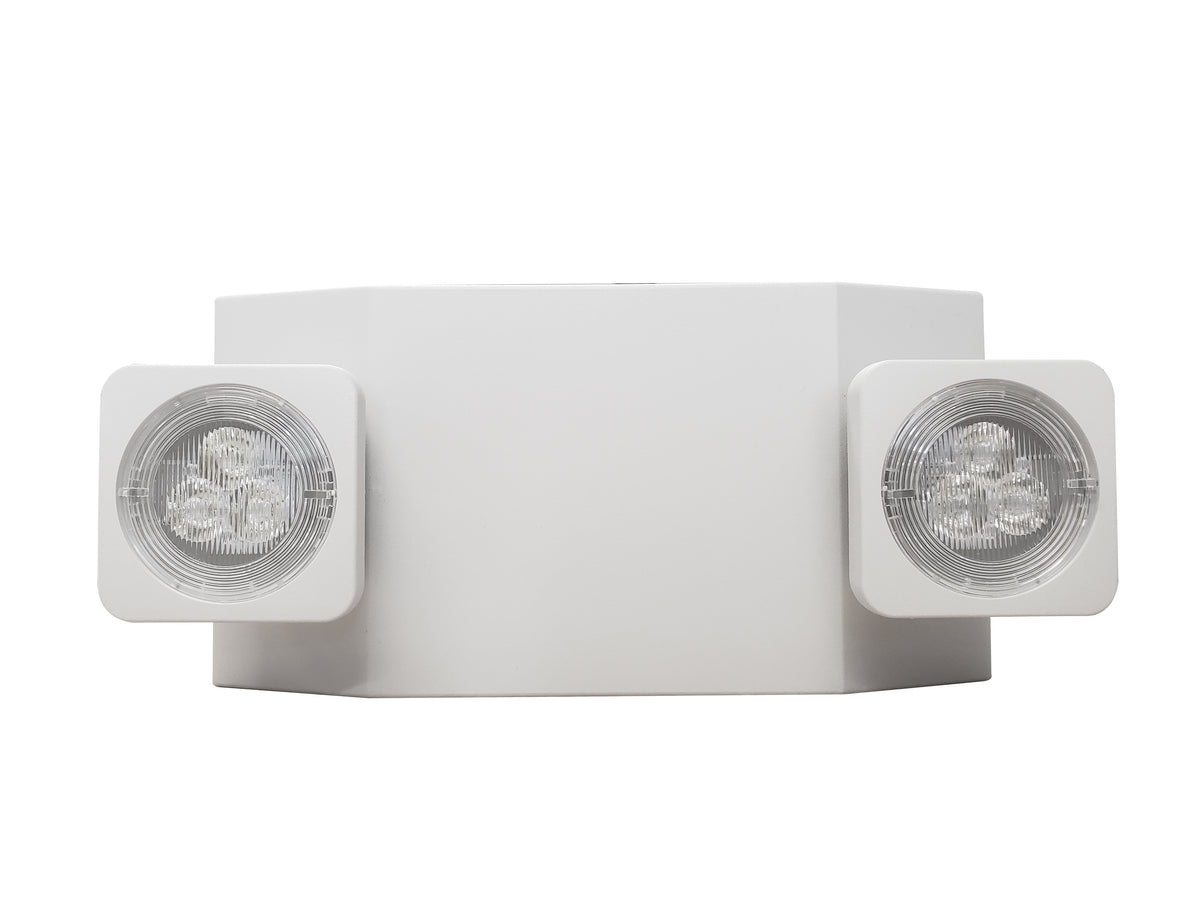

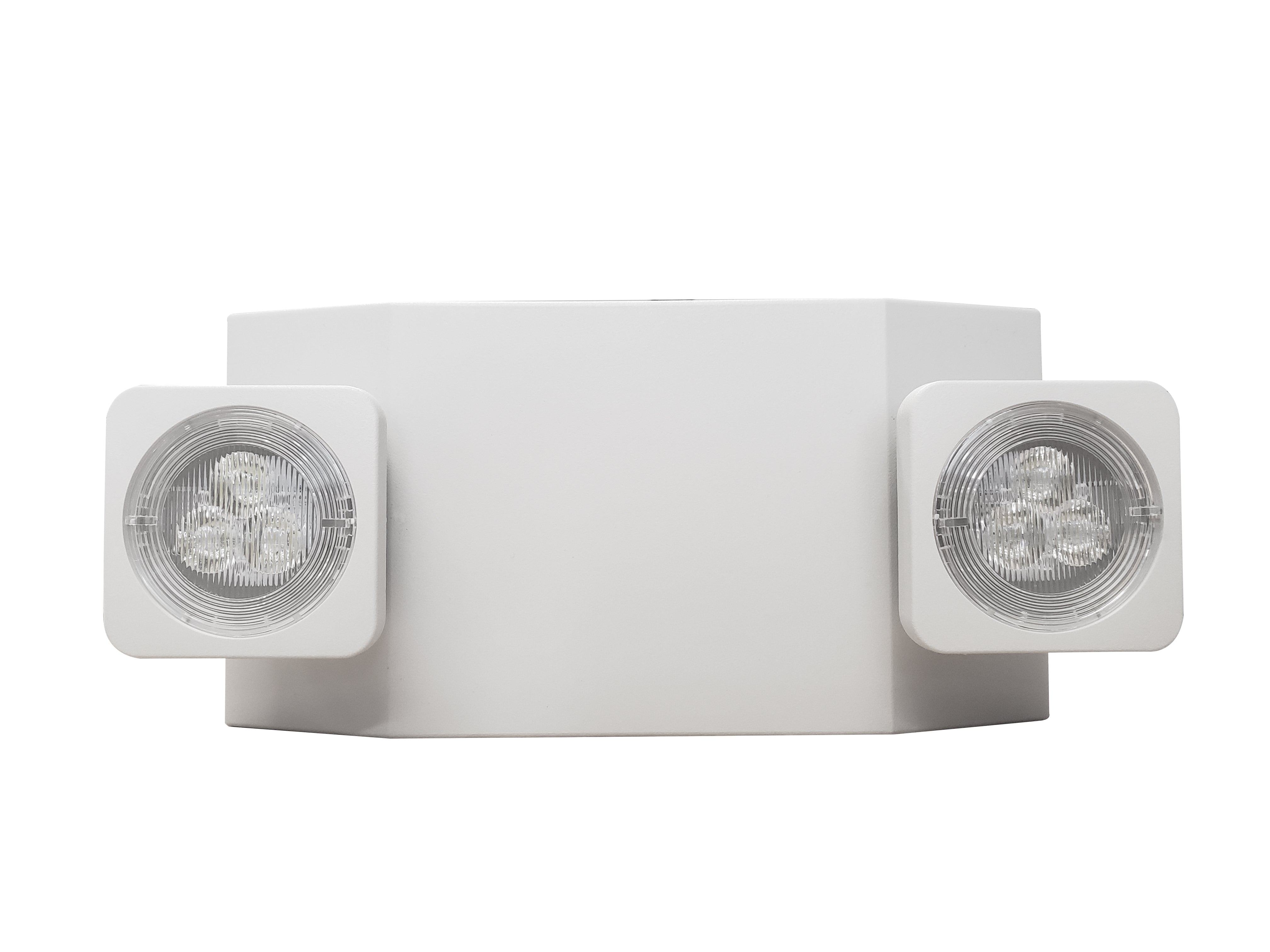

The EM Reduced-Profile LED Emergency Unit delivers 30 ft center-to-center spacing with dual 1.5 W LED heads in a slim, thermoplastic enclosure. With tool-free surface mounting and a 90-minute Ni-Cd backup, the EM Series is ideal for commercial egress lighting in interiors and damp location emergency lights. Browse all LED emergency lights.

Key Features

• UL 924 listed; damp-location rated (0–50 °C)
• Dual adjustable LED heads 1.5 W each for reliable egress lighting
• Spacing up to 30 ft on a 3 ft path at 10 ft mounting height
• 3.6 V Ni-Cd battery with 90-minute emergency runtime
• Universal 120/277 VAC input (optional SPV 120/230 VAC)
• Status LED & push-to-test; solid-state transfer; two-rate charger (~24 h)
• Low-profile 5VA flame-retardant thermoplastic (white or black)
• Universal backplate for wall/ceiling mount; top/side ½" conduit knockouts
• RC option: 2.5 W remote-head capacity at 6 V
• SDT self-diagnostics (monthly/biannual/annual) & USA BAA option; NH no-head variant
• Compliance: NFPA 101, NEC, OSHA, CEC Title 20
• Warranty: 5-year electronics/housing; battery 5-year prorated

Spec Sheet

Download LED Emergency Unit Spec Sheet (PDF)

Illumination

• Two 1.5 W white LED heads with chrome-plated reflectors and lenses
• Provides 30 ft spacing on a 3 ft egress path at 10 ft mounting height

Electrical

• 120/277 VAC input (optional SPV for 120/230 VAC systems)
• 3.6 V Ni-Cd battery with 90-minute emergency runtime
• Push-to-test button with bi-color LED (green = normal, red = battery fault)
• Solid-state transfer; two-rate charger (24-hour full recharge)
• Input: 0.6 W @ 120 V  |  0.7 W @ 277 V
• RC model provides 2.5 W remote capacity for emergency lighting remote heads (6 V output)

Mounting

• Universal knockout backplate for wall or ceiling surface mount
• Side and top conduit-entry knockouts included

Housing

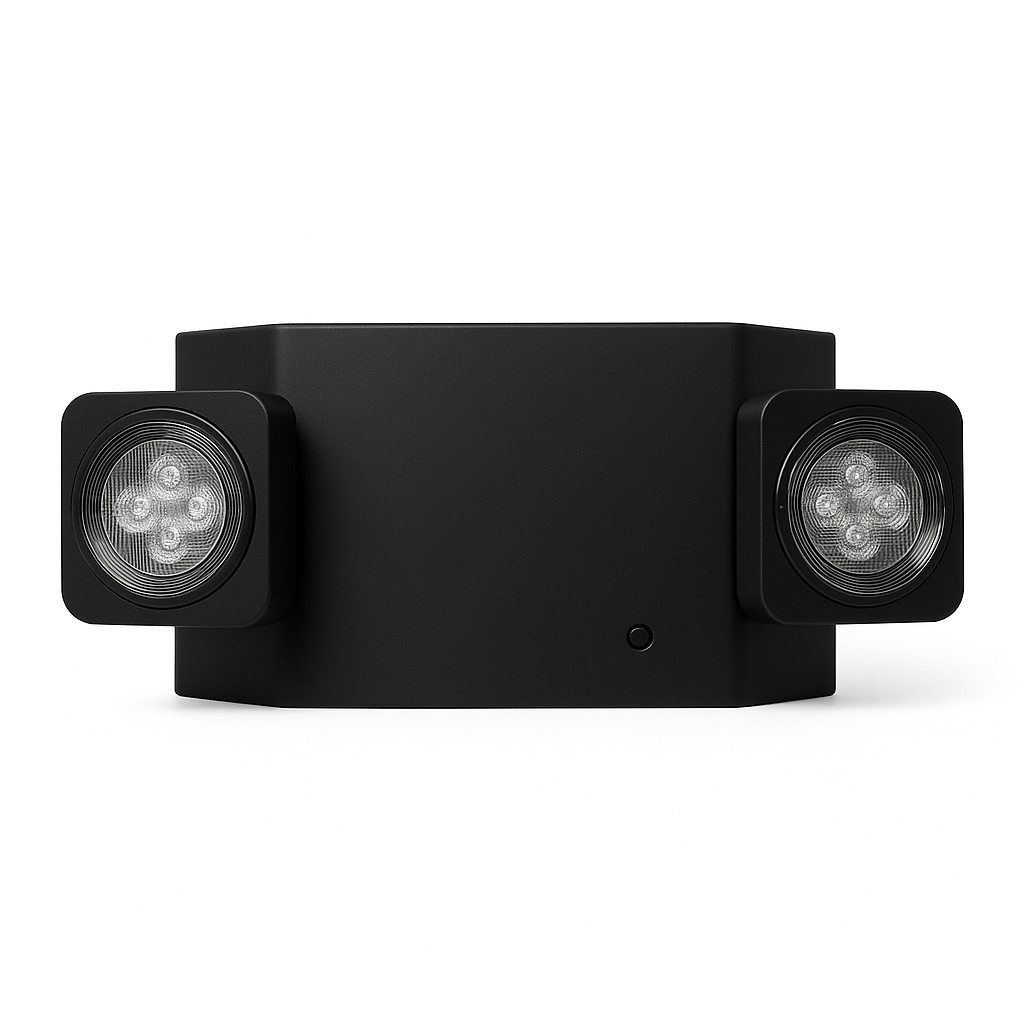

• Injection-molded 5VA flame-retardant thermoplastic — white or black

Options

• RC — 2.5 W remote capacity output
• SDT — self-testing emergency lights (automatic monthly/biannual/annual)
• USA — Assembled in the USA emergency lights for BAA compliance
• NH — No lampheads (remote-capable only)

Warranty / Listings

• 5-year warranty on housing and electronics; battery prorated 5 years
• UL 924 listed for damp locations (0°C to 50°C)
• Complies with NFPA 101, NEC, OSHA, and CEC Title 20

Dimensions

• 8 15/16" W × 4 9/16" H × 2 7/8" D

Frequently Asked Questions

What is the emergency runtime for the EM Series?

The EM includes a 3.6 V Ni-Cd battery that delivers a minimum of 90 minutes of emergency illumination in compliance with UL 924.

How far apart can the fixtures be spaced?

Each EM unit provides up to 30 ft center-to-center spacing on a 3 ft egress path at a 10 ft mounting height under standard conditions.

Can the unit be installed on ceilings or walls?

Yes. The universal knockout backplate supports surface mounting to walls or ceilings and includes conduit knockouts.

Is the EM model suitable for damp locations?

Yes. It is UL 924 listed for damp locations and operates between 0°C and 50°C.

Does this model support remote emergency heads?

Yes. The RC option supplies 2.5 W of remote capacity (6 V output) to power additional emergency lights. Not available on NH models.
