Flush-Recessed LED Emergency Light – 350 lm, Adjustable Optics

FRM Series – Flush-Recessed LED Emergency Light with Pop-Out Optics

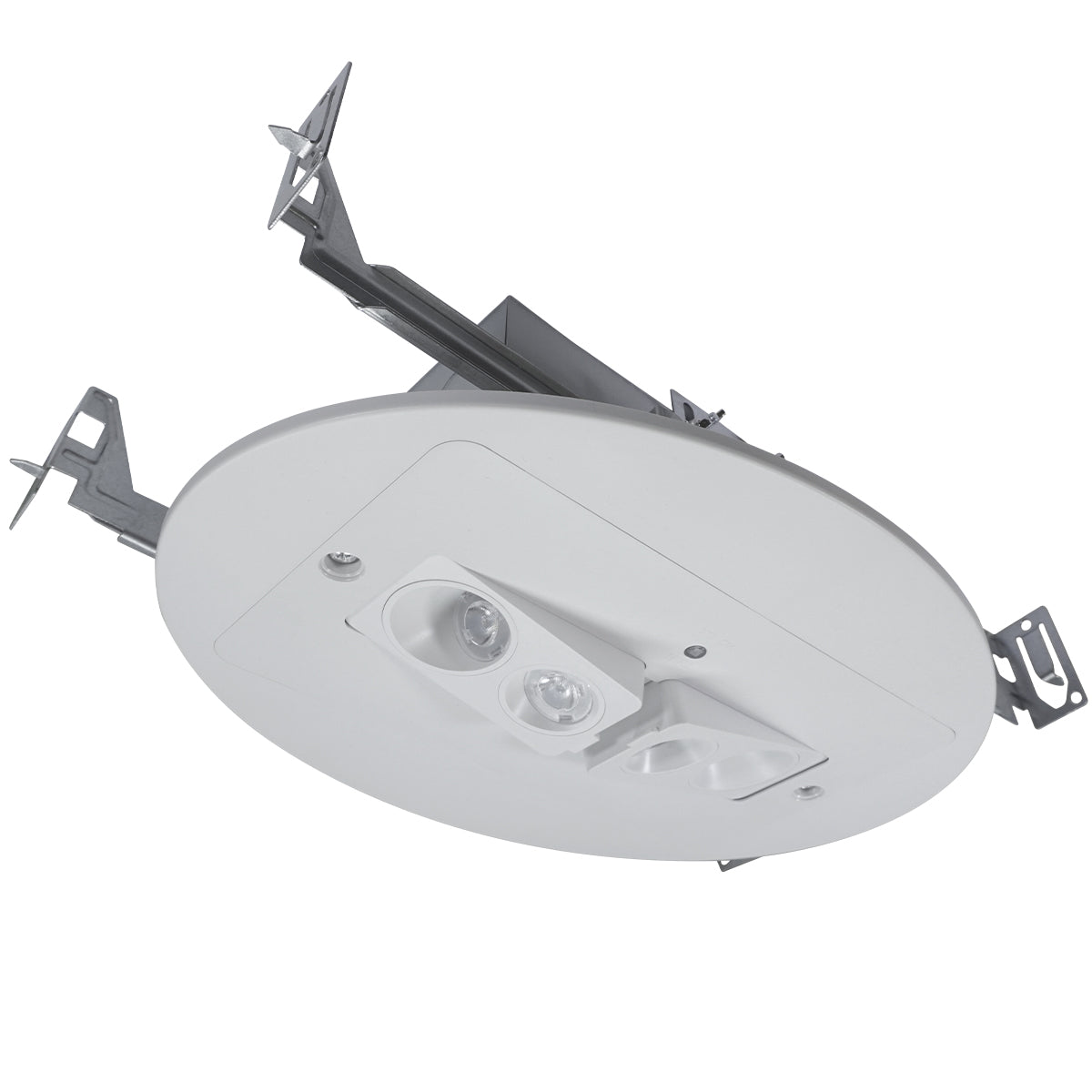

The FRM Series Flush-Recessed LED Emergency Light remains completely hidden until needed—only a slim trim plate is visible during normal operation. In an outage, two adjustable LED optics tilt out automatically to deliver bright, uniform egress lighting with up to 55 ft spacing. Each unit ships with both rectangular and oval trim plates, bar hangers for drywall or T-bar ceilings, and a 5 VA flame-rated housing for easy code-compliant installation.

Download FRM Recessed Emergency Light Spec Sheet (PDF)

Features & Benefits

• Architectural flush-recessed ceiling design for grid or drywall
• Two low-profile 2 W LED optics (4 W total), tilt-adjustable for precise aim
• Up to 55 ft spacing at 10 ft mounting height

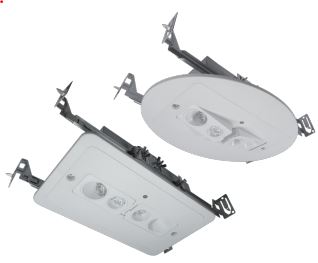

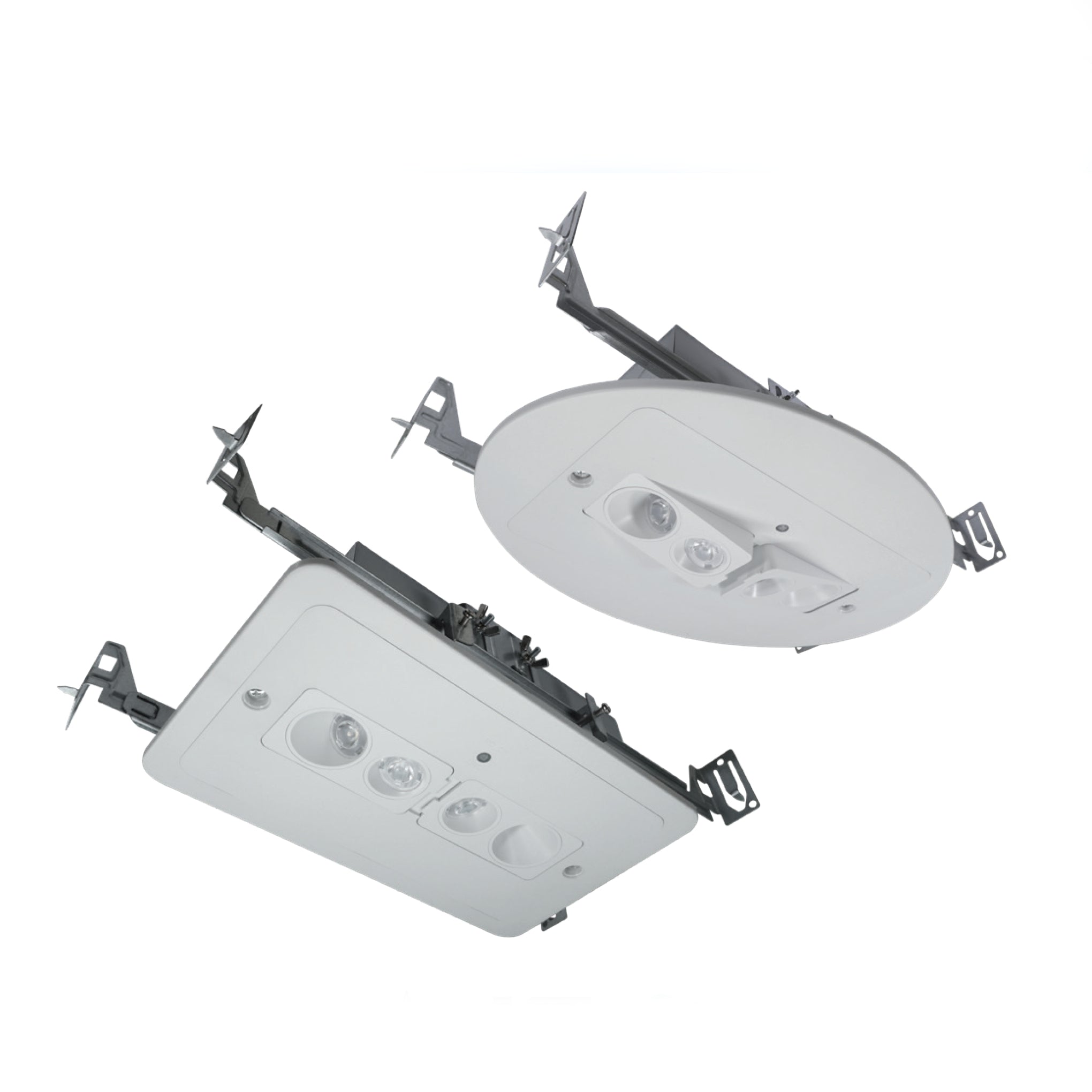

• Includes both rectangular and oval trim plates (paintable)
• G2 self-test/diagnostics option available
• UL 924 listed for damp locations; NYC, NFPA, NEC compliant

Illumination

• Two heads with (2) 1 W LEDs each (88 lm/W efficacy)
• Total output ˜ 350 lumens
• Click-in aiming: 0–15° vertical tilt in 1.7° increments for directional control

Electrical

• Universal 120–277 VAC input, 60 Hz
• 4.8 V Ni-Cd battery provides 90 minutes of emergency runtime
• Low-voltage disconnect, brownout protection, solid-state transfer
• Bi-color LED: green = normal, red = battery fault

Housing / Finish

• Steel recessed housing with flame-retardant thermoplastic trim (5 VA)
• White or black trim options; both paintable

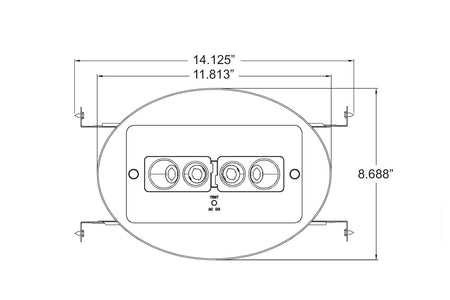

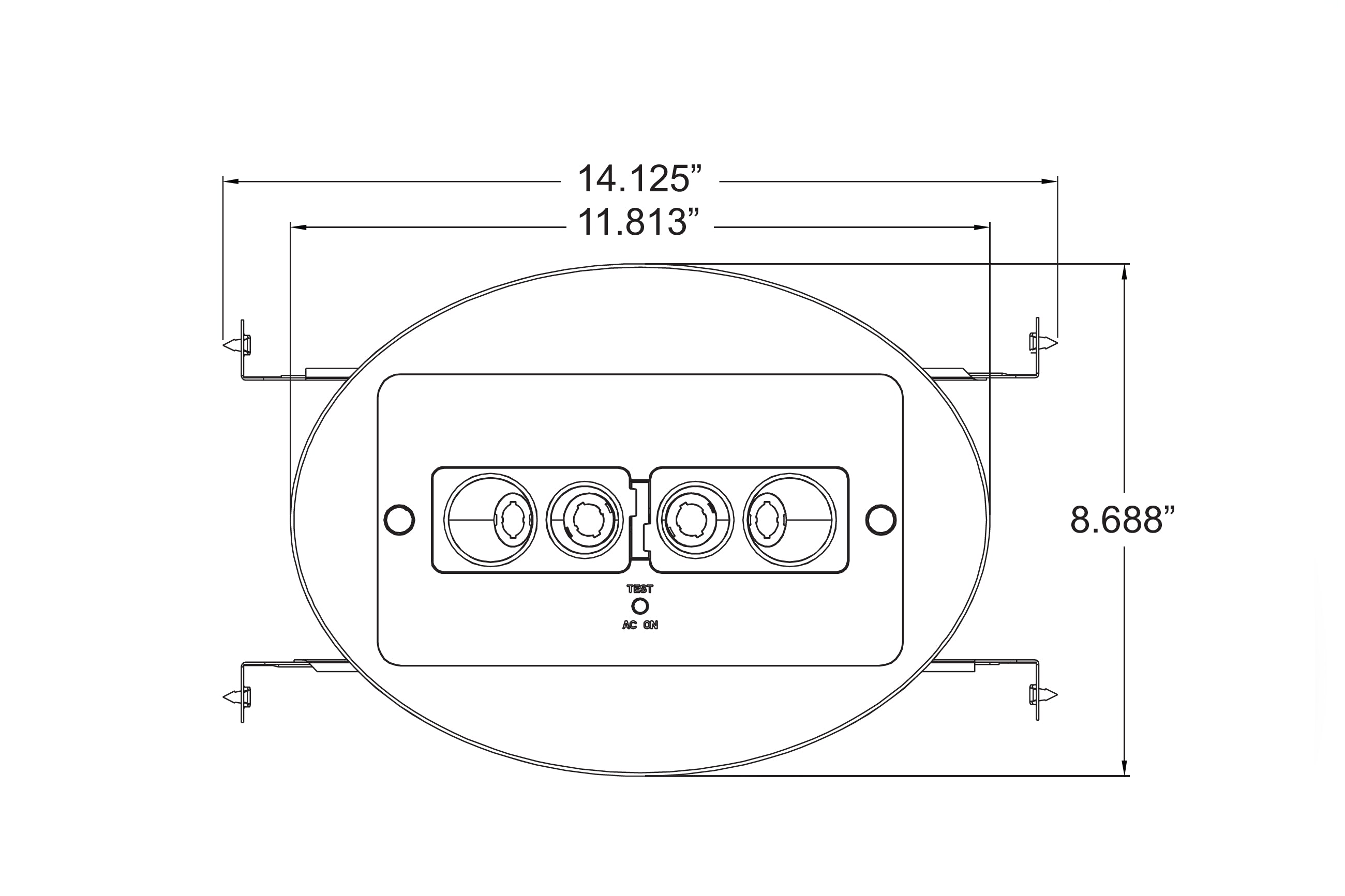

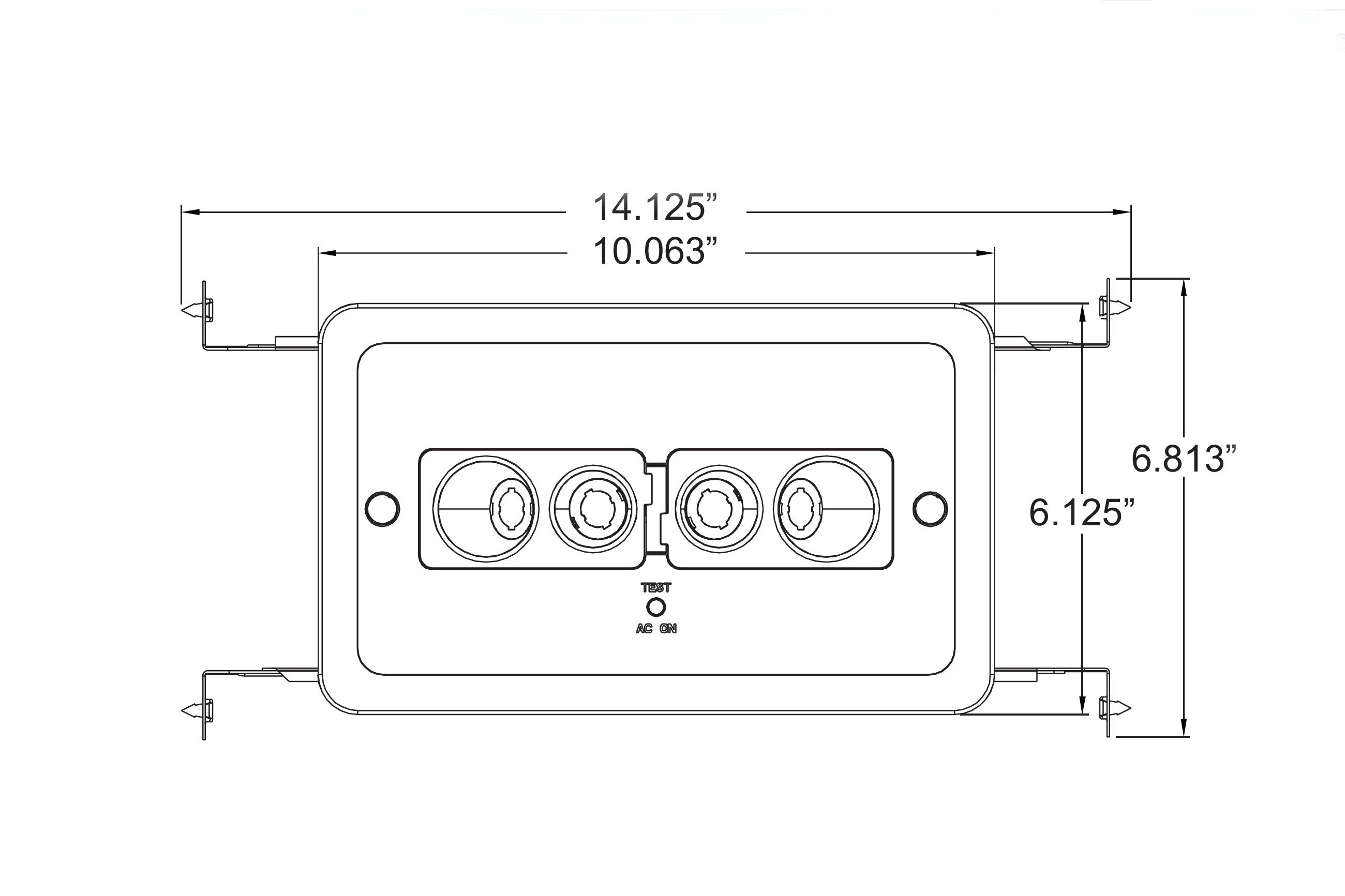

• Back-box depth: 2.75" • Total depth: 2.875"

Mounting

• Adjustable bar hangers extend to 24" for T-bar or joist mounting
• Top and side conduit entry points; pre-stripped AC leads included

Options

• G2 – Guardian™ self-diagnostics: monthly, semi-annual, annual testing
• WG-S – Wire guard • XG-1 – Polycarbonate protective guard

Warranty / Listings

• 5-year warranty on housing and electronics
• 5-year prorated warranty on Ni-Cd battery
• UL 924 listed; compliant with NFPA 101, NEC, OSHA, NYC, and CEC Title 20

Frequently Asked Questions

Where does the FRM mount?

It recesses into drywall or grid ceilings using the included bar hangers and fits flush with a slim trim plate.

How is the emergency light activated?

During a power loss, two LED optics tilt out automatically and illuminate egress paths with adjustable aiming.

What’s included in the box?

Each unit includes rectangular and oval trim plates, bar hangers, conduit entry points, and pre-stripped leads.

Is a self-testing version available?

Yes. The G2 option adds Guardian self-diagnostics with automatic monthly, semi-annual, and annual testing.

What’s the battery backup duration?

The FRM includes a Ni-Cd battery that provides 90 minutes of emergency lighting and recharges in 24 hours.
