Field-Selectable LED Exit & Emergency Combo – Remote-Capable Option

ILXC-RG Series – Field-Selectable Red/Green LED Exit & Emergency Combo

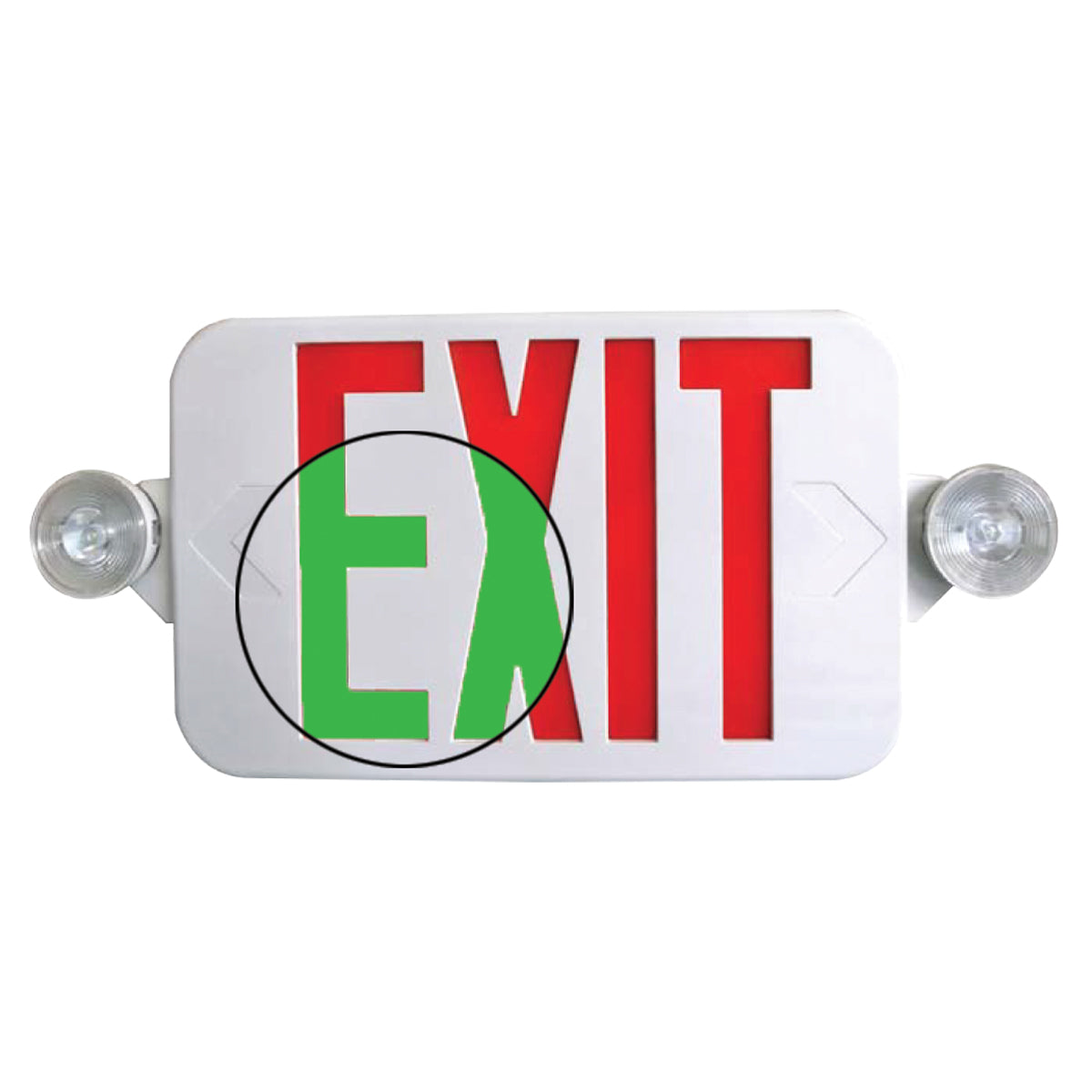

The ILXC-RG Thermoplastic LED Exit / Emergency Combo combines a selectable red or green EXIT legend with two fully adjustable 0.5W LED heads in a compact thermoplastic LED exit sign with emergency lights housing. Each unit comes with dual faceplates, a snap-fit canopy, and both red and green diffusers—making it easy to configure for single- or double-face, wall, ceiling, or end mounting. An optional remote-capable output (R) allows connection to one compatible 1W remote emergency light head for added egress coverage.

Download ILXC-RG LED Exit & Emergency Combo Spec Sheet (PDF)

Illumination

• 6" EXIT letters with a ¾" stroke, brightly illuminated by long-life LEDs
• Snap-out chevrons included for all configurations; red or green diffuser selectable via onboard DIP switch
• Two 0.5W LED exit sign with emergency lights provide effective egress lighting up to 15 feet apart when mounted at 7.5 feet with a 3-foot wide path

Electrical

• Universal 120 / 277 VAC input, 60 Hz (~1.2 W power draw)
• 3.6 V Ni-Cd battery delivers 90 minutes of emergency runtime; recharges in 24 hours
• Low-voltage disconnect, solid-state transfer, and push-to-test button
• R option includes 1 W remote output for one JLED-LO, RL52-LO, or MLED1-LO

Construction & Finish

• Injection-molded UL 94 5VA thermoplastic housing resists corrosion and impact
• Available in white or black finish
• Slim profile: 11.63" W × 7.88" H × 1.94" D

Mounting

• Wall mounting via backplate; ceiling or end mounting via snap-fit canopy
• Universal kit includes both faceplates, backplate, canopy, and diffuser sets
• Tool-free, snap-together design allows fast conversion from single to double face

Options / Accessories

• R – Remote-capable output (1 W @ 3.6 V) for compatible remote heads
• ER1-KIT-WH/BL – 1 ft pendant kit (white/black) • ER2-KIT-WH/BL – 2 ft pendant kit
• WG-S – Wire guard • XG-1 – Polycarbonate guard
• WPV-1 – Weatherproof/vandal-resistant enclosure

Warranty / Listings

• 5-year warranty on electronics and housing
• Ni-Cd battery covered by a 5-year prorated warranty
• UL 924 listed for damp locations (0?°C to 40?°C)
• CEC Title 20, NFPA 101, and NEC compliant

Frequently Asked Questions

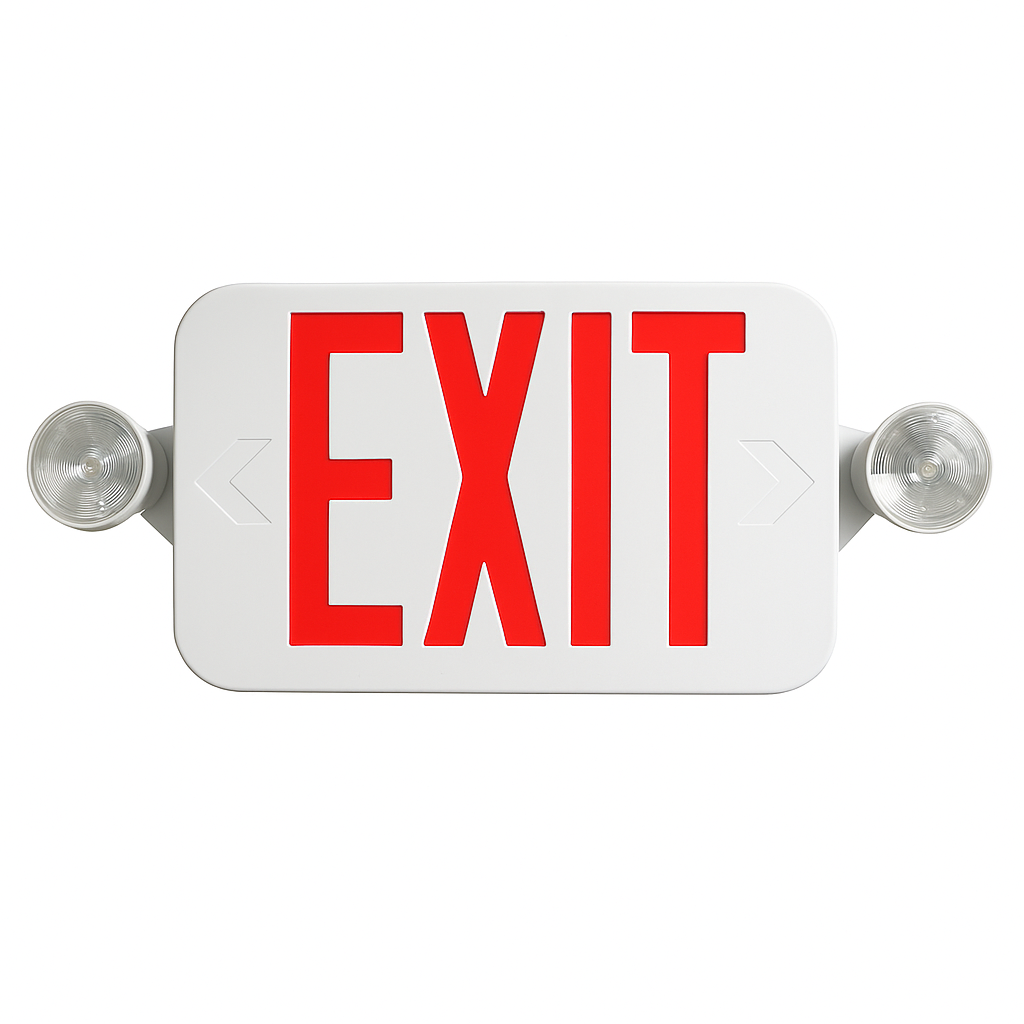

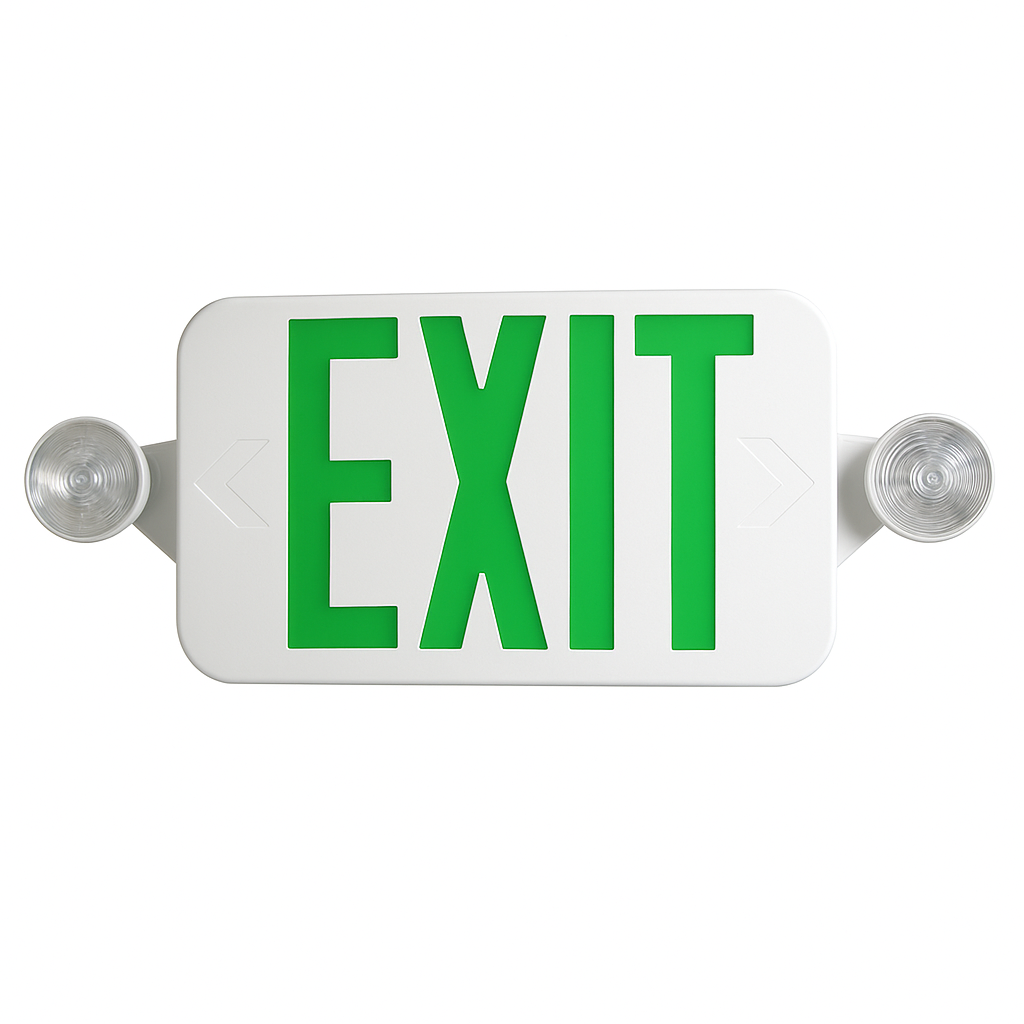

How do I change the EXIT color from red to green?

Use the internal DIP-switch to toggle between red and green legend colors without changing the diffuser panel.

Can this fixture power a remote head?

Yes. The R model provides 1 W of remote-capable output for a compatible JLED-LO, RL52-LO, or MLED1-LO head.

What mounting options are supported?

This combo supports wall, ceiling, and end mount LED exit sign with emergency lights configurations using the included hardware. All necessary mounting accessories come standard in the box for a hassle-free install.

Is this model Title 20 compliant?

Yes. The ILXC-RG meets California Energy Commission (CEC) Title 20 energy efficiency standards.

Can I use this fixture in a damp location?

Yes. It is UL 924 listed for damp locations and rated for 0?°C to 40?°C environments.

Product Features

• Battery Backup
• Brand: Exitronix
• Ceiling Mount
• Damp Location
• End Mount
• LED
• Product: ILXC
• Remote Capable
• Remote Heads
• Tamper Resistant
• Thermoplastic
• Exit Signs Combo
• Vandal Proof
• Wall Mount
