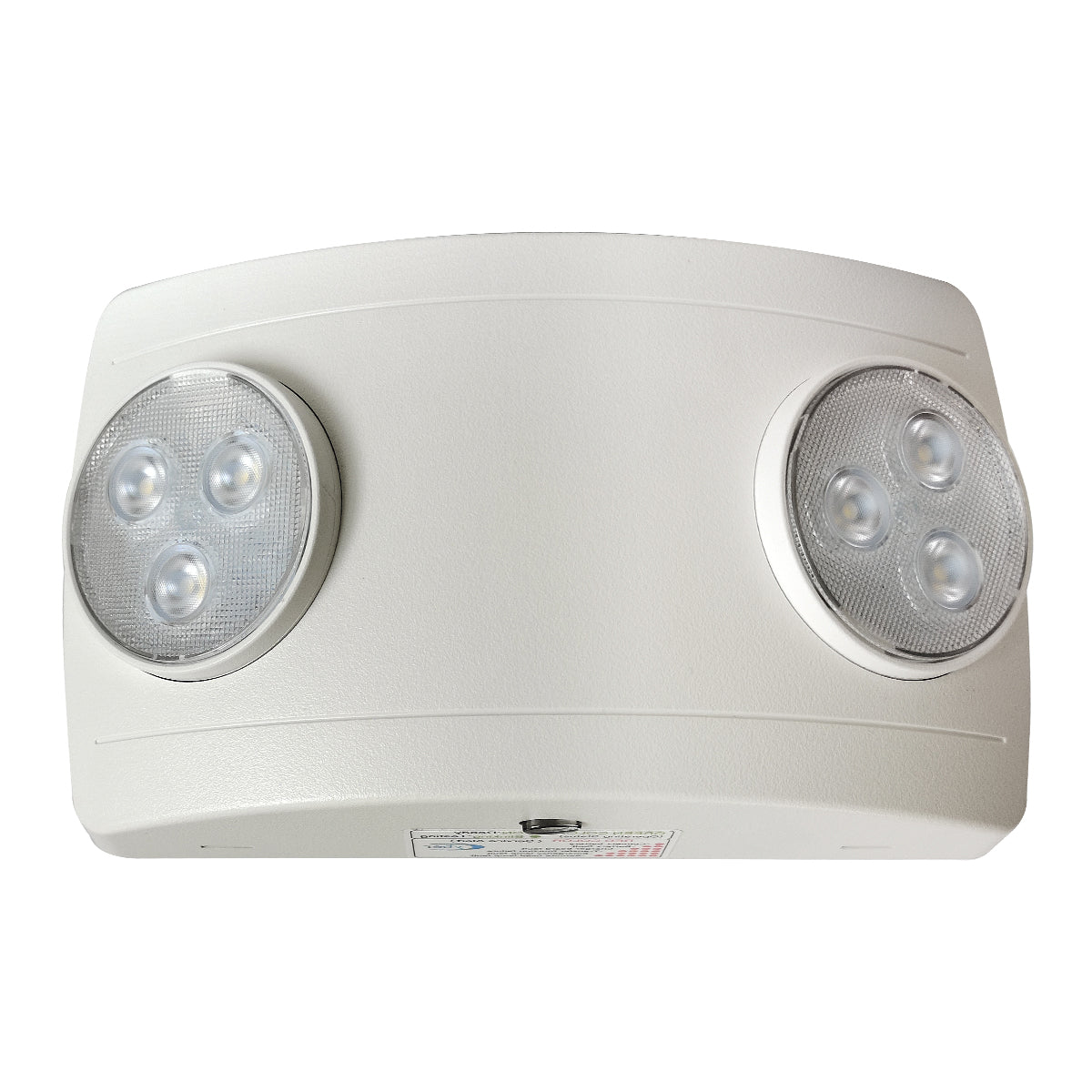

White curved dual-head LED emergency light with adjustable round heads, front angle view

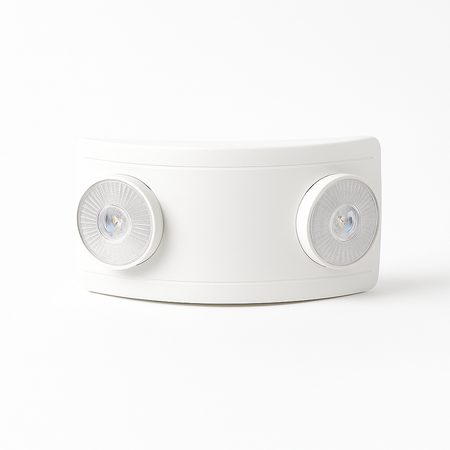

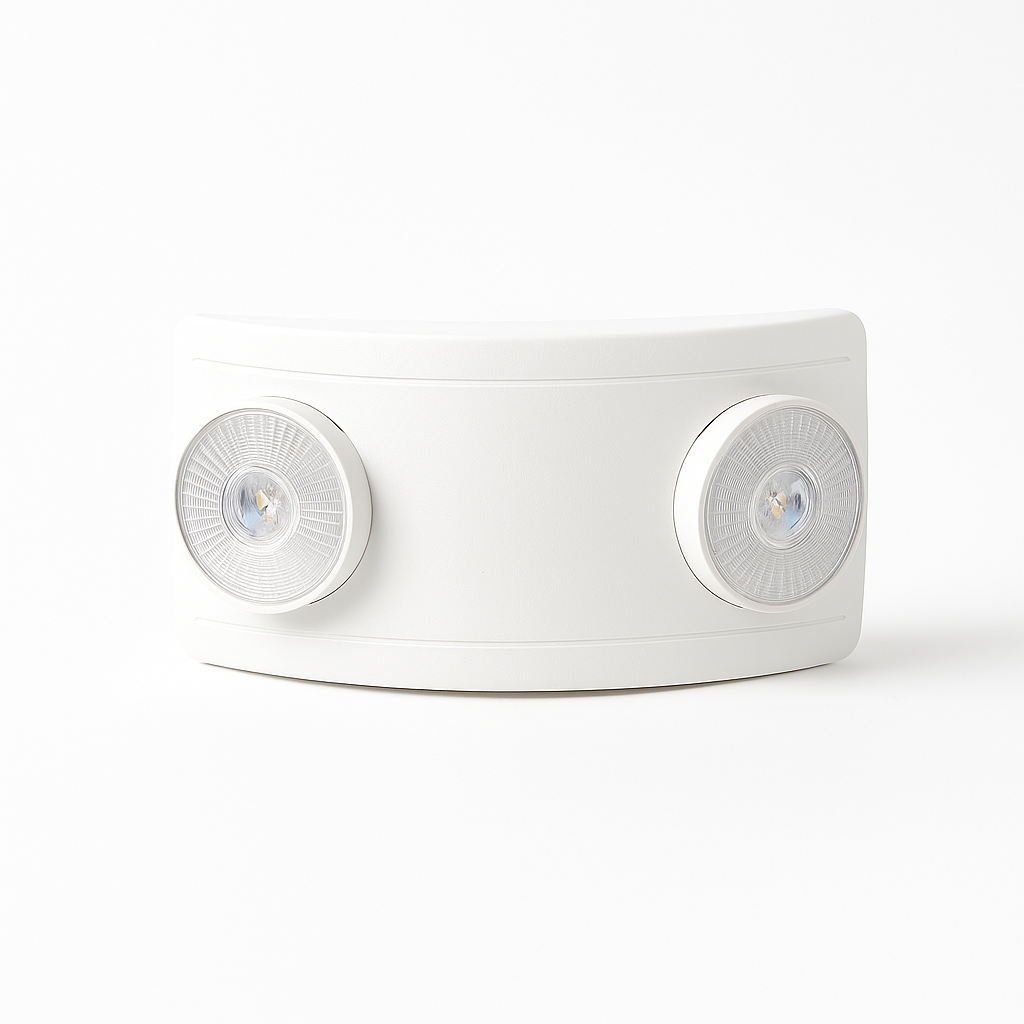

Ultracompact LED emergency light – front view with dual adjustable heads and test button

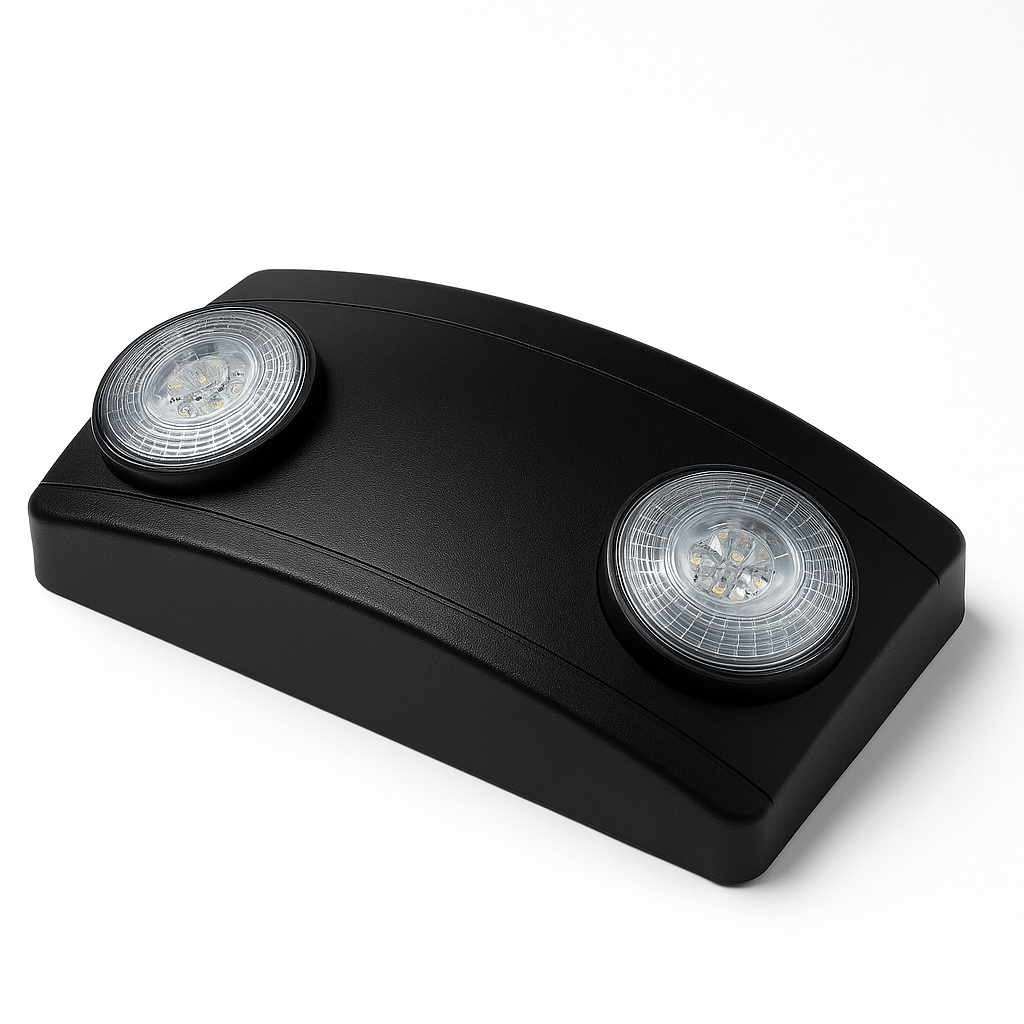

Black dual-head LED emergency light with adjustable round lamp heads, wall-mount housing

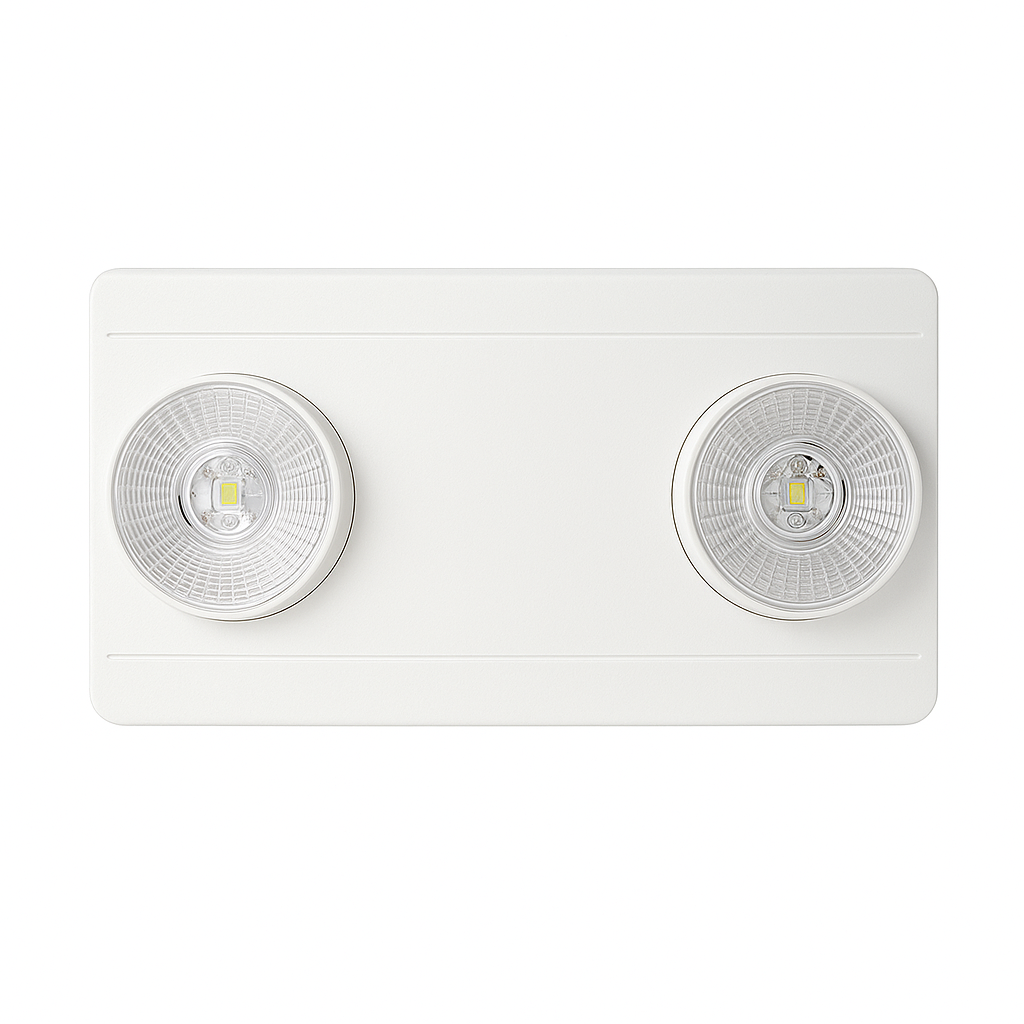

White rectangular dual-head LED emergency light, front view with prismatic lenses
White curved dual-head LED emergency light with adjustable round heads, front angle view
Ultracompact LED emergency light – front view with dual adjustable heads and test button
Black dual-head LED emergency light with adjustable round lamp heads, wall-mount housing
White rectangular dual-head LED emergency light, front view with prismatic lenses

Ultracompact LED Emergency Light – 1W or 1.5W, Remote-Capable

SKU: LED-51-BL
$45.99

Got questions?

Give us a call 800-847-1955!

Ultracompact LED Emergency Light - 120/277 VAC, 90-Min Battery, 2× 1 W (LED-51) / 2× 1.5 W (LED-52), Remote-Capable 2 W (LED-52 Opt.), UL 94 V-0, cULus 924 (Damp) - Features & Specs

The LED-51/52 Tempo Pro Ultracompact LED Emergency Lighting Unit delivers powerful, uniform egress lighting from a slim, flame-rated thermoplastic housing. Model LED-51 uses two 1 W heads (~220 lm total); LED-52 upgrades to two 1.5 W heads (~300 lm) with optional 2 W remote-capable output and Guardian™ self-test diagnostics. Fast J-box mounting supports wall or ceiling installs.

cULus 924 Damp Location 120/277 VAC 90-Min Runtime 2× 1 W (51) / 2× 1.5 W (52) Remote-Capable 2 W (52 Opt.) UL 94 V-0 5-Year Warranty

Key Features

  • Two fully adjustable LED heads: LED-51 (2×1 W ˜ 220 lm), LED-52 (2×1.5 W ˜ 300 lm)
  • Sample spacing @ 7.5' MH: LED-51 34' (3' path) / 28' (6' path); LED-52 41' (3' path) / 35' (6' path)
  • Dual-primary 120/277 VAC, 60 Hz input; maintenance-free Ni-Cd battery (LED-51/52)
  • 90-minute emergency run time; 24-hour recharge; solid-state transfer; LVD & brownout protection
  • Option G2 self-test/diagnostics (LED-52 only)
  • Option R2 remote capacity 2 W @ 3.6 VDC (LED-52 only), compatible with JLED / RL1-WP / RL52 heads
  • Injection-molded, corrosion-resistant UL 94 V-0 thermoplastic; finishes: white or black
  • Operating temp: 10–40 °C (50–104 °F); Damp Location listed
  • Universal back-plate knockout pattern for wall or ceiling mount; optional IHB bracket for strut/I-beam/pole mount
  • Compact size: 7.31" W × 4.25" H × 2.19" D

LED-51/52 Spec Sheet PDF Icon Download LED-51/52 Emergency Unit Spec Sheet (PDF)

Electrical

  • Input: 120/277 VAC, 60 Hz
  • Battery: Ni-Cd (LED-51/52); NiMH on LED-52-R2 remote-capable models
  • Diagnostics: G2 self-test on LED-52 (monthly + annual 90-min tests)

Mounting

  • Universal J-box back-mount for wall or ceiling
  • Optional IHB bracket for strut, I-beam, or pole mounting

Warranty / Listings

  • 5-year warranty on electronics & housing; battery 5-year prorated
  • cULus 924 Listed; meets NFPA 101 & NEC; Damp Location rated
