Thermoplastic LED Emergency Light – Dual 1.5W Heads, 90 Min Backup

Thermoplastic LED Emergency Light - Dual 1.5W Heads, 25 ft Spacing, 3.4W Remote Option - Features & Specs

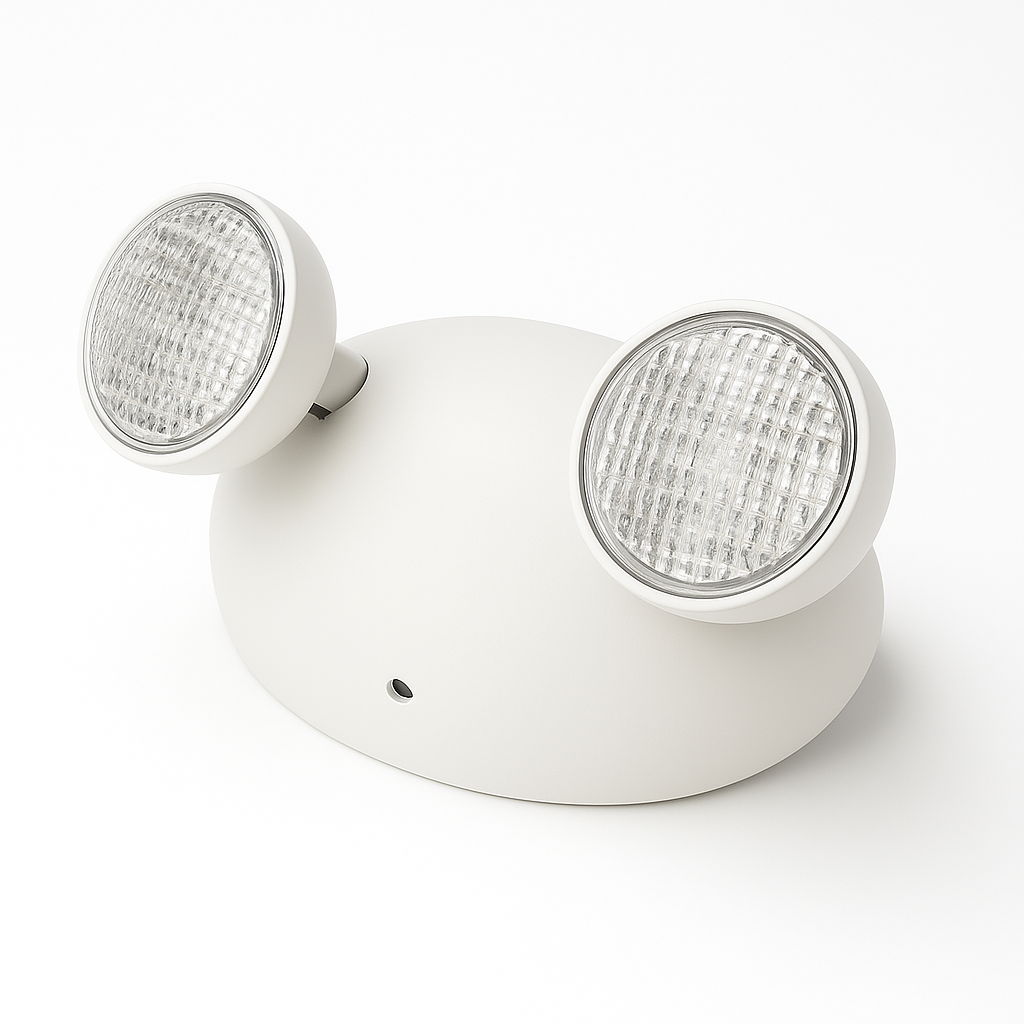

The LED-95 Thermoplastic LED Emergency Lighting Unit delivers high-output egress illumination in a compact, flame-rated housing. Dual 1.5 W LED lamp heads provide up to 25 ft spacing on a 3 ft path at standard mounting height. A 90-minute Ni-Cd battery, optional R remote-capable output, and Guardian™ G2 self-diagnostics make this unit a strong choice for code-compliant egress lighting in commercial, office, and retail interiors.

Key Features

• Two fully adjustable 1.5 W LED heads; spacing guideline 25' O.C. on a 3' path at 7.5' MH (approx. 20' on a 6' path).
• 90-minute emergency runtime; typical 24-hour recharge.
• Optional 3.4 W remote capacity (R) for a single RL52 or up to two MLED remote heads.
• Guardian™ G2 self-test / diagnostics available (automated monthly/annual testing).
• Dual-voltage 120/277 VAC input, solid-state transfer, brownout protection, and low-voltage disconnect.
• Damp-location rated for 0–40 °C (32–104 °F).
• UV-stable, flame-retardant UL 94 V-0 thermoplastic housing with tool-less access.
• Universal J-box pattern with rear keyholes for wall or ceiling mounting; any orientation.
• Finishes: White or Black (BL).
• Listings: cULus 924, CEC compliant (note: G2 option is not CEC-listed per spec); 5-year warranty (battery prorated 5-year).
• Bonus: LED-95-*-R runs 180 minutes in emergency mode if no remote load is connected.

Download LED-95 Emergency Light Spec Sheet (PDF)

Illumination

• Two fully adjustable 1.5 W LED lamp heads
• Spacing guidance: 25' O.C. on a 3' path at 7.5' MH; approx. 20' O.C. on a 6' path
• Long-life LEDs for uniform egress lighting

Electrical

• Universal 120/277 VAC, 60 Hz input
• Maintenance-free Ni-Cd battery; 90-minute emergency runtime (typ. 24-hour recharge)
• R – 3.4 W remote capacity for RL52 or (2) MLED heads
• G2 – Guardian™ self-test diagnostics (automated testing with visual status)
• Brownout protection, solid-state transfer, and low-voltage disconnect

Mounting

• Universal J-box mounting pattern with rear keyholes
• Surface-mount in any orientation: wall or ceiling
• Tool-less housing access for quick install and maintenance

Housing

• Injection-molded thermoplastic housing, UL 94 V-0 flame-rated

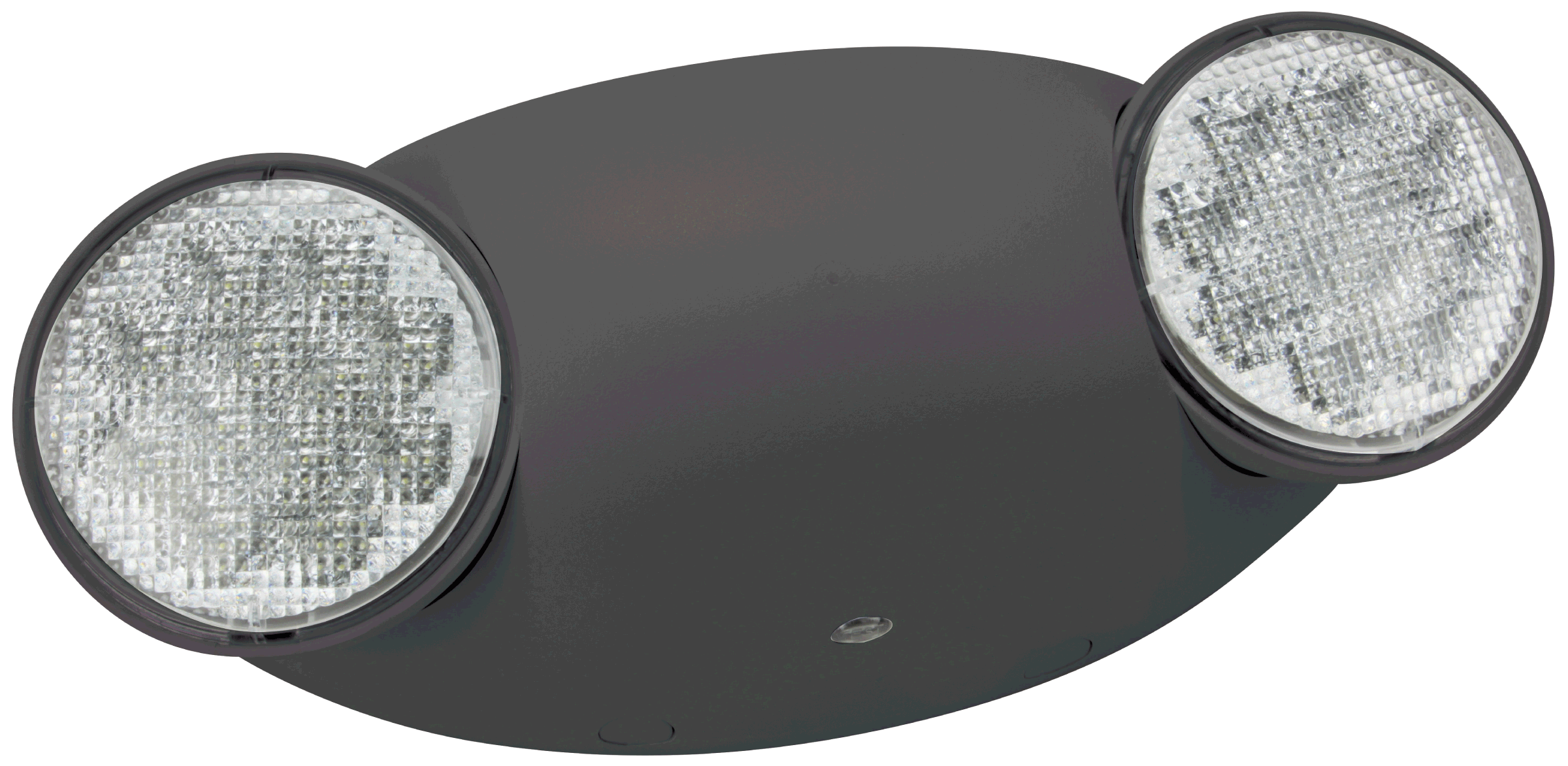

• Finishes: white or black (BL)
• Damp-location rating: 0–40 °C (32–104 °F)

Dimensions

• 9.0" W × 4.8" H × 2.8" D

Warranty / Listings

• 5-year warranty on electronics and housing; 5-year prorated warranty on Ni-Cd battery
• cULus 924 listed for damp locations; meets NEC & NFPA 101
• CEC compliant (per spec; G2 option not CEC-listed)

Frequently Asked Questions

What spacing can I expect?

At a typical 7.5' mounting height, plan for 25' center-to-center on a 3' path (about 20' on a 6' path).

Is this fixture remote-capable?

Yes. The R version provides 3.4 W to power one RL52 or up to two MLED remote heads.

Can it self-test for compliance?

Yes. The G2 option adds Guardian™ self-diagnostics with automated monthly/annual testing and visual fault indicators.

Where can I install this light?

It’s UL 924 listed and damp-location rated for indoor commercial use (0–40 °C).

Anything else to know about runtime?

Models with the R option will run up to 180 minutes in emergency mode if no remote load is connected.

Product Features

• Adjustable Heads
• Battery Backup
• Brand: Exitronix
• CEC Compliant
• Ceiling Mount
• Damp Location
• Dual Heads
• Housing Color: Black
• Housing Color: White
• LED
• Ni-Cd
• Product: LED-95
• Remote Capable
• Remote Heads
• Self Testing
• Thermoplastic
• UL 924
• Universal Mount
• Voltage 120/277V
• Wall Mount
