Thermoplastic LED Emergency Light – Dual 1W Heads, 90 Min Backup

Thermoplastic LED Emergency Light — 30 ft Spacing, Remote‑Capable Options, 90‑min Battery — Features & Specs

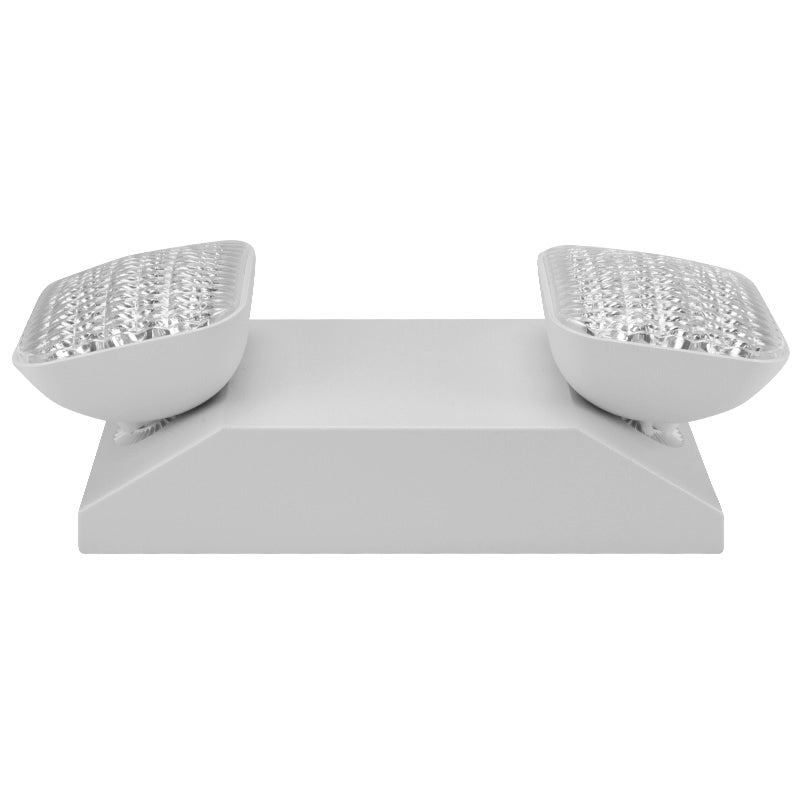

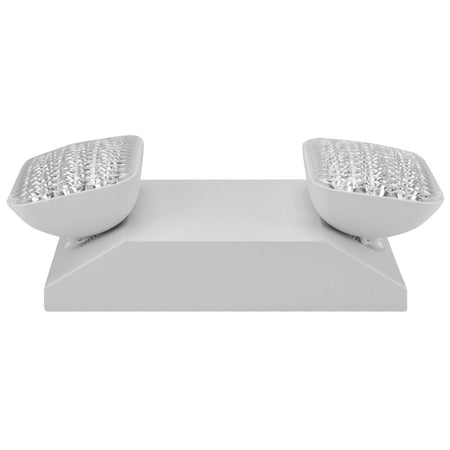

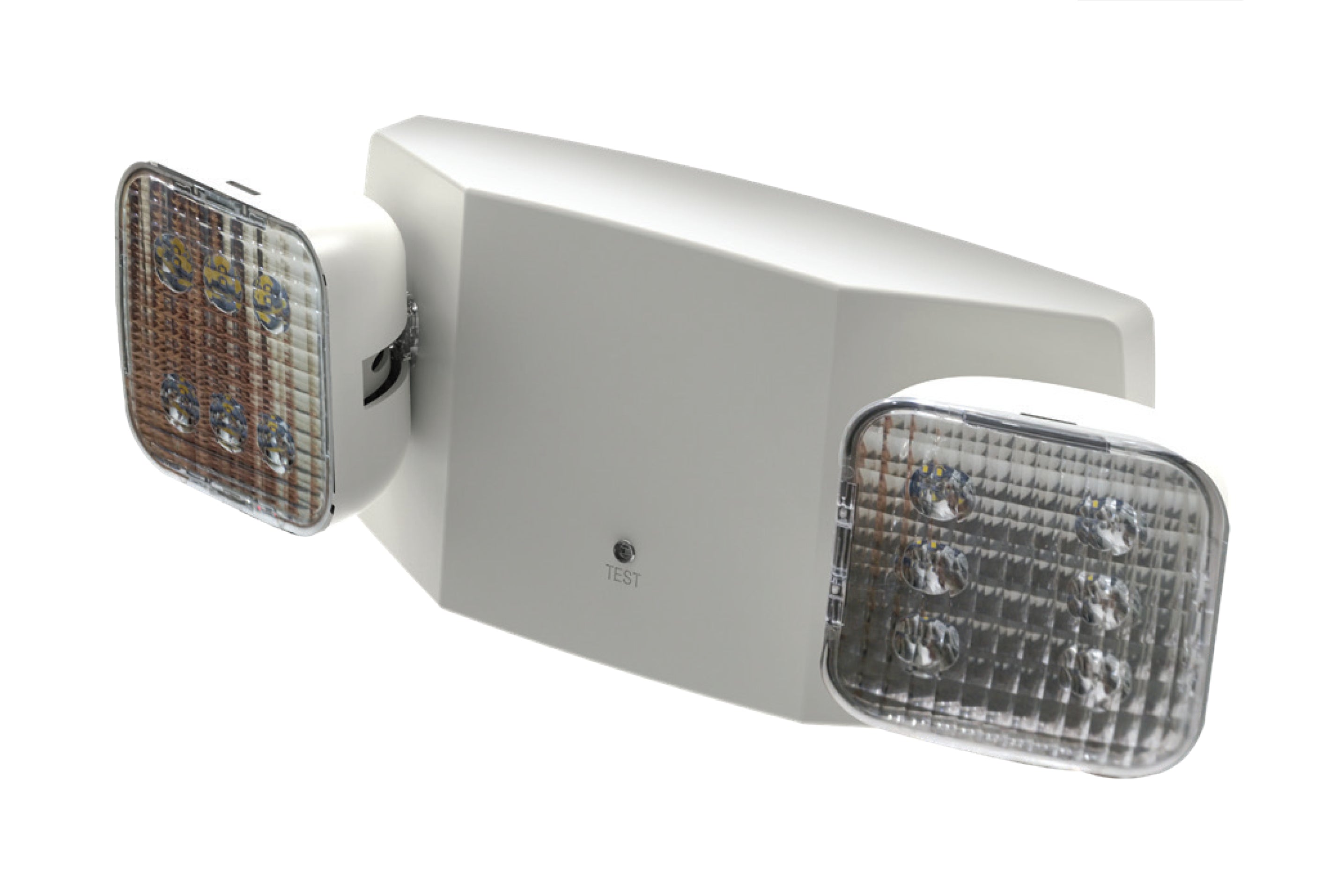

The LED‑90 thermoplastic LED emergency light delivers high‑output egress lighting in a contemporary, low‑profile housing. It uses dual 1 W adjustable LED heads, a 90‑minute battery, and offers optional remote‑capable and self‑testing models. With flexible wall/ceiling installation and code‑compliant performance, the LED‑90 is ideal for interior corridors, offices, and light‑commercial spaces.

Key Features

• Dual 1 W fully adjustable LED heads; on‑center spacing guideline 30' on a 3' path at 7.5' MH (design‑aid; verify with photometrics).
• Output by model: LED90/LED90‑R (Ni‑Cd) up to 240 lm; LED90‑G2 (LiFePO₄) 210 lm; LED90‑G2‑R (LiFePO₄) 460 lm (per spec).
• 90‑minute emergency runtime; typical 24‑hour recharge.
• 120/277 VAC dual‑voltage input; solid‑state transfer; LVD; brownout protection (G2/G2‑R).
• Options: R = 1.5 W remote capacity; G2‑R = 2 W remote + self‑diagnostics.
• Remote head compatibility (per spec): JLED, RL1‑WP, RL52.
• UV‑stable, UL 94 5VA flame‑rated thermoplastic; tool‑less access.
• Damp‑location rated for 10–40 °C (50–104 °F).
• Mounts to a universal J‑box on walls or ceilings; any orientation.
• Finishes: White or Black (BL).

Related Emergency Light Guides

Spec Sheet

Download LED‑90 Emergency Light Spec Sheet (PDF)

Illumination

• Two 1 W fully adjustable heads; output up to 240 lm (Ni‑Cd), 210 lm (G2), 460 lm (G2‑R) per model spec.
• Design‑aid spacing: 30' O.C. on a 3' path at 7.5' MH (verify with site photometrics).
• Long‑life LEDs for uniform egress lighting.

Electrical

• Universal 120/277 VAC, 50/60 Hz input.
• Maintenance‑free Ni‑Cd battery (standard) or LiFePO₄ (G2/G2‑R).
• Low‑voltage disconnect; push‑to‑test; brownout protection on G2/G2‑R.
• Remote capacity: R = 1.5 W; G2‑R = 2 W.

Mounting

• Universal J‑box pattern with rear keyholes for wall or ceiling mounting.
• Installs in any orientation; tool‑less housing access.

Housing

• Injection‑molded thermoplastic, UL 94 5VA flame‑rated.

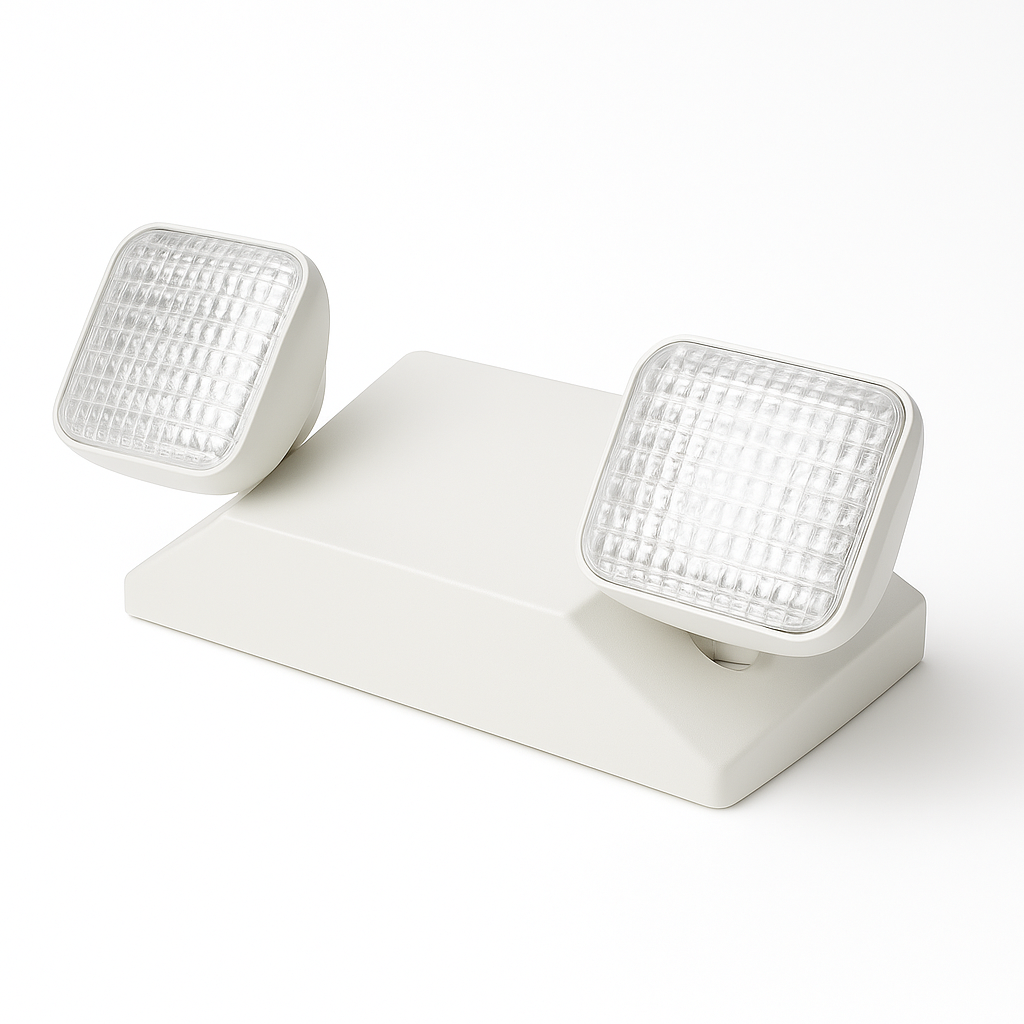

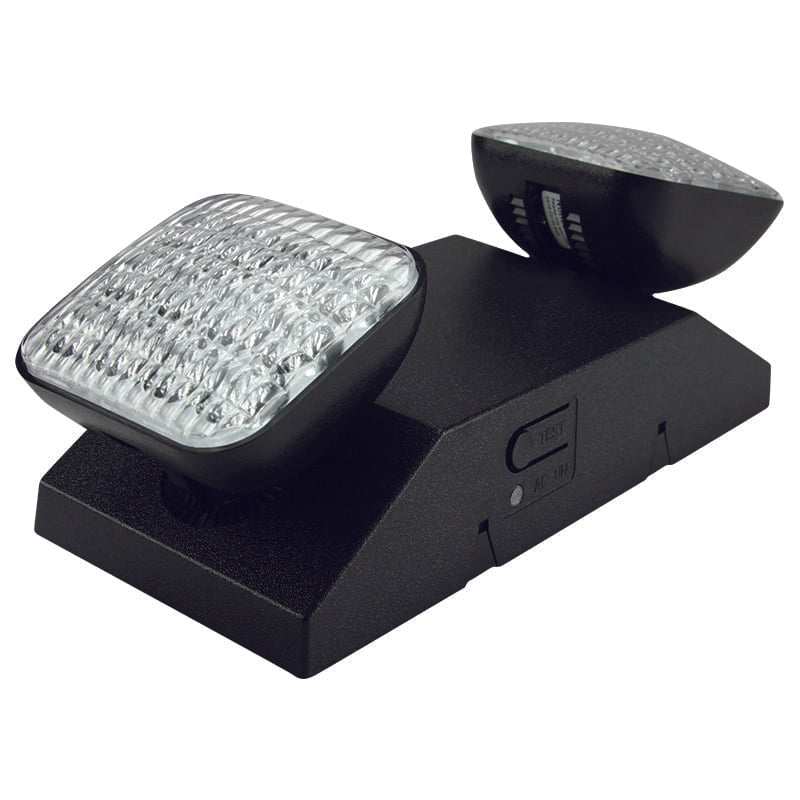

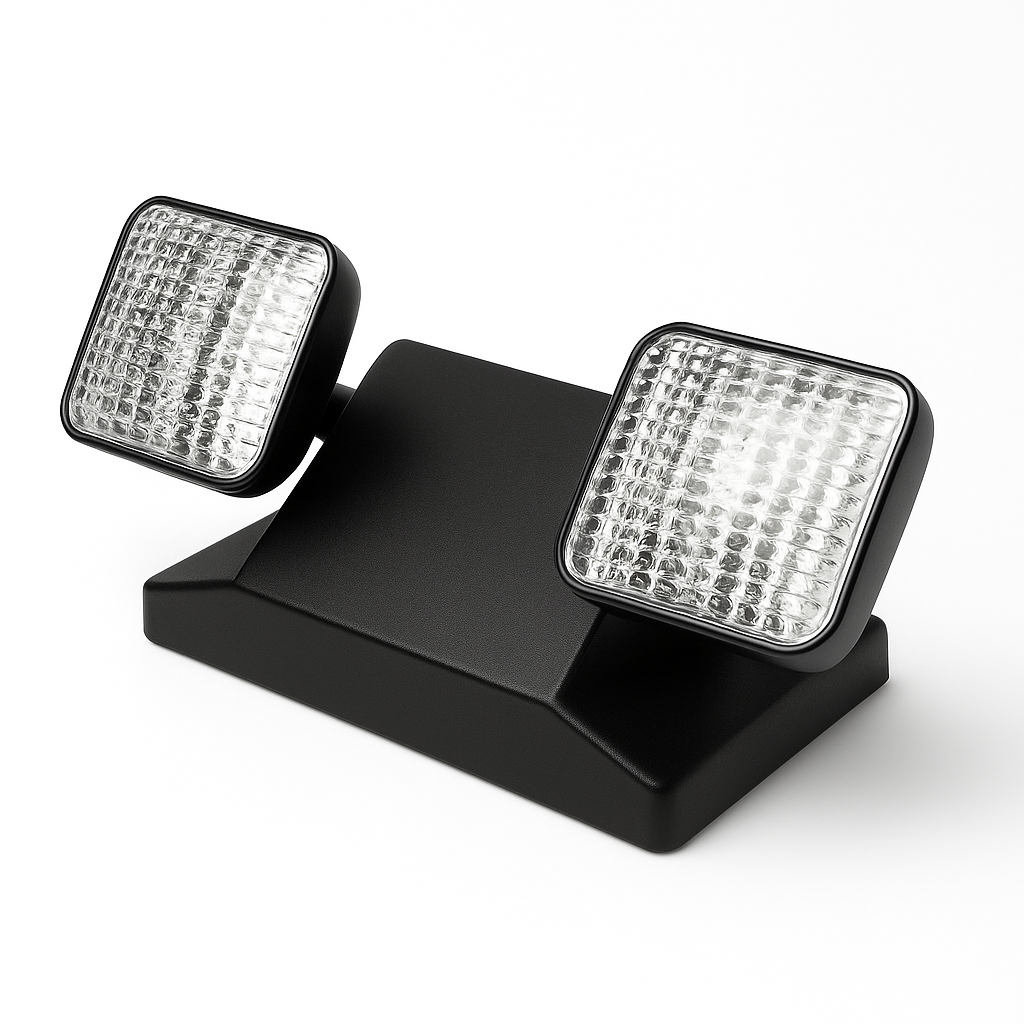

• Finishes: White (standard) or Black (BL).
• Damp‑location rating: 10–40 °C (50–104 °F).

Dimensions

• 8.88" W × 4.50" H × 2.88" D

Options / Accessories

• Self‑test / self‑diagnostics: G2 option
• Remote‑capable: R (1.5 W) or G2‑R (2 W) — works with JLED, RL1‑WP, RL52 remotes
• Wire Guard (back mount): WG‑S; Wet‑Location/Vandal Guard (back mount): WPV‑2; Poly Guard (back mount): XG‑90

Warranty / Listings

• 5‑year warranty on components; 5‑year prorated battery warranty.
• cULus 924 listed; CEC compliant; meets NEC and NFPA 101.

Frequently Asked Questions

What’s the difference between standard and G2‑R models?

G2‑R uses a LiFePO₄ battery, adds 2 W remote capacity, and includes Guardian™ self‑diagnostics for automated testing.

Can I mount it on ceilings or walls?

Yes. The universal backplate supports J‑box mounting on walls or ceilings in any orientation.

How long does the battery last in an outage?

All models provide at least 90 minutes of emergency illumination and typically recharge in 24 hours.

Is this fixture remote‑capable?

Yes. Models with R or G2‑R provide 1.5 W or 2 W of power for compatible remote heads (JLED, RL1‑WP, RL52).
