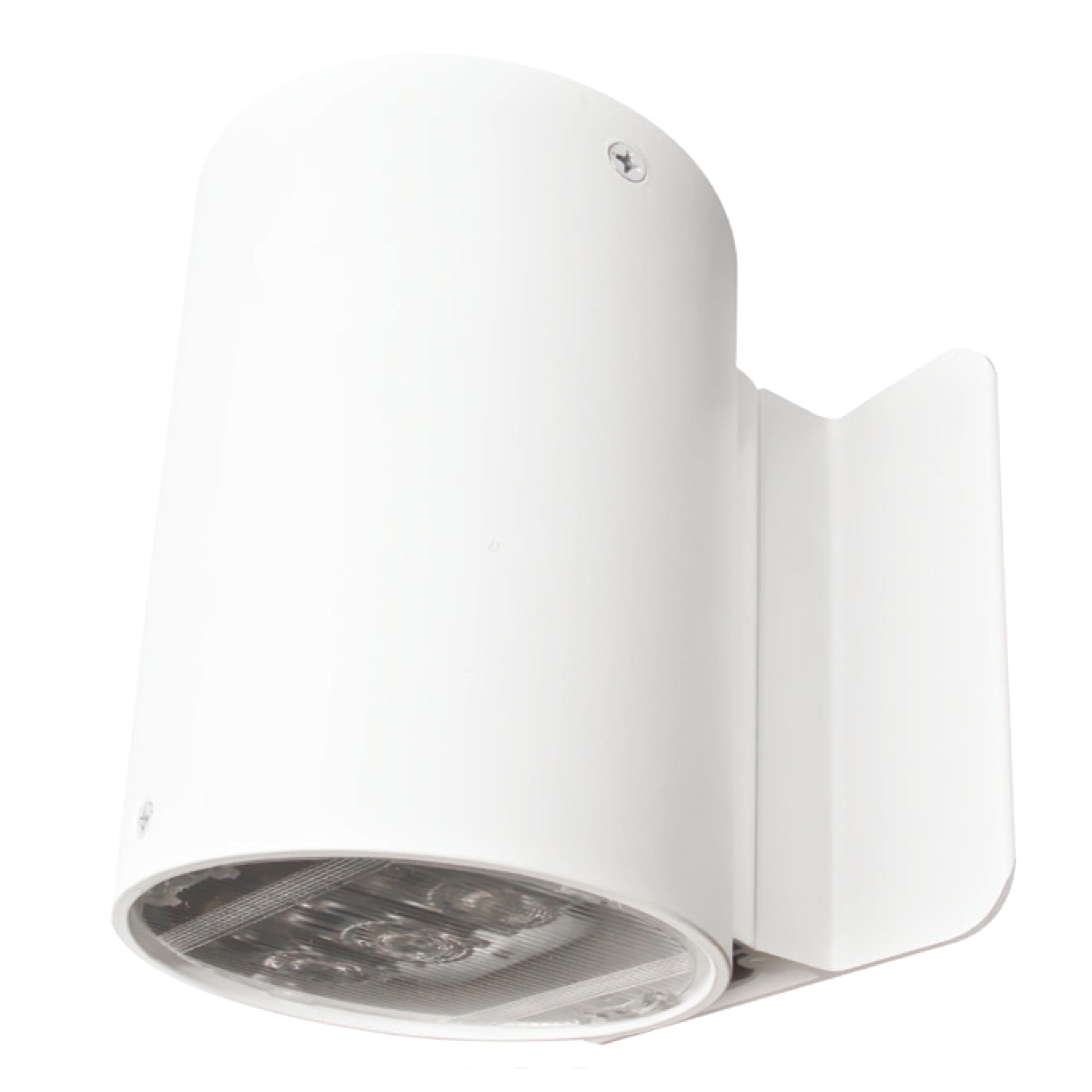

Architectural emergency down-light with cylindrical white housing and prismatic lens
NF1 Cylinder LED Emergency Egress Lighting White
Architectural emergency down-light with cylindrical white housing and prismatic lens
NF1 Cylinder LED Emergency Egress Lighting White

Architectural Cylinder Emergency Down-Light – Luxeon LEDs, 55 ft Spacing

SKU: NF1-WB-7L-WH-PM12
$665.76

Got questions?

Give us a call 800-847-1955!

Architectural Cylinder LED Emergency Down‑Light — 50–55 ft Spacing, 7 W / 10.5 W Luxeon LEDs — Features & Specs

The NF1 Series Architectural Cylinder Emergency Light blends contemporary styling with code‑compliant performance. This sleek surface‑mount down‑light features a white powder‑coated extruded‑aluminum housing and a heat‑ and impact‑resistant prismatic lens that delivers up to 55 ft spacing. Powered by high‑output Luxeon LEDs and a long‑life NiMH battery, it’s ideal for hotels, corridors, and retail spaces requiring both style and emergency protection. Explore our architectural emergency lights and LED emergency lighting.

UL 924 90‑min Backup 120/277 VAC Architectural Down‑Light Ceiling / Wall Pendant (opt.) Damp Location (opt.) Self‑Testing (opt.)

Key Features

  • Design‑aid spacing at 9 ft mounting height: up to 55 ft on‑center (see spacing table on spec sheet).
  • High‑efficacy Luxeon LEDs with prismatic polycarbonate lens for uniform egress coverage.
  • Field‑selectable outputs: 7 W (to ~50 ft) or 10.5 W (to ~55 ft).
  • Dual‑voltage 120/277 VAC input; low‑voltage disconnect, brownout, overload & short‑circuit protection.
  • Maintenance‑free NiMH battery provides 90‑minute emergency runtime; ~24‑hour recharge.
  • Mounts to ceiling or wall; optional 6" (PM6) or 12" (PM12) pendant kits.
  • Options: G2 self‑test/diagnostics; SEC120 / SEC277 PathSafe 50% night‑light; DR damp‑location rating.
  • Meets Build America Buy America (BABA) requirements.

Related Emergency Light Guides

Mounting Options: Ceiling • Wall • Pendant Self-Testing Emergency Lights — Auto-Test & Compliance

Spec Sheet

Download NF1 Cylinder Emergency Light Spec Sheet (PDF)

Illumination

  • High‑performance Luxeon white LEDs (~5600 K) with prismatic polycarbonate lens.
  • On‑center spacing at 9 ft MH: 7L ≈ 50 ft (3 ft path) / 40 ft (6 ft path) / 25 ft (10 ft path); 10L ≈ 55 ft / 50 ft / 40 ft.

Electrical

  • Universal 120/277 VAC, 50/60 Hz input.
  • Maintenance‑free NiMH battery — 90‑minute emergency operation; ~24‑hour recharge.
  • Low‑voltage disconnect; brownout, overload & short‑circuit protection.

Mounting

  • Surface ceiling mount using 4" or 3.5" J‑box.
  • Optional pendant kits: 6" (PM6) or 12" (PM12).
  • Available as surface‑mount (SM) or wall‑mount (WM) configurations.

Housing / Finish

  • Extruded‑aluminum cylinder with 5" canopy; prismatic polycarbonate lens.
  • White powder‑coated finish (paintable to match décor).

Options

  • G2 — Guardian self‑test / diagnostics.
  • SEC120 / SEC277 — PathSafe 50% night‑light circuit.
  • DR — Damp‑location rating (0 °C – 40 °C).

Dimensions

  • 4" diameter × 6.3" H cylinder; 5" canopy.

Warranty / Listings

  • 5‑year warranty on electronics and housing; 5‑year prorated NiMH battery warranty.
  • ETL listed to UL 924; meets NEC & NFPA 101.
