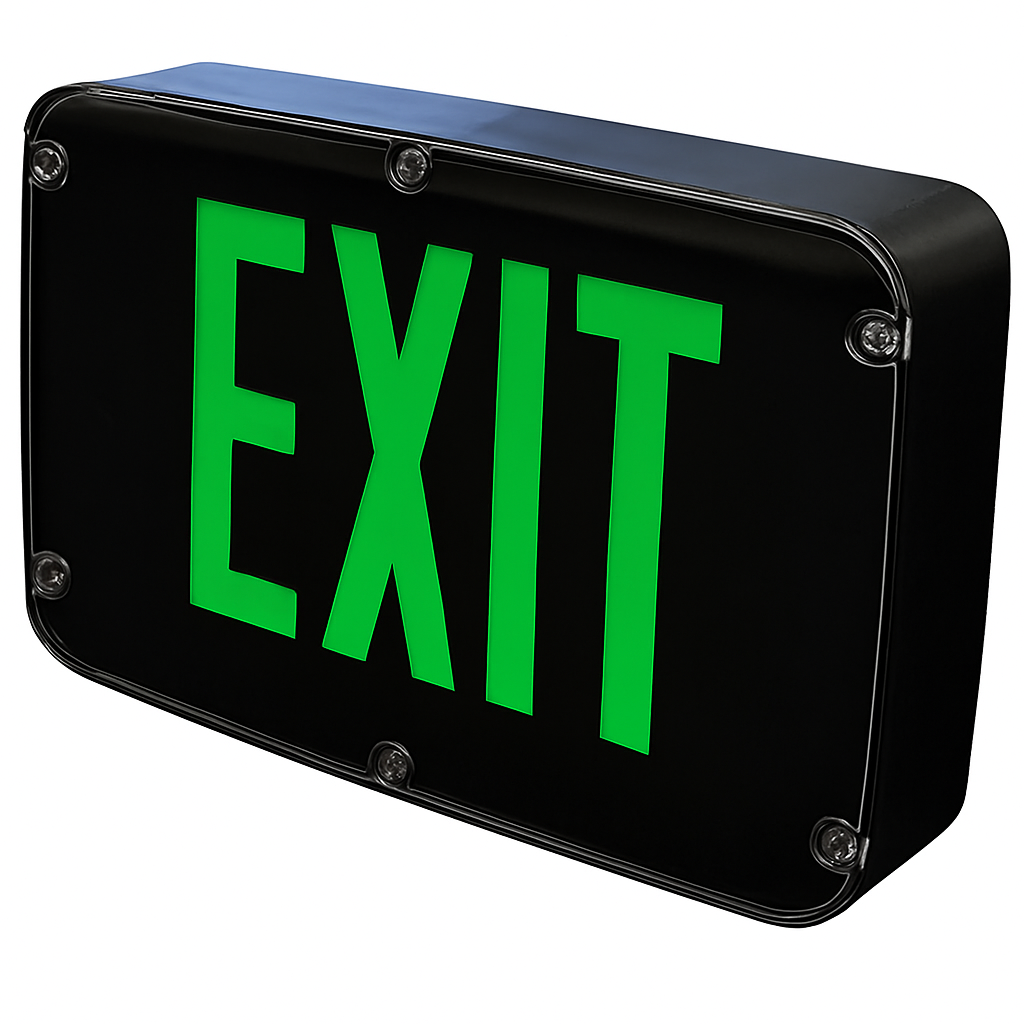

Green NEMA 4X LED exit sign with Black housing

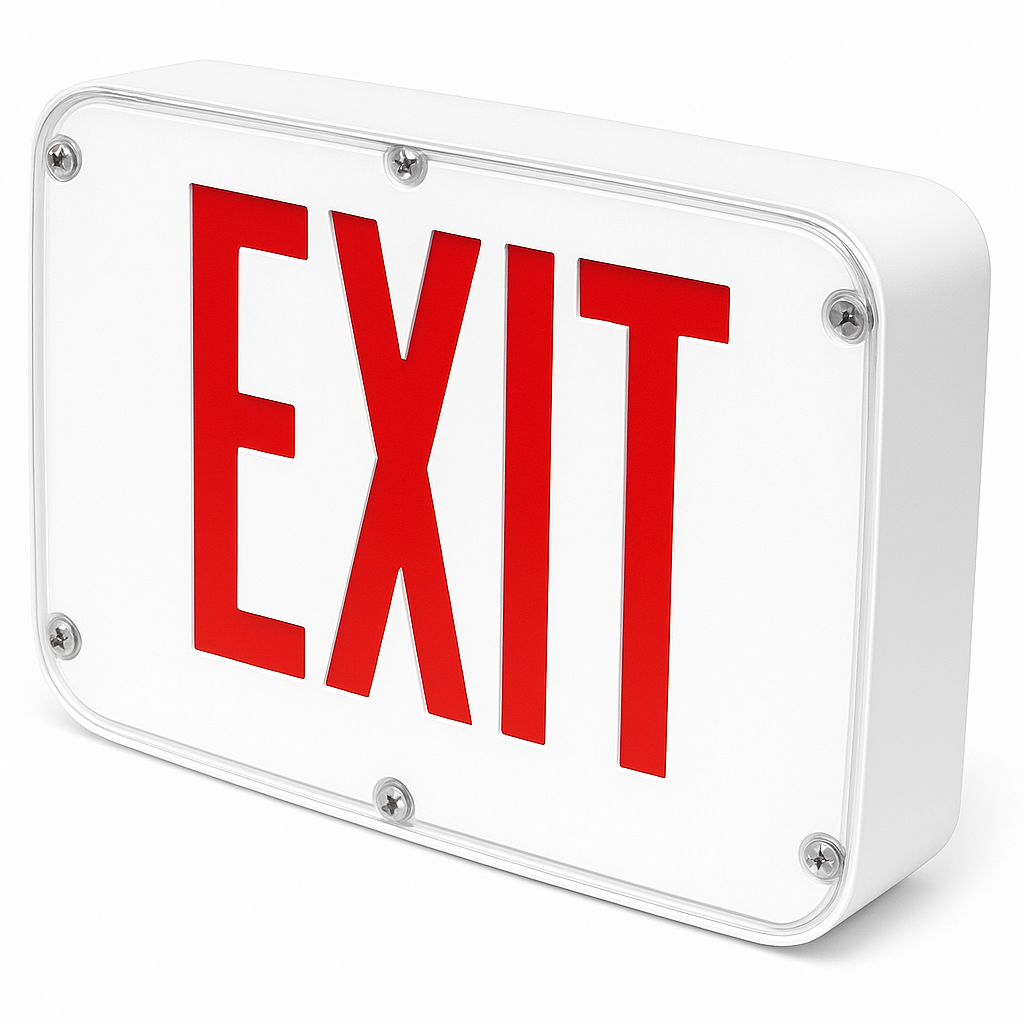

Red NEMA 4X LED exit sign with White housing

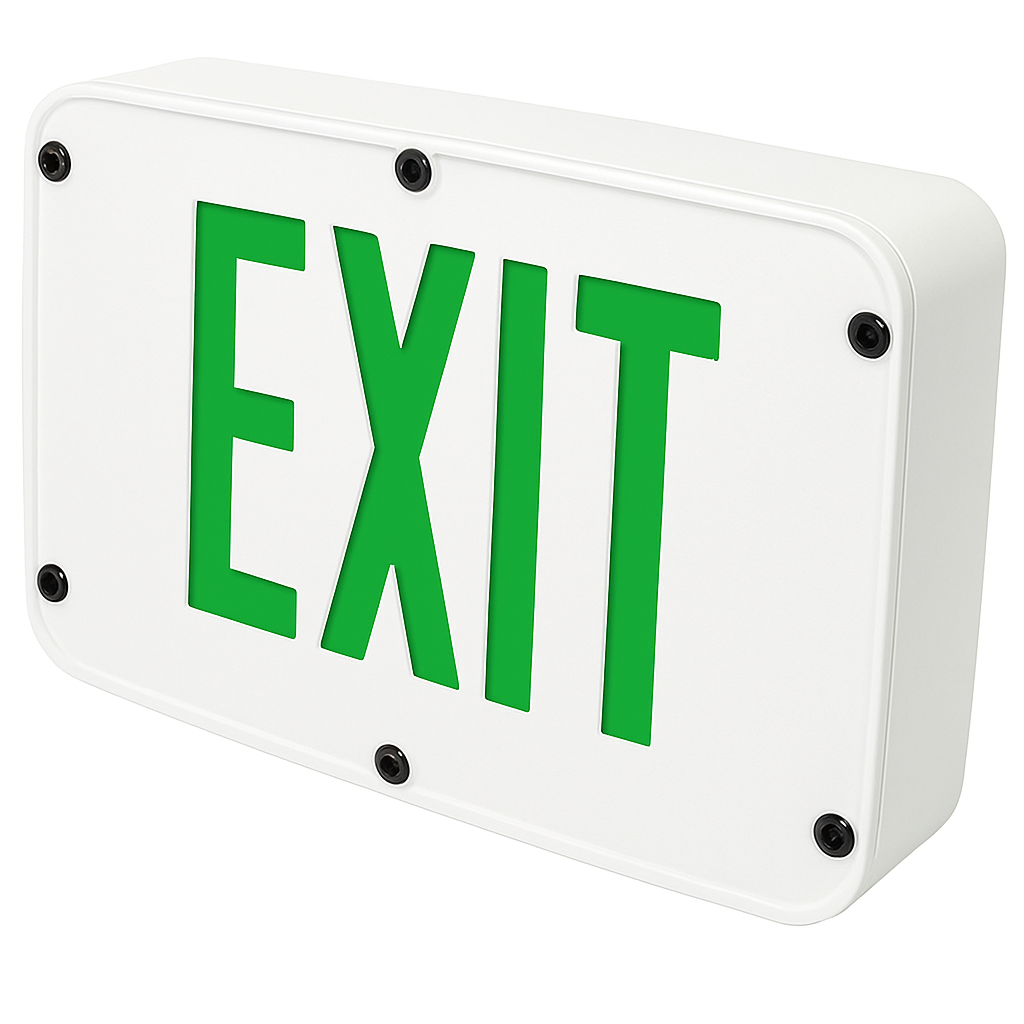

Green NEMA 4X LED exit sign with White housing
Red NEMA 4X LED exit sign with Black housing
Green NEMA 4X LED exit sign with Black housing
Red NEMA 4X LED exit sign with White housing
Green NEMA 4X LED exit sign with White housing

NEMA 4X LED Exit Sign – IP66, UL-EPH, Food-Zone & Wet Location Rated - Face: Single - Legend-Color: Red

SKU: NXFX-1-LB-G-BL
$289.81

Got questions?

Give us a call 800-847-1955!

NEMA 4X / UL-EPH LED Exit Sign - IP66, Universal Mount, 90-min Battery - Features & Specs

The NXFX Series NEMA 4X / UL-EPH LED Exit Sign is purpose-built for hose-down, industrial, and food-service spaces. A sealed polycarbonate enclosure protects high-intensity red or green LEDs behind a fully illuminated legend. The IP66-rated housing is UL-EPH classified and CEC Title 20 compliant. Battery models include a touchless magnetic test switch (non-AC/WB), and every unit ships with universal mounting hardware and your choice of AC-only (LB) or 90-minute Ni-Cd emergency battery backup (WB).

UL 924 IP66 / Wet Location NEMA 4X Battery Backup 120/277 VAC Face: Single / Double Chevron Knockouts Tamper Resistant (opt.) Universal Mount CEC Title 20

Key Features

  • NEMA 4X sealed polycarbonate enclosure with stainless hardware; IP66 for hose-down areas.
  • UL-EPH Classified for food-service/splash-zone environments; UL 924 Listed for wet locations.
  • High-intensity red or green LEDs; fully illuminated 6″ legend with 3/4″ stroke; field-selectable chevrons.
  • Power: LB (AC-only) or WB (Ni-Cd battery) with 90-minute emergency runtime; 24-hour recharge.
  • Touchless magnetic test switch and bi-color status LED on non-AC (WB) models.
  • 120/277 VAC dual-primary input; low-voltage disconnect and solid-state charger.
  • Universal back / end / top mounting; polycarbonate canopy included.
  • Finishes: Black (BL) or White (WH); single-face or double-face configurations.

Illumination

  • Long-life, high-intensity red or green LEDs exceed UL 924 brightness and uniformity requirements; 6″ letters, 3/4″ stroke with field-selectable chevrons. :contentReference[oaicite:0]{index=0}

Electrical

  • Dual-voltage input: 120/277 VAC, 60 Hz. :contentReference[oaicite:1]{index=1}
  • WB battery models: maintenance-free Ni-Cd, 90-minute emergency run time; 24-hour recharge; touchless magnetic test switch. :contentReference[oaicite:2]{index=2}
  • Operating temperature: −20 °C to 50 °C (−4 °F to 122 °F). :contentReference[oaicite:3]{index=3}

Construction

  • Impact-resistant, UV-stable polycarbonate housing and lens. :contentReference[oaicite:4]{index=4}
  • Sealed NEMA 4X rated exit sign enclosure with corrosion-resistant hardware. :contentReference[oaicite:5]{index=5}
  • Finishes: Black (BL) or White (WH). :contentReference[oaicite:6]{index=6}

Mounting

  • Universal mounting: wall, ceiling, or end via included polycarbonate canopy. :contentReference[oaicite:7]{index=7}
  • Pre-gasketed backplate knockouts for watertight wall installs. Supports single-face or double-face configurations.

Options

  • 2CI1 – Dual-circuit input 120 V (AC-only). 2CI7 – Dual-circuit input 277 V (AC-only). :contentReference[oaicite:8]{index=8}
  • G2 – Guardian™ self-test / self-diagnostics (WB only). :contentReference[oaicite:9]{index=9}
  • TRH – tamper-resistant exit sign hardware kit. :contentReference[oaicite:10]{index=10}

Dimensions

  • 14.8″ W × 10.0″ H × 6.0″ D (overall); housing depth 6.0″. :contentReference[oaicite:11]{index=11}

Warranty / Listings

  • UL 924 Listed for Wet Locations; UL-EPH Classified; NEMA 4X and IP66 Rated; meets NFPA 101, NEC, OSHA; CEC Title 20 Compliant. :contentReference[oaicite:12]{index=12}
  • 5-year limited warranty on components; 5-year prorated warranty on battery. :contentReference[oaicite:13]{index=13}
