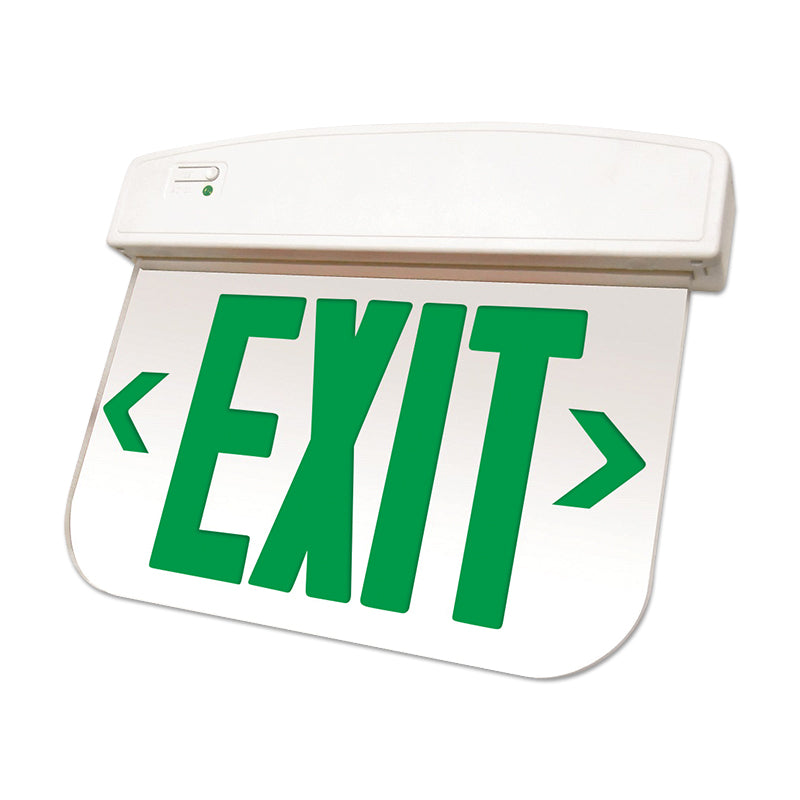

QXEDGP Series Thermoplastic Edge-lit Exit Sign

The QXEDGP Series Thermoplastic Edge-Lit Exit Sign combines a crystal-clear acrylic panel with a slim LED housing to deliver bright, uniform egress marking in offices, corridors and retail spaces. Universal hardware, field-selectable chevrons and dual-voltage electronics allow single- or double-face, ceiling, end or wall mounting straight out of the box.

Features & Benefits

• Ultra-clear acrylic edge-lit panel with even 6 in lettering
• Field-selectable chevrons (peel-and-stick appliqués supplied)
• Snap-fit canopy for ceiling, end or wall mount (included)
• CEC Title 20 compliant; UL 924 damp-location listed

Illumination

• Long-life red or green LEDs rated 100 000 h+
• Single-face ships with clear panel; double-face includes mirrored insert

Electrical

• Dual-primary 120 / 277 VAC 60 Hz input
• Maintenance-free 4.8 V Ni-Cd battery – = 90 min emergency, 24 h recharge
• Solid-state transfer, low-voltage disconnect & bi-colour status LED

Construction / Finish

• Injection-moulded UL 94 5VA thermoplastic housing
• UV-stabilised acrylic panel resists yellowing and scratches
• Standard housing finish: white

Mounting

• Universal snap-fit canopy supports ceiling, end or wall installation
• All electronics and battery contained within the housing for quick hook-up

Options

• G2 – Guardian self-test / self-diagnostics
• RC – remote-capable output (consult factory)

Ordering Guide (examples)

• QXEDGP-S-RC-WB-WH – single-face, red legend, battery backup, white housing
• QXEDGP-D-GM-WB-WH-G2 – double-face, green legend, mirror insert, battery, diagnostics

Compliance & Warranty

• UL 924 listed for damp locations; NFPA 101, NFPA 70 & OSHA compliant
• CEC Title 20 registered
• 5-year warranty on electronics & housing; battery prorated 5 yrs

Product Features

• Battery Backup
• Brand: Exitronix
• Cold Weather
• Damp Location
• Edge Lit
• Face: Double
• Face: Single
• LED
• Product: QXEDGP
• Remote Capable
• Self Testing
• Exit Signs
• Vandal Proof
