Ultra-Compact 3.6V LED Remote Heads – Single or Dual with Wide Beam

RL52 Series – Ultra-Compact 3.6V LED Remote Heads with 1 W or 2 W Optics

The RL52 Series “Tempo Pro” Remote LED Heads expand egress coverage from any 3.6 V remote-capable emergency light, exit sign, or inverter. Available in single-head (RL52) or double-head (2RL52) configurations, each compact unit draws just 1 W or 2 W of power per head while achieving up to 25 ft on-center spacing with the optional wide beam lens. Its low-profile round plate mounts easily to standard junction boxes in any indoor environment.

Download RL52 Remote LED Lamp Spec Sheet (PDF)

Features & Benefits

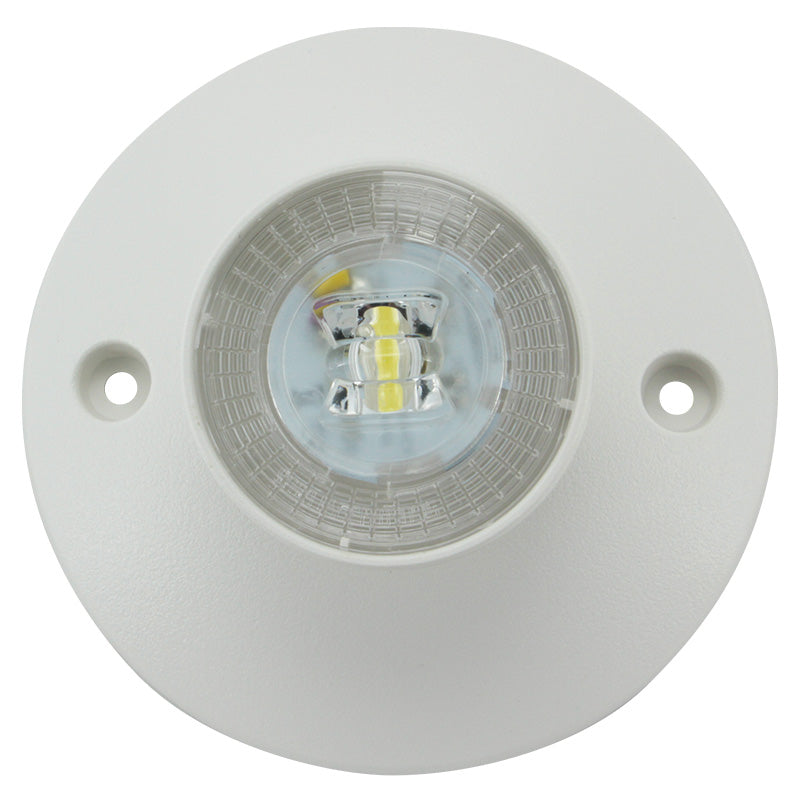

• Ultra-compact LED remote heads for 3.6 V emergency systems

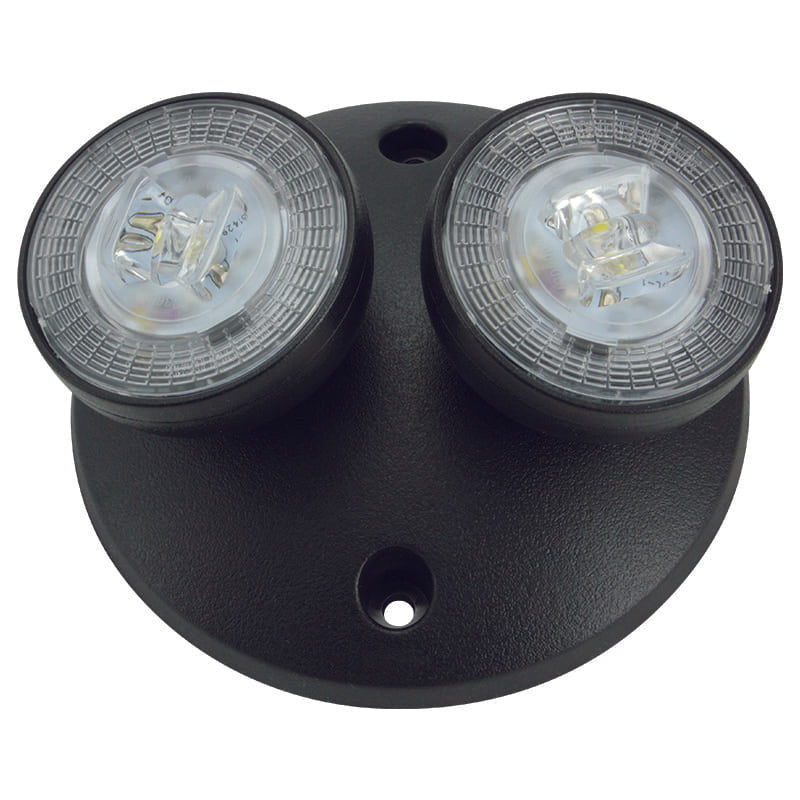

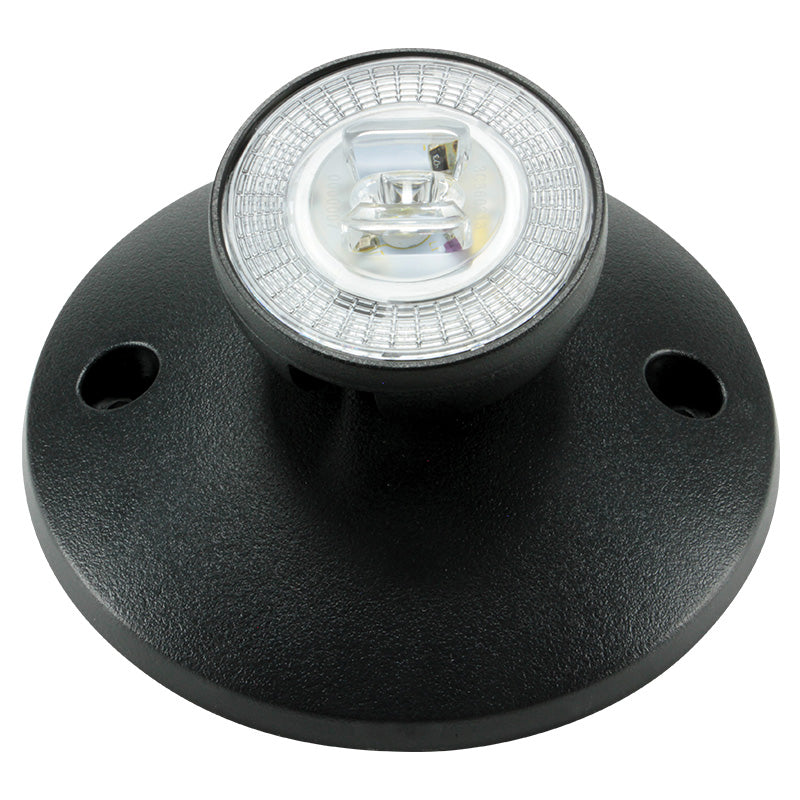

• Single (RL52) and dual-head (2RL52) models with narrow or wide optics
• Low-profile design projects only 2" from the mounting surface
• Easy installation to 3" or 4" J-boxes using 4.5" round base
• Wide beam model achieves 25 ft spacing at 7.5 ft mounting height

Illumination

• 1 W (LO) or 2 W per head SMD LEDs with high-efficiency optics
• Wide (W) or narrow beam lens options for targeted coverage
• 2RL52-W model: 25 ft on-center spacing at 3 ft path, 7.5 ft mounting

Electrical

• Powered from a remote 3.6 V DC emergency source
• Compatible with LED-52-R, LED-90-R, RL1-WP, and similar units

Mounting

• 4.5" diameter round base with standard 3" or 4" J-box hole patterns
• Heads adjust both horizontally and vertically for precise egress aiming

Housing / Finish

• High-impact, flame-retardant ABS thermoplastic housing
• Available in White (WH) or Black (BL) finishes
• Suitable for damp-location environments

Dimensions

• Mounting Plate: 4.5" diameter
• Overall Depth: ~2.1" (single-head), ~2.0" (dual-head)

Warranty / Listings

• 3-year warranty on housing and electronics
• UL 924 & cUL certified; NFPA 101 and NEC compliant

Frequently Asked Questions

Which products are compatible with RL52 remote heads?

Any 3.6 V remote-capable emergency light, combo, or inverter including Exitronix LED-52-R, LED-90-R, RL1-WP, and others.

How far can the 2RL52-W illuminate?

With wide-distribution optics, spacing is rated up to 25 ft on-center on a 3 ft path at 7.5 ft mounting height.

What is the benefit of using 1 W vs. 2 W heads?

1 W (LO) heads consume less power and are ideal when extending remote output. 2 W standard heads provide higher brightness.

Can I install this on a ceiling?

Yes. The round mounting plate is compatible with both wall and ceiling junction boxes.

Product Features

• Brand: Exitronix
• Cold Weather
• Damp Location
• LED
• Low Profile
• Product: RL52-2RL52
• Remote Capable
• Remote Heads
• Self Testing
• Thermoplastic
• Vandal Proof
