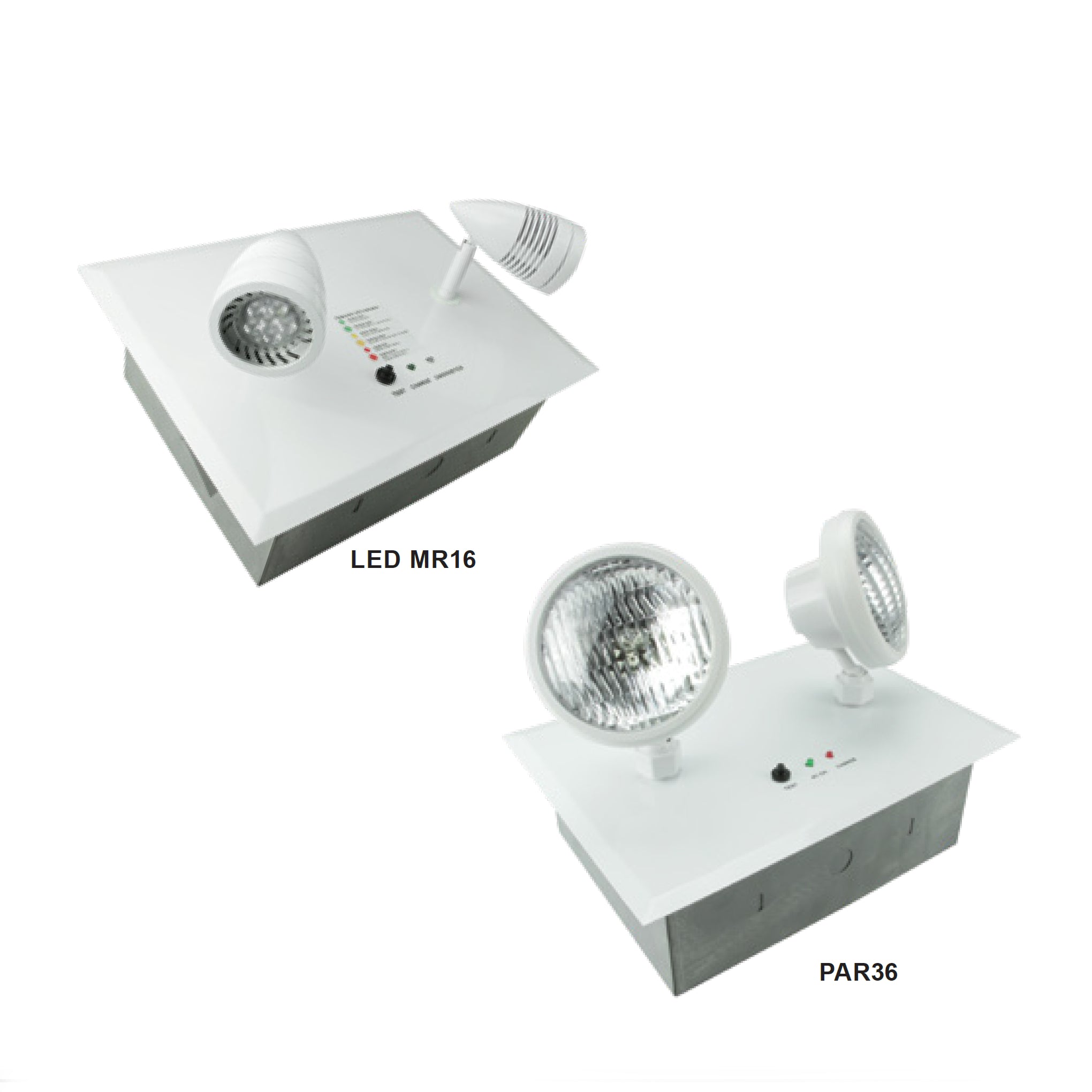

Recessed LED Emergency Light with Dual MR-16 Heads - Side View
RMW Architectural Recessed Emergency Light
Recessed LED Emergency Light with Dual MR-16 Heads - Side View
RMW Architectural Recessed Emergency Light

Recessed LED Emergency Light with Dual MR-16 Heads – NYC Approved

SKU: RMW12-36-MRL-WH
$392.74

Got questions?

Give us a call 800-847-1955!

Recessed Architectural LED Emergency Light - Dual 5 W MR-16, 47.5 ft Spacing, NYC Approved - Features & Specs

The RMW Recessed Architectural LED Emergency Light installs flush in suspended or drywall ceilings to maintain clean sightlines while meeting New York City emergency-code requirements. This fixture also qualifies as NYC-approved emergency lights. As part of our recessed LED emergency lights collection, it delivers code-ready performance with a rugged 20-gauge steel enclosure, two fully adjustable 5 W MR-16 LED heads capable of 47.5 ft spacing, a sealed lead-calcium battery providing 90 minutes of emergency operation, and universal 120/277 VAC electronics.

NYC Approved UL 924 120/277 VAC MR-16 LED Dual / Adjustable Recessed Mount 90 min Battery Steel Housing Dry Location Self Testing (opt.)

Key Features

  • Flush, fully recessed ceiling installation with low-profile trim for clean sightlines.
  • Dual 5 W MR-16 LED heads; spacing guideline: 47.5 ft center-to-center on a 3 ft path at 10 ft mounting height.
  • 90-minute emergency runtime from sealed lead-calcium battery; optional Ni-Cd available.
  • Universal 120/277 VAC input; solid-state two-rate charger, LVD, brownout & overcharge protection.
  • Rugged 20-ga steel back-box; trim finishes in White (WH) or Black (BL).
  • NYC Approved; listed to UL 924; compliant with NFPA 101 and NEC; dry-location rated.
  • Optional G2 self-test/diagnostics for automated monthly/annual testing.

Related Recessed & Emergency Light Guides

Recessed NYC Exit Signs & Emergency Lights NYC Emergency Lighting Requirements

Spec Sheet

Download RMW LED Emergency Light Spec Sheet (PDF)

Illumination

  • Two fully adjustable 5 W MR-16 LED bullet heads; optional PAR36 incandescent heads available.
  • Sample spacing: 47.5 ft on a 3 ft path at 10 ft mounting height (design aid).

Electrical

  • Universal 120/277 VAC, 50/60 Hz; solid-state two-rate charger.
  • Maintenance-free sealed lead-calcium battery — 90-minute runtime; ~24-hour recharge.
  • Protections: low-voltage disconnect, brownout sensing, short-circuit & overcharge protection.
  • Ni-Cd battery option available.

Mounting

  • Flush ceiling install with torsion-spring secured trim plate.
  • Adjustable bar hangers for both T-bar/grid and drywall ceilings.

Housing / Finish

  • Heavy-duty 20-gauge steel back-box with durable powder coat.
  • Trim finishes: White (WH) or Black (BL).

Dimensions

  • Trim plate: 10.2" L × 8.1" W
  • Overall height to lamp tops: 9.5"

Warranty / Listings

  • 5-year warranty on electronics and housing; battery 5-year prorated.
  • CSA listed to UL 924; NFPA 101, NEC, and NYC compliant.
