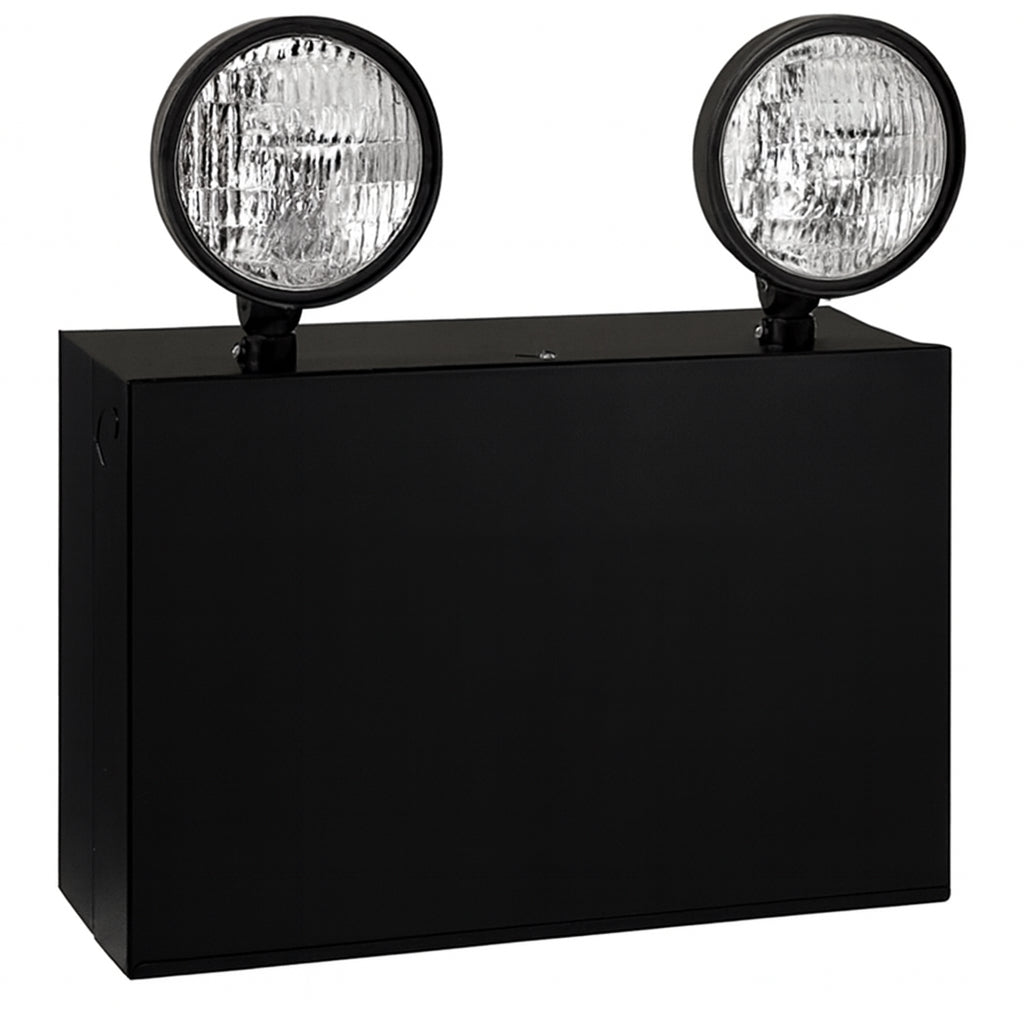

Steel Emergency Lighting Unit – 120–360W, Dual Head, Remote-Capable

RS Series – Remote-Capable Steel Emergency Lighting Unit, 120–360W

The RS Series Steel Emergency Lighting Unit combines a durable 20-gauge steel enclosure with field-configurable performance in 6 V, 12 V or 24 V models. Available in 120 W to 360 W capacities, each unit supports up to three cabinet-mounted lamp heads and leaves output available for remote fixtures. Dual-voltage 120/277 VAC input, sealed lead-calcium or Ni-Cd batteries, and optional Guardian self-diagnostics ensure dependable egress lighting for commercial and industrial applications.

Download RS Steel Emergency Light Spec Sheet (PDF)

Features & Benefits

• Remote-capable with cabinet-mounted and external heads supported
• Available in 6 V, 12 V or 24 V output models, from 120 W to 360 W
• Dual-voltage 120 / 277 VAC input with solid-state charger
• Field-selectable sealed lead-calcium or Ni-Cd battery type

Illumination

• Supports 6 V or 12 V wedge-based lamps, 9 W to 18 W
• Up to three cabinet-mounted lamp heads; remote output available
• Lamp heads adjustable and field-installed as needed

Electrical

• Universal 120 / 277 VAC input, 60 Hz; two-rate solid-state charger
• Maintenance-free lead-calcium or Ni-Cd battery – 90-minute emergency runtime
• Low-voltage disconnect, brownout protection, short-circuit & surge safeguards
• Options: G2 Guardian diagnostics  |  TD 15-minute time delay

Mounting

• Universal wall-mount pattern with rear keyhole slots
• Knockouts on top, back and sides for conduit or lamp head installation
• Shelf-mount kit available for alternate mounting surfaces

Housing / Finish

• Rugged 20-gauge steel cabinet with powder-coated finish
• Push-to-test button and dual-color LED for visual status indication
• Available in Black (B) or White (W) finish

Dimensions

• 120–180 W (6 V / 12 V): 13" W × 10" H × 6" D
• 250–360 W (12 V / 24 V): 18" W × 10" H × 6" D

Warranty / Listings

• 5-year warranty on electronics and housing; battery prorated 5 years
• CSA Certified to UL 924; NFPA 101 and NEC compliant

Frequently Asked Questions

What voltage and wattage options are available?

The RS Series offers 6 V, 12 V, or 24 V models with output capacities from 120 W to 360 W. Choose based on lamp load and remote capacity needs.

Can I install lamp heads directly on the cabinet?

Yes. Up to three lamp heads can be mounted directly to the cabinet using side knockouts. Additional capacity may be used for remote heads.

What’s the difference between battery types?

Lead-calcium batteries are standard and cost-effective. Optional Ni-Cd batteries offer longer life, improved cold-temperature performance, and lighter weight.

Is this fixture remote-capable?

Yes. After cabinet heads are installed, remaining battery capacity can power remote lamps such as MIST heads or RL series remotes.

Does it support self-diagnostics?

Yes. Add the G2 Guardian diagnostics option for automated monthly and annual system tests.

Product Features

• Brand: Exitronix
• Cold Weather
• LED
• Product: RS120-360
• Remote Capable
• Remote Heads
• Self Testing
• Steel
• Vandal Proof
• Wall Mount
