Home » Emergency Lights » Steel Emergency Lights » Compact Steel Emergency Lighting Unit – PAR18 Dual-Head, NYC Approved - Voltage: 12-Volt-Nicad

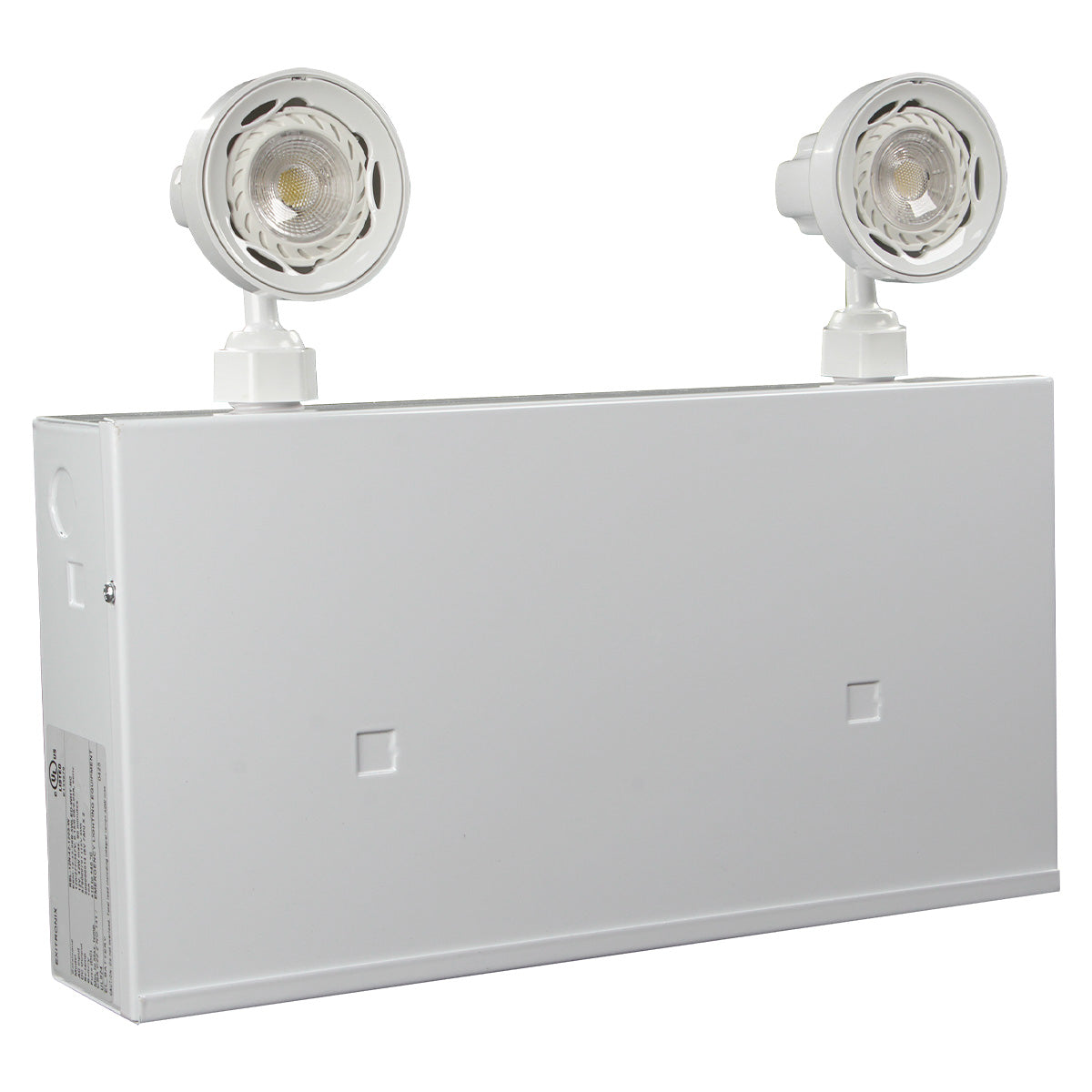

Steel emergency light with remote-capable cabinet and adjustable LED heads
Steel emergency light with remote-capable cabinet and adjustable LED heads

Compact Steel Emergency Lighting Unit – PAR18 Dual-Head, NYC Approved - Voltage: 12-Volt-Nicad

SKU: RSL-12N-42-0-B
$360.62
Related Options

Got questions?

Give us a call 800-847-1955!

Compact Steel LED Emergency Light - PAR18 5W/7W Heads, 18–90W, Remote-Capable - Features & Specs

The RSL Series Compact Steel LED Emergency Light pairs a rugged 20-gauge steel cabinet with two fully adjustable PAR18 LED heads. Models in 6 V or 12 V provide 18–90 W capacity for extended runtime or powering remote heads. Dual-voltage 120/277 VAC input, sealed lead-calcium or Ni-Cd batteries, and optional Guardian™ self-diagnostics deliver dependable, NYC-code-ready performance in corridors, stairwells, and industrial spaces.

UL 924 120/277 VAC 90-min Battery Lead-Calcium / Ni-Cd PAR18 LED Heads Remote-Capable NYC Compliant Steel Cabinet G2 Self-Test (opt.)

Key Features

  • Two fully adjustable PAR18 LED heads in 5 W or 7 W outputs.
  • 6 V / 12 V models with capacities up to 90 W—use for extended runtime or remote loads.
  • 120/277 VAC dual-primary input; high-efficiency, temperature-compensated charger.
  • Battery choices: sealed lead-calcium or Ni-Cd; minimum 90-minute emergency runtime.
  • Protection circuits: LVD, brownout, short-circuit/overload, surge protection; front test button with dual-status LEDs.
  • Universal wall-mount pattern with rear keyholes; top/back/side knockouts for conduit or side-mounted heads.
  • Finish: White (std) or Black; BAA compliant; compatible with MIST/RSMR LED remotes.

RSL Steel LED Emergency Light Spec Sheet PDF Icon Download RSL Steel LED Emergency Light Spec Sheet (PDF)

Illumination / Performance

  • PAR18 LED heads (top standard; side-mount capable) with wide, uniform egress coverage.
  • Sample spacing at 7.5' mounting height (multiple units): 6V 5W ? 53' O.C.; 12V 5W ? 101' O.C.; 12V 7W ? 104' O.C.

Electrical

  • Dual-voltage 120/277 VAC, 60 Hz input; two-stage, temperature-compensated charger.
  • Maintenance-free sealed lead-calcium or Ni-Cd battery; 90 min emergency run; ~24 h recharge.
  • Low-voltage disconnect, brownout circuit, short-circuit/overload & surge protection.
  • Option: Guardian™ (G2) self-test / self-diagnostics.

Mounting

  • Universal wall-mount J-box pattern with rear keyholes; shelf-mount kit available.
  • Knockouts on top, back, and sides for conduit or additional head installation.

Housing / Finish

  • Die-formed 20-ga steel cabinet with durable powder coat.
  • Color-matched high-impact thermoplastic lamp heads.
  • Finishes: White or Black.

Dimensions

  • 18–27 W cabinet: 12.2? W × 5.9? H × 2.5? D
  • 36–60 W cabinet: 14.0? W × 5.9? H × 3.3? D
  • 54–90 W cabinet: 15.0? W × 5.9? H × 4.3? D

Compliance / Warranty

  • UL 924 Listed; meets NFPA 101, NEC, OSHA; NYC compliant.
  • 5-year warranty on electronics & housing; battery 5-year prorated.
