RSL Series 18-90W LED Steel Compact Emergency Lighting Unit - Voltage: 6-Volt-Lead-Calcium

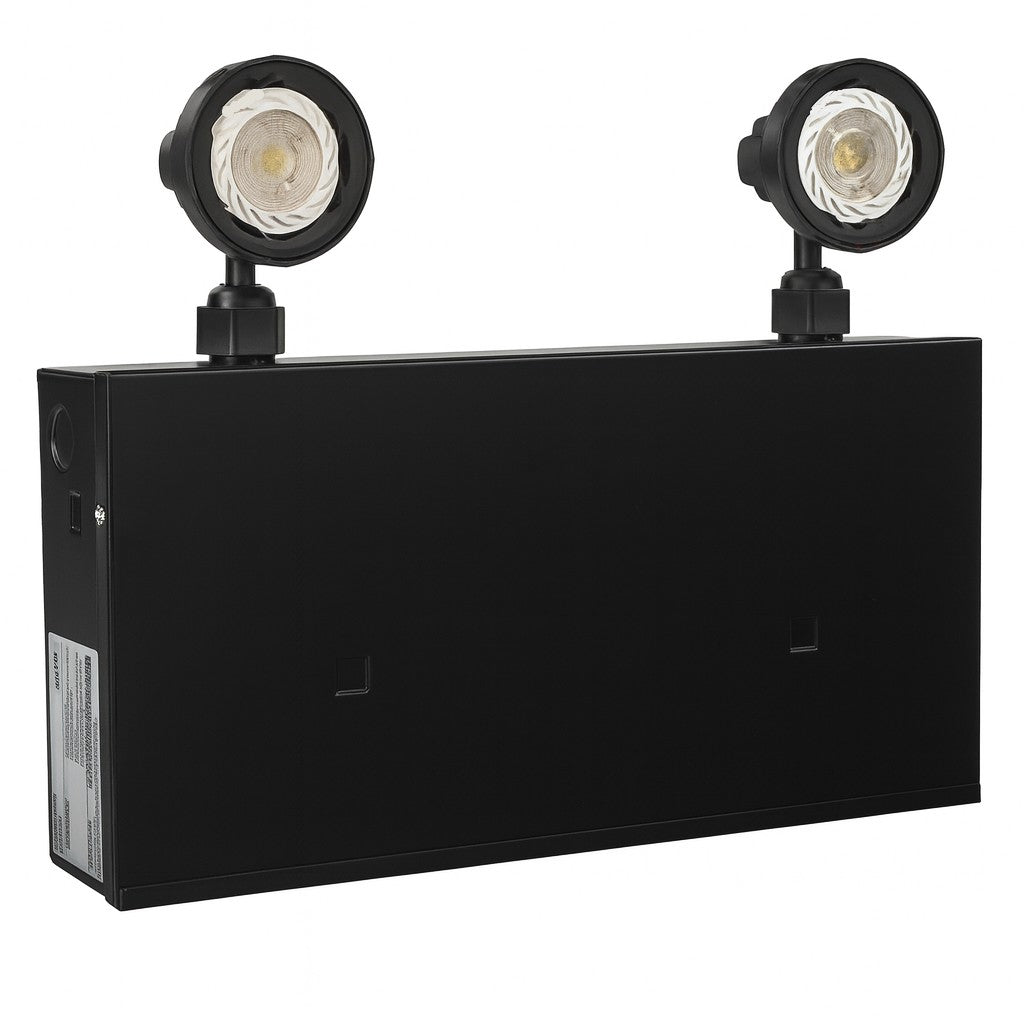

The RSL Series Compact Steel LED Emergency Light couples a 20-gauge steel enclosure with two fully adjustable PAR18 LED heads. Six- or twelve-volt versions provide capacities up to 90 W, leaving reserve for remote lamps while meeting City of New York code.

Features & Benefits

• PAR18 LED heads – 5 W or 7 W each
• Capacities: 18 W – 90 W (6 V / 12 V)
• ≈ 20 W spare for remotes or extended run-time
• Side-mount knock-outs for additional heads
• G2 Guardian self-diagnostics option

Illumination / Performance

• Spacing @ 7.5 ft mount:
  • 6 V 5 W – 53 ft OC
  • 12 V 5 W – 101 ft OC
  • 12 V 7 W – 104 ft OC

Electrical

• Universal 120 / 277 VAC 60 Hz input
• Sealed lead-calcium or Ni-Cd battery – ≥ 90 min emergency, 24 h recharge
• LVD, brown-out, surge & short-circuit protection
• Front test button & dual diagnostic LEDs

Construction / Finish

• 20-ga steel, epoxy powder-coat white (std) or black (opt)
• Compact cabinet (18-27 W): 12.2 in W × 5.9 in H × 2.5 in D

Mounting

• Shelf mount or rear J-box pattern with keyhole slots
• Top, back & side conduit knock-outs

Options

• G2 – Guardian diagnostics

Compliance / Warranty

• UL 924 & NYC damp-location listed (10 °C – 40 °C)
• Meets NFPA 101, NEC & OSHA requirements
• 5-year warranty electronics & housing; battery 5-yr prorated

Product Features

• Brand: Exitronix
• Damp Location
• LED
• Product: RSL
• Remote Heads
• Self Testing
• Steel
• Exit Signs
