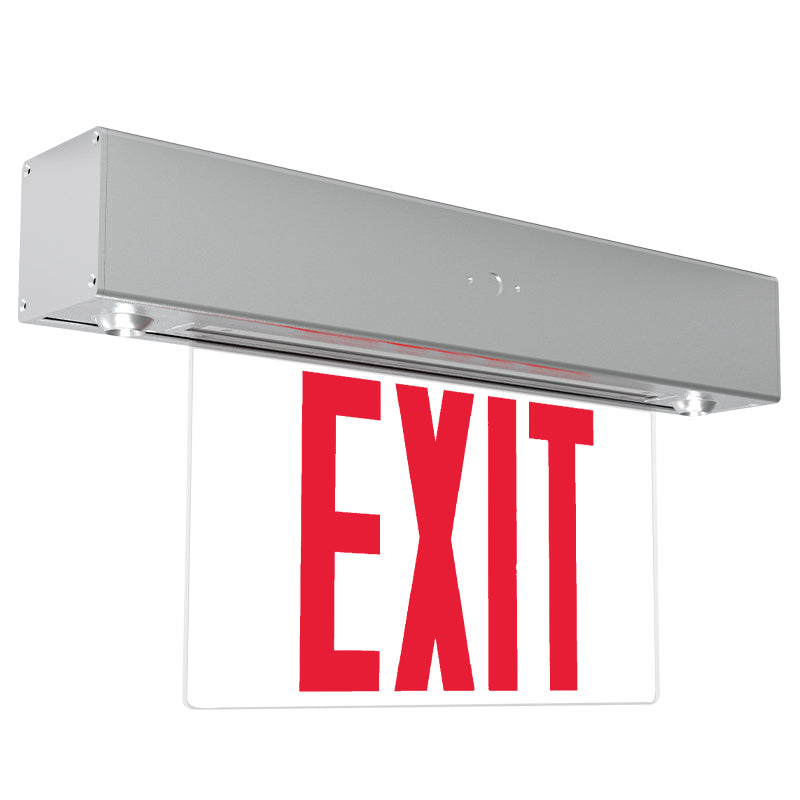

S900C combo fixture – angled view showing slim aluminum housing and canopy
Edge-lit LED exit/emergency combo – front view with red legend and recessed heads
S900C combo fixture – angled view
S900C combo fixture – angled view showing slim aluminum housing and canopy

Edge-Lit LED Exit & Emergency Combo – Recessed Heads, Remote Option

SKU: S900C-R-G-AG
$245.28

Got questions?

Give us a call 800-847-1955!

Edge‑Lit LED Exit & Emergency Combo — Recessed Heads, Remote‑Capable (opt.), 90‑min NiMH, 120/277 V, CEC Title 20 — Features & Specs

The S900C Edge‑Lit LED Exit / Emergency Combo merges a slim, architectural edge‑lit exit sign with two recessed LED emergency heads. Each unit ships with clear (single‑face) and mirrored (double‑face) acrylic panels, a surface‑mount canopy, and a recessed back‑box kit—so you can surface‑ or recessed‑mount to walls or ceilings right out of the box. Optional remote‑capable exit sign and emergency light combos and diagnostic models add flexibility for code‑driven installs. For broader configurations, see Exit Sign & Emergency Light Combos.

UL 924 Edge Lit Recessed Heads 120/277 V 90‑min Battery Self Testing (opt.) Remote Capable (opt.) Surface / Recessed Single / Double Face Damp Location CEC Title 20

Key Features

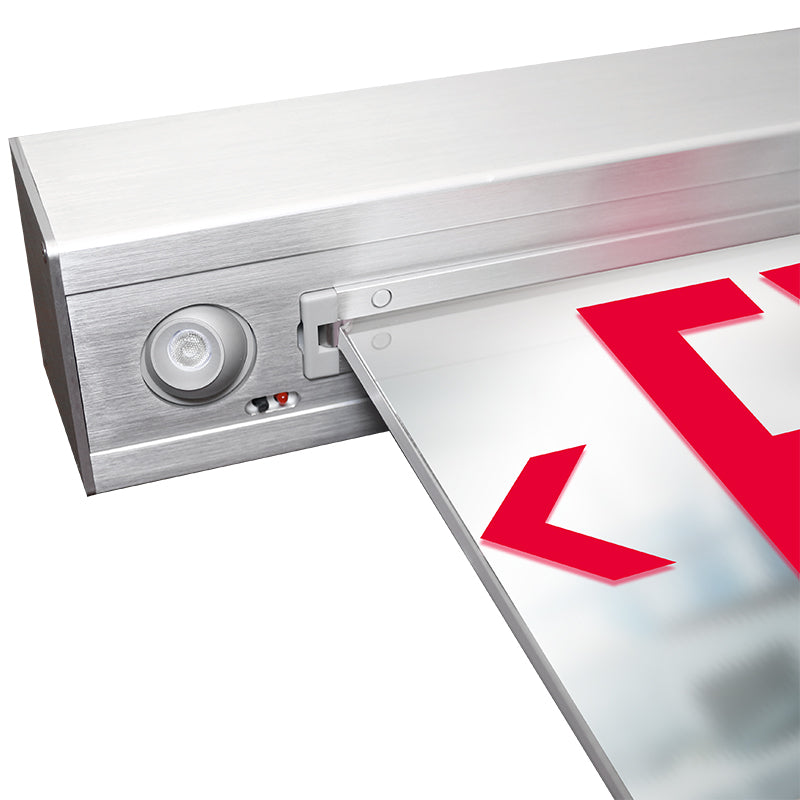

  • Dual recessed heads: 2.5 W each (non‑G2) or 1.5 W each with G2 self‑diagnostics.
  • Remote‑capable option (R) provides 3 W output (e.g., one RL52 or two RL1 heads).
  • Universal install kit: surface canopy + recessed back‑box with adjustable hanger bars.
  • Includes clear single‑face and mirrored double‑face panels; field‑selectable chevrons.
  • NiMH battery delivers 90‑minute emergency runtime; dual‑voltage 120/277 V.
  • Listed to UL 924; damp‑location rated (5–40 °C / 41–104 °F); CEC Title 20 compliant.
  • Finishes: Brushed Aluminum (AG), Black (BL), White (WH).
  • Design aid: heads can be spaced up to 31′ apart at 7.5′ mounting height (non‑G2).

Related Edge‑Lit Guides

Edge‑Lit by Application (Hotels/Healthcare/Corporate) Ceiling/End/Wall Mounting for Edge‑Lit

Spec Sheet

Download S900C Exit & Emergency Combo Spec Sheet (PDF)

Illumination

  • Edge‑lit red or green legend with fully illuminated 6″ characters.
  • Two recessed LED heads: 2.5 W (non‑G2) or 1.5 W (G2); design‑aid spacing up to 31′ head‑to‑head at 7.5′ MH.

Electrical

  • Dual‑voltage 120/277 V, 60 Hz input.
  • Maintenance‑free NiMH battery — 90‑minute emergency runtime; ≈24‑hour recharge.
  • Solid‑state charger with low‑voltage disconnect and brownout protection.
  • R option: 3 W remote capacity (one RL52 or two RL1 heads).

Mounting

  • Universal kit supports recessed or surface mounting to walls or ceilings.
  • Adjustable hanger bars included for recessed grid or joist installations.
  • Surface‑mount canopy included; field‑configurable chevron arrows.

Housing

  • Surface‑mount: extruded aluminum housing with clear acrylic panel.

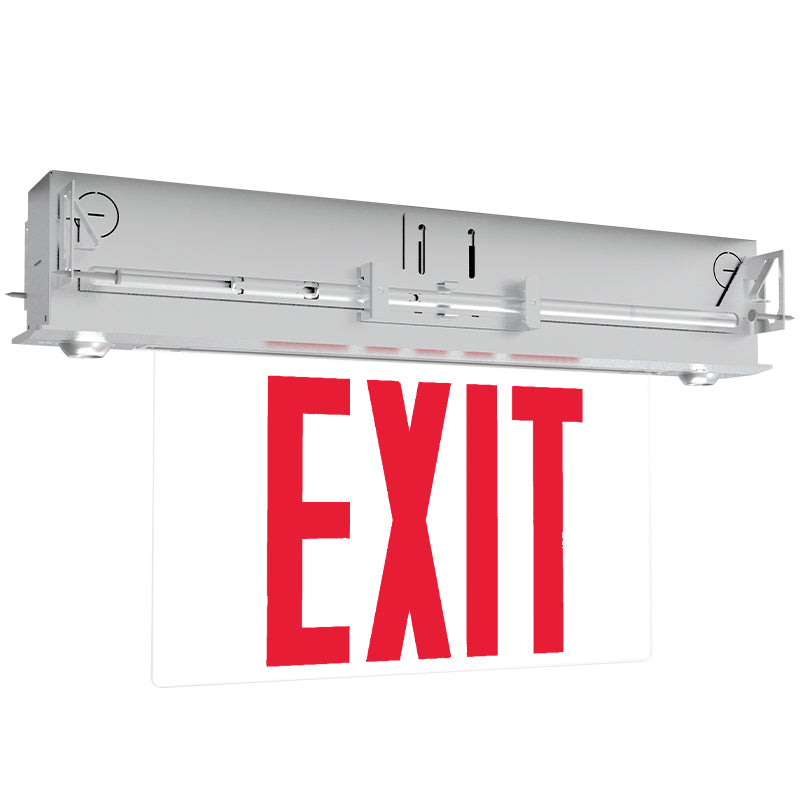

  • Recessed: galvanized steel back‑box with clean architectural trim.
  • Finishes: AG (Brushed Aluminum), BL (Black), WH (White).
  • Damp‑location rating: 5–40 °C (41–104 °F).

Dimensions

  • Recessed: 17.2″ W × 10.0″ H × 6.8″ D (panel width 12″)
  • Surface: 17.5″ W × 9.8″ H × 6.8″ D

Warranty / Listings

  • 5‑year warranty on electronics & housing; 5‑year prorated NiMH battery warranty.
  • UL 924 listed for damp locations; compliant with NFPA 101, NEC, and CEC Title 20.
