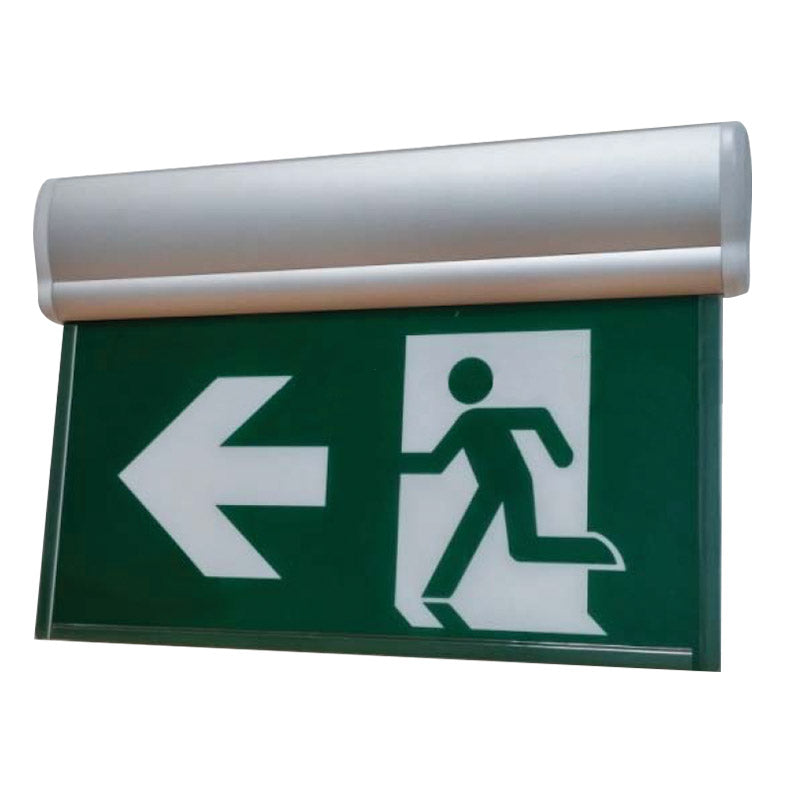

Edge-lit Running-Man exit sign – angled view with clear panel and slim aluminum frame
Edge-lit Running-Man exit sign – front view with clear panel and slim aluminum frame
Edge-lit Running-Man exit sign – angled view with clear panel and slim aluminum frame
Edge-lit Running-Man exit sign – front view with clear panel and slim aluminum frame

Edge-Lit Running-Man Exit Sign – Surface or Recessed, CSA Listed

SKU: S900RM-WB-R-WH
$217.54

Got questions?

Give us a call 800-847-1955!

Edge‑Lit Running‑Man Exit Sign — Surface/Recessed, 120/347 V, 90‑min NiMH, CSA Listed, Damp Location — Features & Specs

The S900RM edge‑lit running‑man exit sign uses a pivoting, low‑profile housing for wall or ceiling installs in either surface or recessed configurations. An extruded‑aluminum body and clear acrylic panel create a clean, architectural look, while a maintenance‑free NiMH pack provides 90‑minute emergency operation on 120/347 V systems. See more edge‑lit exit signs.

CSA Listed UL 924 (90‑min) Edge‑Lit Surface / Recessed 120/347 V Running Man Damp Location NiMH Backup

Key Features

  • Pivoting design supports wall, ceiling, recessed installs; surface canopy and recessed hanger‑bar kit included.
  • Extruded‑aluminum housing with optically clear acrylic panel for an even, edge‑lit “floating” legend.
  • Universal pictogram set: two no‑arrow, left‑arrow, right‑arrow, plus one blank panel for field configuration.
  • 120/347 V dual‑primary input; NiMH battery with 90‑minute runtime (≈24‑hour recharge).
  • Protection features: low‑voltage disconnect, solid‑state transfer, and a front test button for quick verification.
  • Damp‑location rated (0–40 °C / 32–104 °F). Finishes: Black, Brushed Aluminum, White.

Related Edge‑Lit Guides

Edge‑Lit Pictograms by Application Install Pointers for Pictogram Models

Spec Sheet

Download S900RM Running‑Man Exit Sign Spec Sheet (PDF)

Illumination

  • High‑output, long‑life white LEDs uniformly back‑light the running‑man pictogram; stencil diffuses light to eliminate hot spots.
  • Includes left, right, and no‑arrow legends for code‑compliant orientation.

Electrical

  • Dual‑voltage 120/347 V, 50/60 Hz input.
  • Maintenance‑free NiMH battery: 90‑minute emergency; ≈24‑hour recharge.
  • Typical consumption ≤ 5 W; solid‑state transfer; low‑voltage disconnect; front test button.

Mounting

  • Surface: universal canopy for side‑wall or ceiling mount (hardware included).
  • Recessed: adjustable hanger‑bar assembly; electronics and battery within the housing; plug‑in battery connector for easy install. See recessed exit sign housings.

Housing / Finish

  • Robust extruded‑aluminum body, clear acrylic panel.
  • Finishes: Black (BL), Brushed Aluminum (BA), White (WH).

Dimensions

  • 14.1″ W × 9.3″ H × 1.8″ D

Compliance / Warranty

  • CSA Listed; UL 924 (90‑min); meets NEC and NFPA 101.
  • 5‑year limited components warranty; 5‑year prorated battery warranty.
