Home » Exit Signs » SRB Pendant Mount Adder

SRB Pendant Mount Adder

SKU: SRB-PM
$45.00

Got questions?

Give us a call 800-847-1955!

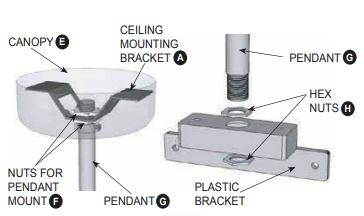

Affix ceiling mounting bracket (A) to ceiling.
Secure pendant (G) into position using nuts
for pendant mount (F). Slide canopy (E) over
pendant (G) until ceiling mounting bracket (A)
is concealed, tighten canopy screw. Attach
plastic bracket (I) to pendant using hex nuts
(H). Attach sign to the plastic bracket using
the self-tapping 5/8” screws provided (see
FIG. C).
