A practical, non‑salesy guide to planning recessed edge‑lit EXIT signs—choosing the correct ceiling trim, wiring and access, and understanding when 8″ letters are required by your AHJ.
Last updated: October 2025

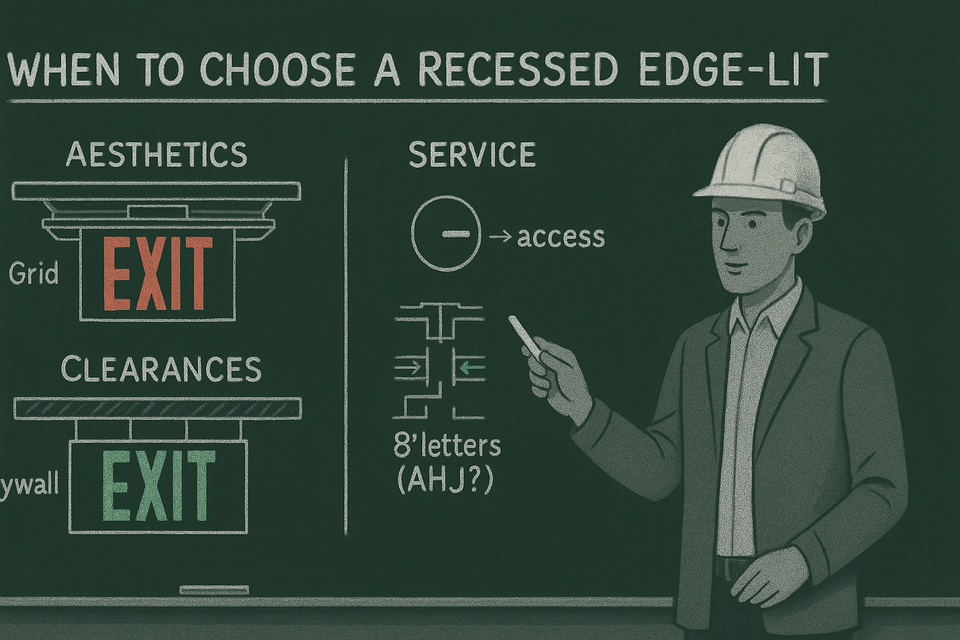

When to Choose a Recessed Edge‑Lit
Recessed edge‑lit signs deliver a low‑profile, architectural look where standard box signs would stand out. They’re common in hospitality, corporate, and high‑finish corridors that run drop ceilings or drywall soffits. If you’re comparing recessed to surface‑mounted models, the Edge‑Lit Buyers Guide explains the bigger picture.
- Aesthetics: panel appears to “float,” minimizing visual bulk.
- Clearances: helpful in tighter corridors where projections are limited.
- Serviceability: plan access to test switch/indicator without damaging finished surfaces.
Ceiling & Trim Options
Match the trim to the ceiling type and the look you’re after. The matrix below covers the common conditions:
| Ceiling Condition | Typical Trim | Install Notes | Finish Considerations |
|---|---|---|---|
| Suspended grid (T‑bar) | Grid trim/lay‑in kit | Cut tile for housing; coordinate with tile size to keep the panel centered. | Match trim to grid color; ensure tile remains supported. |
| Gypsum/drywall ceiling | Flanged or mud‑in trim | Frame opening before board; maintain clearance for removal/testing. | Mud‑in gives a near flush reveal; paint to match ceiling. |
| Wood slat or specialty | Adaptor plate + trim kit | Backer blocking required; confirm slat spacing for panel drop. | Choose trim that blends with slat color/finish. |
Keep the test switch and status LED visible/accessible. If the local AHJ requires access without removing ceiling components, plan a remote test switch location.
Wiring, Access & Plenum Notes
- Power: 120/277 VAC with low‑watt LEDs. Follow the label for conductor size and connections.
- Battery backup: 90‑minute minimum emergency operation; many families offer self‑test for monthly checks.
- J‑box location: place where you can reach splices and the push‑to‑test after finishes go in.
- Plenum: in return‑air plenums, use plenum‑rated cabling/conduit as required by code.
- Removal: ensure the housing can be removed for service without tearing drywall or major tile cuts.
For step‑by‑step basics on canopy orientation and chevrons, see the Edge‑Lit Exit Sign Mounting & Wiring Guide.
8″ Letter Scenarios (AHJ‑Driven)
While 6‑inch letters are typical, some jurisdictions or occupancies require 8‑inch EXIT letters to increase viewing distance—often in large assembly spaces, transportation hubs, or specific city codes. Because requirements vary, always confirm with your Authority Having Jurisdiction (AHJ) before ordering.
- Plan early: verify letter height during design so the recessed kit and panel are correct.
- Consistency: campuses sometimes standardize letter size and color across all buildings.
- Contrast: tie letter color to finishes; see Red vs Green Letters for Edge‑Lit for visibility tips.
Layout: Sightlines, Faces & Arrows
Use single‑face at walls with one‑direction travel, and double‑face in corridors, lobbies, or T‑intersections where occupants approach from two sides. Recessed trims are available for both orientations—just confirm the panel drop aligns with traffic.
- Ceiling vs end mount: choose the orientation that puts the legend into the natural approach angle.
- Arrows: apply chevrons only after you confirm door swing and the final egress path.
More on face count and sightlines: Single‑ vs Double‑Face Edge‑Lit — Sightlines & Corridor Planning.
Common Field Issues & Fixes
- Panel tilt or misalignment: square the housing before final tighten; check trim screws evenly.
- Blocked test access: relocate the J‑box or specify a remote test switch if the AHJ requires accessible testing.
- Tile chipping: use a sharp hole saw and backer board; pre‑paint cut edges on drywall trims.
- Wrong chevrons: dry‑fit the panel and confirm egress path with the GC before applying arrows.
- Letter height mismatch: document the AHJ requirement (6″ vs 8″) on submittals to avoid re‑orders.
If you’re still weighing sign families, a quick comparison is here: Edge‑Lit vs Photoluminescent vs Thermoplastic.
Quick Specs & Mini AHJ Checklist
- Listing: UL 924 emergency lighting.
- Input: 120/277 VAC, LED source.
- Backup: 90‑minute minimum; self‑test option recommended for maintenance logging.
- Letter height: 6″ typical; verify if 8″ is required in your jurisdiction.
- Faces: single or double; confirm sightlines in plan.
- Trim: grid, flanged, or mud‑in; coordinate with ceiling contractor.
- Access: status/test must remain visible and serviceable after finishes.
AHJ checklist: letter size, legend color, face count, mounting orientation, and local amendments. Confirm before ordering; schedule monthly and annual battery tests.
FAQ
Can I use recessed edge‑lit signs in damp areas?
Most recessed edge‑lit signs are rated for dry or damp locations. For wet areas or exterior egress, use a listed enclosure or a different family with the appropriate rating.
Do recessed trims support double‑face panels?
Many families offer trims for both single‑ and double‑face panels. Verify compatibility in the submittal before rough‑in.
How do I test a recessed unit after the ceiling is closed?
Plan visible access to the status LED and push‑to‑test, or specify a remote test switch where permitted by your AHJ.
Is 8″ lettering always required in big rooms?
No—requirements vary. Some cities or occupancies call for 8″ letters; others permit 6″. Confirm with your AHJ.
