This long-form resource explains what a Thermoplastic Edge-Lit Exit Sign is, where it fits best, how to install it quickly, and the exact specs inspectors look for—written in plain English for contractors, inspectors, and architects. We focus on the slim-profile QXEDGP with an ultra-clear acrylic panel, field-selectable chevrons, and optional 90-minute battery backup. Explore more models in our Edge-Lit Exit Signs collection.
Last updated: August 2025
Quick Picks
Identify the QXEDGP Fast
- Thermoplastic Edge-Lit housing with an ultra-clear acrylic panel and slim profile.
- Red or green LEDs (long-life) with 6" letters and a 3/4" stroke for clean legibility.
- Field-selectable chevrons with a guide template so arrows line up perfectly.
Install in Minutes
- Universal canopy for ceiling (top) or end (flag) mounting; backplate knockouts for wall/back installs.
- Dual-voltage 120/277 VAC input; push-to-test and a bi-color status LED for quick checks.
- Clear wiring diagrams for AC-only, battery-backup, dual-circuit, and 208/220/240 VAC setups.
Compliance Snapshot
- UL 924 listed and Damp Location rated (0 °C–50 °C).
- Emergency models provide a 90-minute runtime; typical 24-hour recharge.
- CEC Title 20 compliant—efficient by design.
Thermoplastic Edge-Lit Exit Sign 101
The Slim Profile Thermoplastic Edge-Lit Exit Sign (QXEDGP) lights a laser-etched acrylic panel from the edge so the word EXIT appears to float. You get a clean, modern look, a tough UL 94 5VA flame-retardant housing, and the flexibility to set arrows and face count on site. It’s the “good-looking, gets-it-done” sign for finished corridors and tenant improvements.
Features & Benefits
- Easy to read: high-output red or green LEDs with large 6" characters for clear wayfinding.
- Even glow: UV-stabilized, ultra-clear acrylic panel spreads light evenly—no hot spots.
- Arrow-ready: peel-and-stick chevrons + template make on-site direction changes painless.
- One box, many installs: ceiling, end, or wall/back mounting with the included canopy.
- Inspector-friendly: UL 924, Damp Location, and Title 20 compliance built-in.
Illumination & Panel Design
Characters are 6" high with a 3/4" stroke and stay uniform edge-to-edge. Single-face units use an ultra-clear panel; double-face units add a mirror-finish insert between two clear panels so both sides pop equally. Need arrows? Apply them in seconds using the included guide so everything lines up cleanly.
Electrical, Battery & Testing
- Power: dual-primary 120/277 VAC, 60 Hz.
- Emergency: maintenance-free 4.8 V Ni-Cd (EM models) with a 90-minute runtime and ~24-hour recharge.
- Seamless transfer: solid-state switchover—no flicker when power drops.
- Quick checks: push-to-test and a bi-color status LED for at-a-glance verification.
- Self-diagnostics (optional): automatic monthly/annual tests with simple fault codes.
Mounting & Installation

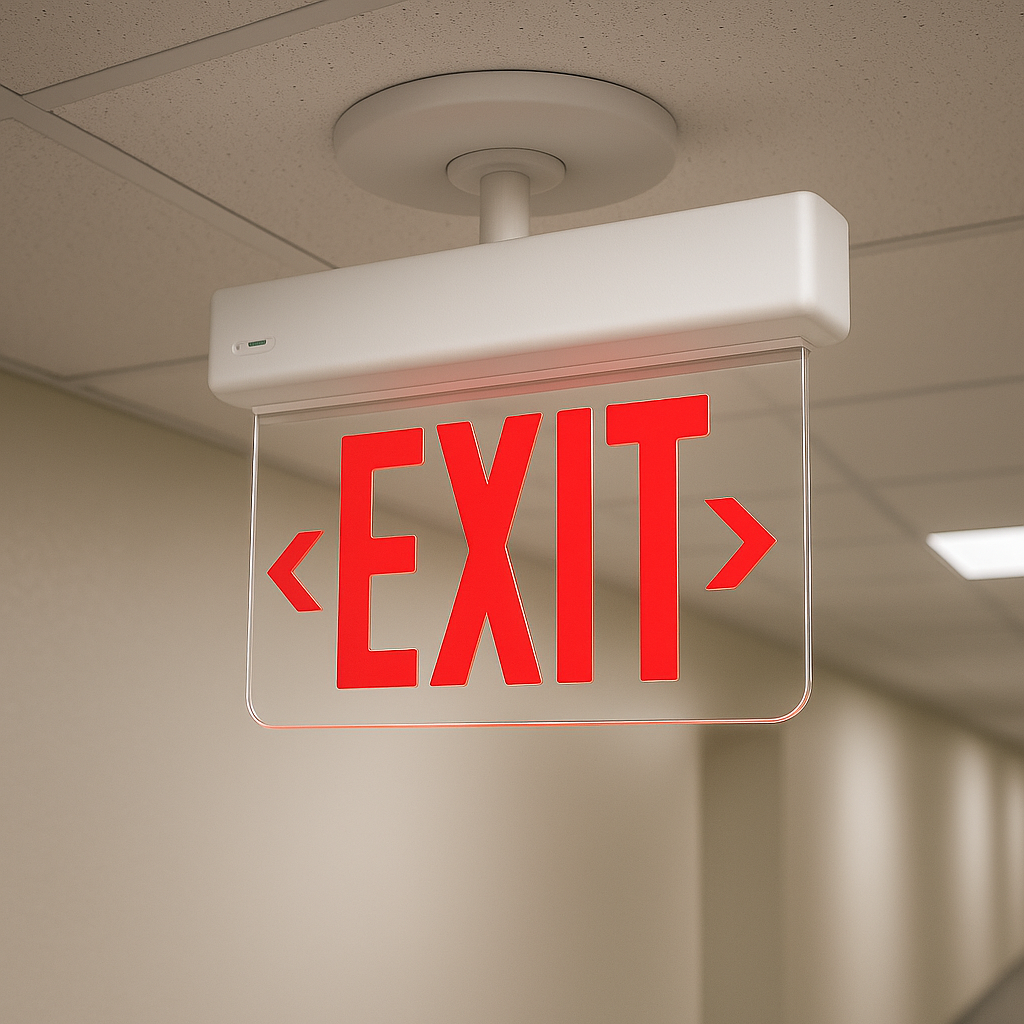

The universal canopy snaps in for top (ceiling) or end (flag) mounting, or use the backplate knockouts for wall/back installs over a j-box. Convert between single-face and double-face on site to match sightlines. Hardware’s in the box, so your crew can keep moving.
Installer tip: Set canopy orientation before pulling conductors so the panel squares to the corridor and arrows point the right way the first time.
Use Cases
- Office corridors & TI: a slim profile keeps walls tidy while arrows fine-tune wayfinding.
- Healthcare & education: self-test trims the time you spend on monthly/annual checks.
- Retail & hospitality: the clear panel looks modern at entries and along egress paths.
- Covered lobbies/vestibules: built for humid indoor areas with a Damp Location rating.
How It Compares
| Type | Best For | Look & Profile | Install/Options | Notes |
|---|---|---|---|---|
| Thermoplastic Edge-Lit (QXEDGP) | Budget-sensitive finished spaces | Slim, clear panel | Universal mount; chevrons; Ni-Cd EM | UL 924, Damp, Title 20 |
| Aluminum/Architectural Edge-Lit | Premium interiors | Ultra-thin metal frame | More finish options | Higher cost; upscale look |
| Photoluminescent | No-power, well-lit areas | Opaque face; glows after charge | No wiring; verify light levels | Zero energy; viewing-distance limits |
| Tritium (self-luminous) | Remote / inconsistent lighting | Always glowing; no power | Recycle at end-of-life | 10–20 yr life; regulated |
| Die-cast/Steel | Abuse-prone / rough service | Heavier, rugged housing | Tamper-resistant guards | Most durable; higher cost |
Quick Specs & Dimensions
- Legend/LEDs: Red or green, 6" letters, 3/4" stroke.
- Housing: Injection-molded UL 94 5VA thermoplastic.
- Panel: UV-stabilized ultra-clear acrylic; mirror insert for double-face.
- Power: 120/277 VAC; EM models with 4.8 V Ni-Cd, 90-min backup, ~24-hour recharge.
- Mounting: Ceiling, end, or wall/back; universal canopy included.
- Ratings: UL 924, Damp Location, CEC Title 20.
- Approx. size: 14.4" W × 10.8" H × 1.8" D.
- Warranty: 5-year components; Ni-Cd battery 5-year prorated.
Downloads
Visuals & Explainers
Frequently Asked Questions
Is it approved for commercial use?
Yes. It is UL 924 listed, Damp Location rated, and compliant with NFPA 101/NEC/OSHA; it also meets CEC Title 20.
Does it have battery backup?
Emergency (EM) versions include a 4.8 V Ni-Cd battery delivering at least 90 minutes of illumination; recharge is ~24 hours.
Red or green letters—do I choose at order time?

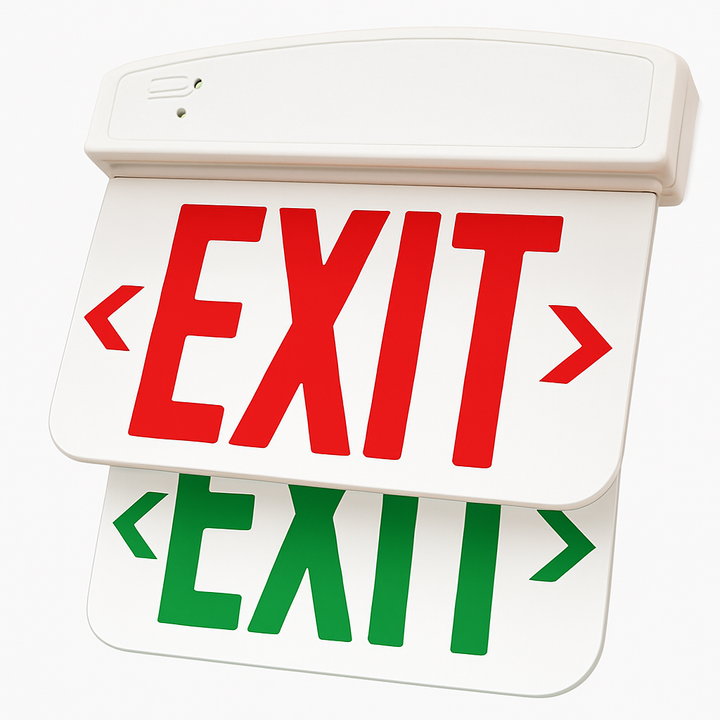

Units are available with red or green legends. Both provide uniform illumination; arrows are field-applied with the included template.
What mounting comes in the box?
A universal canopy supports top/end mounting; the housing backplate includes knockouts for wall/back mounting—standard hardware included.
Can it self-test?
Yes—the self-diagnostics option automates monthly/annual tests and shows simple fault codes on the indicator LED.
Tools
Submittal Helper
Create a one-page submittal with listing, ratings, runtime, and mounting notes for plan review.
AHJ Checklist
Confirm color (red/green), face count, chevrons, 90-minute test log, and attach the spec sheet.
