Overview: The Transformer’s Role

In many UL 924 emergency lights, a small transformer is part of the power-conversion path that feeds the charger/driver board or low-voltage lamp circuits. It helps isolate and condition power so the unit can charge the battery on AC, then drive LEDs on DC for ≥ 90 minutes during outages. Some modern units use fully switch-mode supplies with little or no conventional “iron” transformer, but the function—converting and isolating power—remains.

Common Topologies (Where the Transformer Lives)

  • Charger input stage: AC line (120/277 V) → transformer/SMPS → regulated low-voltage rails for battery charger & logic.
  • LED drive path: some designs use isolated DC-DC stages to power LED heads; others drive heads directly from a battery rail via constant-current drivers.
  • Remote-capable units: the base supplies a 6 V or 12 V low-voltage circuit to remote heads—transformer/SMPS sizing and wiring affect voltage and voltage drop.

Symptoms & Likely Causes

  • Unit dead on AC, OK on battery: open primary/thermal fuse, failed input stage or transformer winding.
  • Buzzing, overheating, or odor: shorted turns, overcurrent from downstream fault, or wrong input tap (120 vs 277 V).
  • Charger never reaches float: sagging low-voltage rail, rectifier/transformer issues, aging electrolytics on the board.
  • Fails 90-minute test despite new battery: driver/transformer can’t sustain load; verify lamp watts vs unit rating.

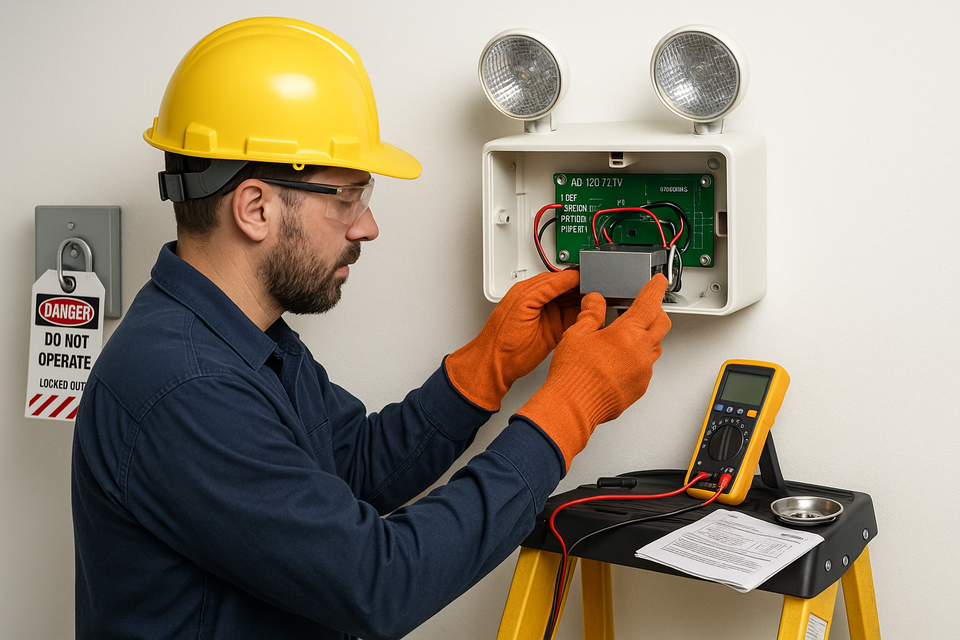

Safe Diagnostics (Step-by-Step)

Safe Diagnostics (Step-by-Step): 1) De-energize and LOTO, 2) Visual inspection, 3) Input sanity (120/277 V leads, neutral/ground, transfer device), 4) Continuity of transformer windings with power off, 5) Measure secondary voltage with safe methods, 6) Isolate downstream load to identify shorts or overloads.
De-energize and lockout/tagout; inspect, confirm input, test windings and secondary, then isolate downstream to pinpoint faults.

De-energize first and follow lockout/tagout. If you’re not qualified for live testing, stop here and replace the unit.

  1. Visual: inspect for heat discoloration, cracked solder joints, swollen capacitors, chafed leads, or loose connectors.
  2. Input sanity: confirm correct input lead (120 vs 277 V), tight neutral/ground, and proper emergency transfer device wiring if present.
  3. Continuity: with power off, check transformer primary/secondary continuity; open winding = replace.
  4. Secondary voltage: with power on and safe methods, measure secondary under no-load and light-load; compare to spec.
  5. Downstream isolation: disconnect downstream board to isolate: if secondary looks normal unloaded but collapses under load, suspect downstream short/overload.

Tip: If a fresh battery fixes runtime but AC charging is flaky, suspect the charger/transformer path. If AC path is sound but lamps flicker on battery, suspect the LED driver/board instead—see Emergency Light Circuit Boards.

Repair vs Replace (Decision Guide)

  • Repair when the fixture is specialty (recessed, architectural, hazardous-rated) and the exact OEM transformer is available.
  • Replace the unit when the transformer/board is obsolete, the housing is standard thermoplastic/steel, or parts + labor ≈ new fixture cost.
  • Upgrade option: if replacing, consider self-testing units to cut monthly/annual labor.

Spec & Compatibility Notes

  • Match input voltage/frequency and secondary ratings exactly (VAC/VDC as specified).
  • Check power/temperature ratings—transformers run warm; allow ventilation and use proper insulators.
  • Verify chemistry compatibility on the charger (SLA/Ni-Cd/LiFePO4) and remote-head voltage (6 V/12 V) where applicable.
  • Use OEM parts to maintain the product’s UL 924 listing; mixing parts can void the listing.

After-Repair Tests & Documentation

  1. Push-to-test on AC (30 s) to verify transfer and charger indicators.
  2. Run the full 90-minute discharge; confirm adequate light at end-of-test.
  3. Log serials/parts replaced; attach spec sheet and photos of aimed heads to the AHJ packet.

FAQ

Can I replace just the transformer with a similar voltage part?

Only if it’s the listed OEM part for your model. Otherwise you risk failing inspection and voiding the UL 924 listing.

The transformer is hot to the touch—is that normal?

Warm is expected; excessively hot, buzzing, or discolored is not. Check load, wiring, and ventilation; replace if overheating persists.

My unit charges but won’t stay bright on battery—transformer or driver?

Likely driver/board or battery capacity, not the transformer. Verify lamp load vs 90-minute rating; test with a known-good battery; then suspect the LED driver.
