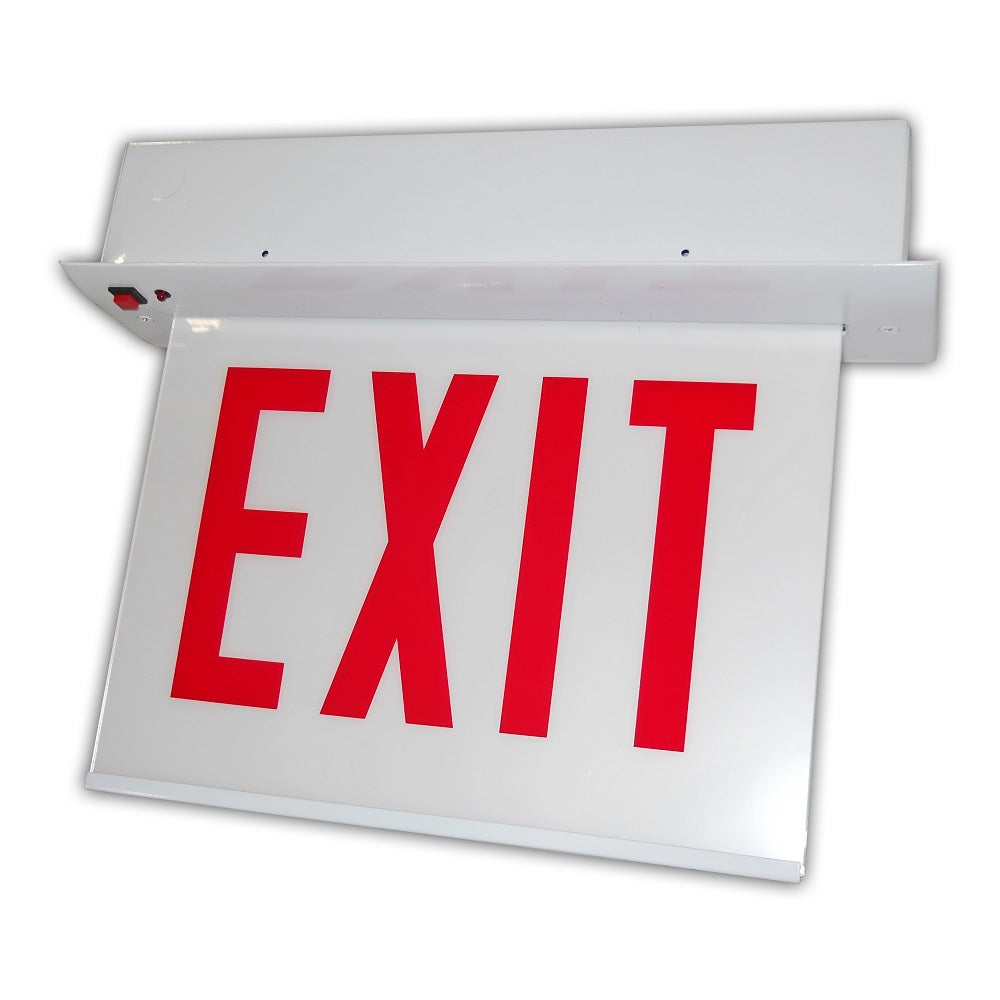

Edge-Lit Recessed Exit Sign – Stair, 8" Red Letters

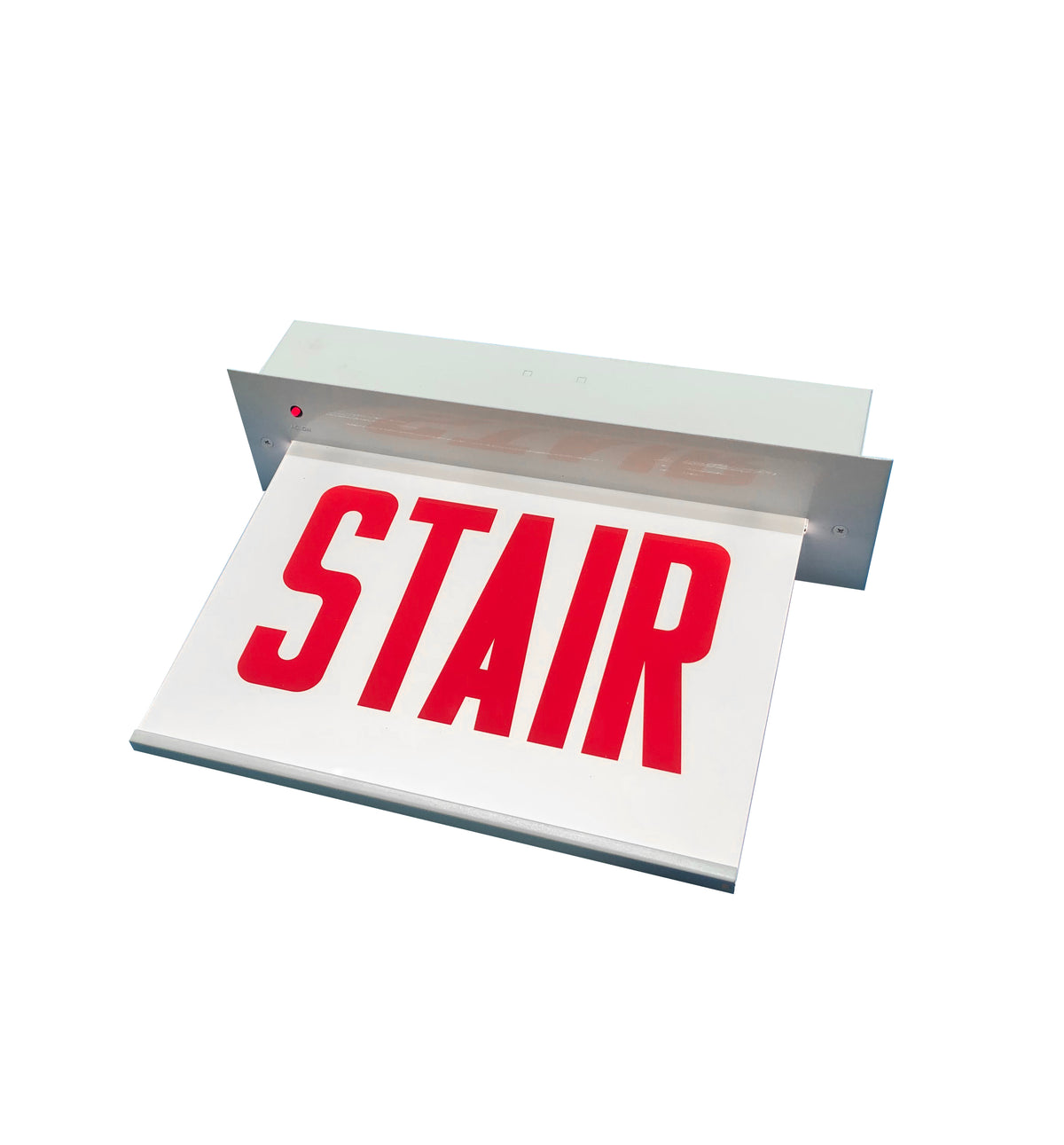

Recessed Edge-Lit Exit Sign – Stair, Chicago Code

This edge-lit recessed exit stair sign delivers LED illumination and battery backup for reliable UL 924 egress. Browse the full Edge-Lit Exit Signs lineup, or see jurisdictional options in Chicago-Approved Exit Signs.

Key Features

• City of Chicago Approved; UL 924 listed
• LED edge-lit acrylic legend for uniform EXIT/STAIR visibility
• Recessed ceiling mount for drywall or T-bar; bar hangers included
• Optional WM trim kit enables wall mounting
• Field-selectable single or double face; self-adhesive chevron arrows
• 120/277 VAC input with status LED & push-to-test
• EM models: 4.8 V Ni-Cd with up to 120 min runtime; solid-state transfer & two-rate charger (~24 h)
• Extruded aluminum housing; detachable trim (white or natural)
• Below-ceiling access for service and battery replacement
• Damp-location rated (0–50 °C); CEC Title 20 certified
• Meets plenum space requirements for Chicago installations

The CARELZXTE Chicago-approved recessed edge-lit EXIT/STAIR sign pairs a precision-extruded aluminum housing with a UV-stabilized, silk-screened acrylic panel and a sleek “floating” legend—ideal for modern commercial interiors and corridors. Designed for recessed installation in drywall or T-bar grid ceilings, it uses ultra-bright white LEDs for crisp visibility. If your spec includes extended emergency runtime, note the optional battery backup (verify 90 vs. 120 minutes per spec).

Download CARELZXTE Edge-Lit Exit Sign Spec Sheet (PDF)

Illumination

• Long-life white LEDs with Edge Lit acrylic panel for uniform EXIT or STAIR legends
• Single- or double-face with field-selectable configuration

Electrical

• 120/277 VAC input with bi-color status LED and push-to-test button
• 4.8 V Ni-Cd battery (EM models) – 120-minute emergency runtime
• Solid-state transfer switch and two-rate charger (24 h recharge)
• Input: 4.5 W / 0.042 A @ 120 V • 4.9 W / 0.020 A @ 277 V (EM)

Mounting

• Recesses into drywall or T-bar ceiling; bar hangers included
• Optional WM trim kit allows Recessed Lights wall mounting
• Self-adhesive chevrons for field arrow configuration

Housing / Trim

• Extruded aluminum body with detachable trim (white or natural finish)
• Below-ceiling access for maintenance and battery replacement

Options

• WM — Recessed Lights wall-mount trim kit
• EXIT or STAIR legends with no, left, right, double, or left/right arrows

Warranty / Listings

• 5-year warranty on electronics and housing; 5-year prorated battery
• UL 924 listed for damp locations (0 °C – 50 °C)
• Complies with Chicago Approved Exit Sign regulations and plenum space requirements
• Compliant with NFPA 101, NEC, OSHA; CEC Title 20 certified

Dimensions

• Housing: 15¾ in L × 3¼ in D
• Ceiling opening: approx. 14½ in L
• Trim height: 12½ in • Trim depth: approx. 4½ in

Frequently Asked Questions

Is the CARELZXTE sign approved for Chicago code?

Yes. The CARELZXTE Chicago-Approved Recessed Edge-Lit Exit / Stair Sign is UL 924 listed, meets City of Chicago Approved signage and plenum requirements, and complies with NFPA 101, NEC, and OSHA.

What types of mounting are supported?

The fixture is designed for Recessed Lights installation in drywall or T-bar ceilings. It also supports wall mounting with the optional WM trim kit.

Does this unit provide emergency battery backup?

Yes. EM models include a 4.8 V Ni-Cd battery that provides up to 120 minutes of illumination during power loss.

What arrow and legend configurations are available?

The CARELZXTE supports EXIT or STAIR legends and includes self-adhesive chevrons for field configuration — left, right, double, or none.

Can the sign be serviced from below the ceiling?

Yes. The extruded aluminum body includes below-ceiling access for easy battery replacement and maintenance.
