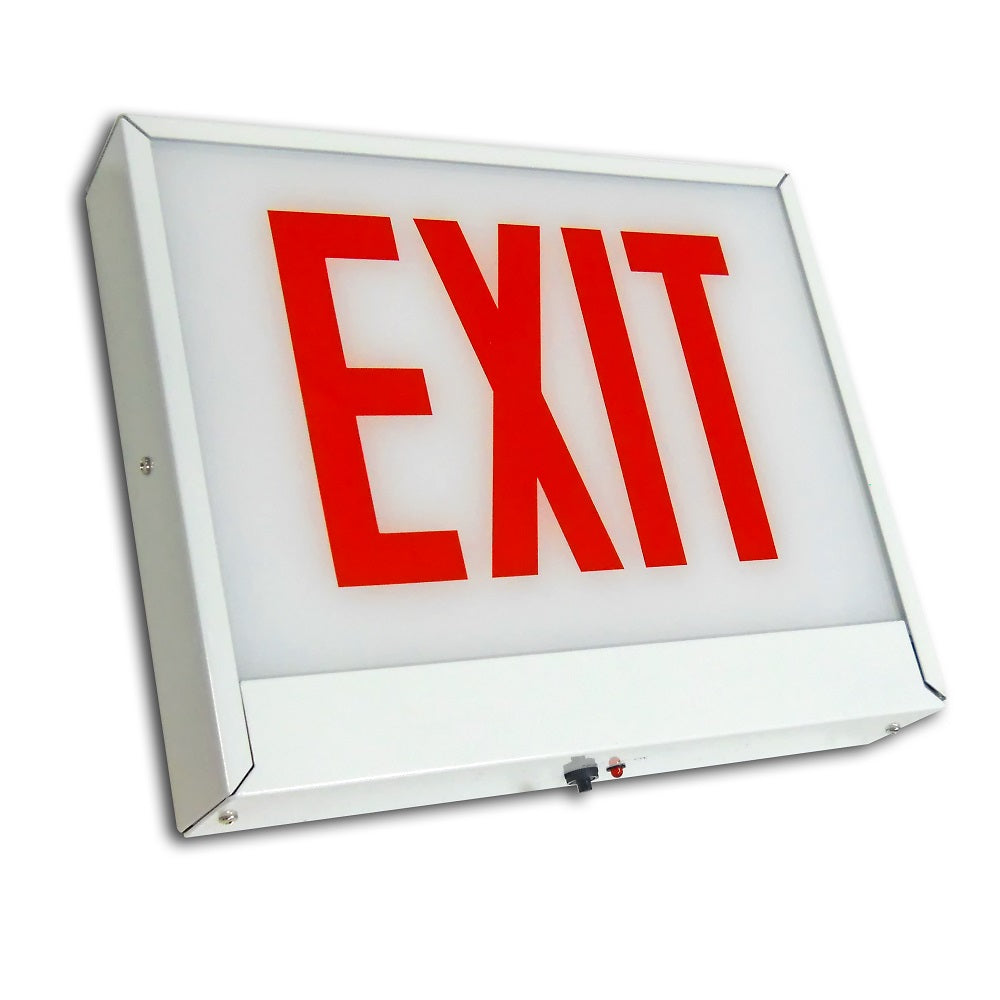

Chicago-approved steel exit and stair sign with red letters on white background

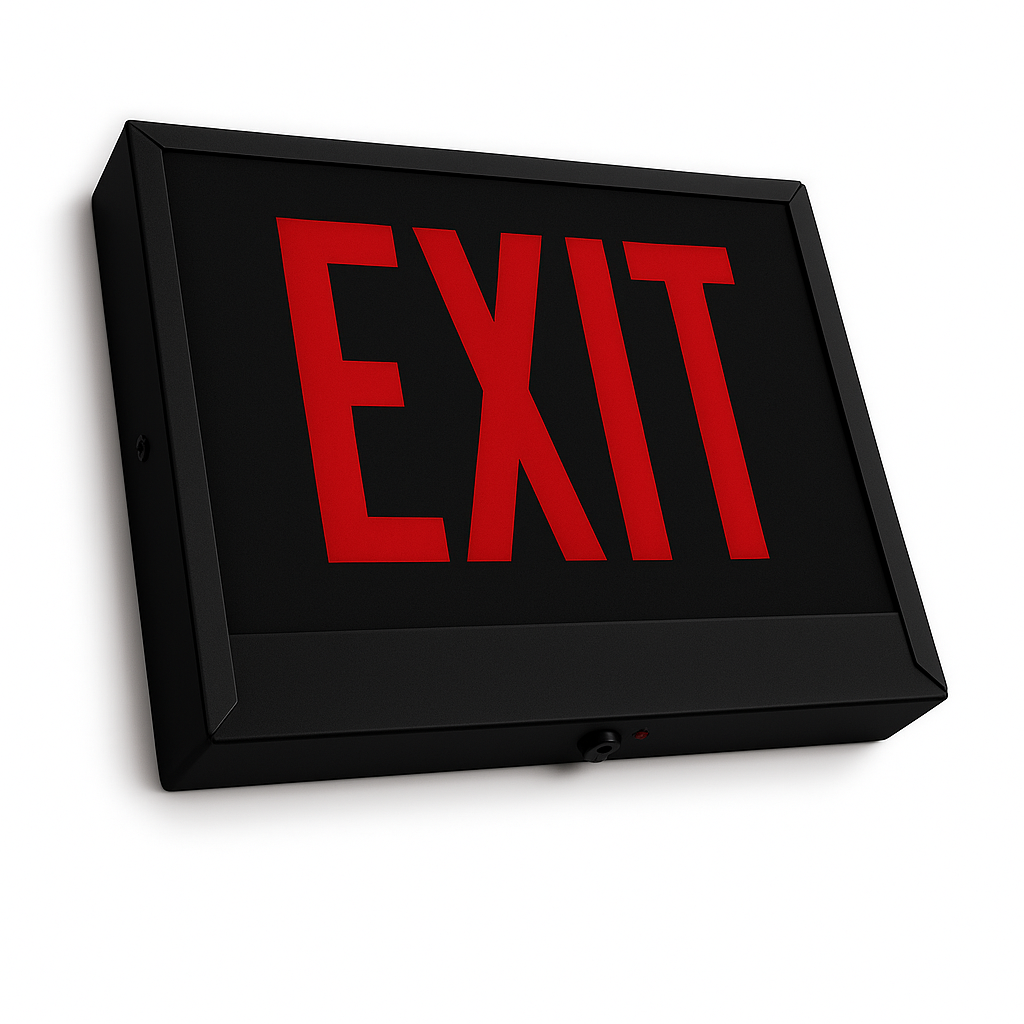

Chicago-approved steel exit and stair sign with red letters on back background
Chicago-approved steel exit and stair sign with red letters on white background
Chicago-approved steel exit and stair sign with red letters on back background

Chicago-Approved Steel Exit - Stair Sign

SKU: CAXTEU1RW-NA
$110.41

Got questions?

Give us a call 800-847-1955!

Chicago‑Approved Steel EXIT / STAIR Sign — 6″ Red Letters, 120/277 V, 120‑min Ni‑Cd (EM), Single/Double Face — Features & Specs

The CAXTE Chicago‑Approved Steel EXIT / STAIR Sign pairs a powder‑coated 20‑gauge steel cabinet with a bright red‑on‑white legend and field‑configurable arrows. It’s built for stairwells, corridors, and public interiors that require Chicago‑approved LED exit signs. Emergency (EM) models include a 4.8 V Ni‑Cd battery with up to 120 minutes of runtime.

Chicago Approved UL 924 LED Battery Backup (EM) / 120 min Single / Double Face 120/277 V Damp Location

Key Features

  • City of Chicago Approved; UL 924 listed.
  • LED‑illuminated EXIT/STAIR legend with uniform brightness.
  • 120/277 V dual‑voltage with status LED and push‑to‑test.
  • EM models: 4.8 V Ni‑Cd battery, up to 120 min runtime; ≈24‑hour recharge.
  • Solid‑state transfer and two‑rate charger.
  • Universal mounting: top/end canopy or wall via rear backplate.
  • Convertible: ships single‑face; field‑convertible to double‑face.
  • Rugged 20‑gauge powder‑coated steel housing (white or black).
  • Removable steel chevron arrows for directional marking.
  • Damp‑location rated (0–50 °C); CEC Title 20 compliant.
  • 5‑year electronics/housing warranty; 5‑year prorated battery.

Related Chicago Guides

EXIT vs. STAIRS Panels—Chicago Rules Arrow Placement for Egress (Chicago)

Spec Sheet

Download Steel Exit Sign Spec Sheet (PDF)

Illumination

  • Long‑life white LEDs for uniform EXIT or STAIR legend visibility.
  • Field‑selectable legends with multiple arrow directions.

Electrical

  • 120/277 V dual‑voltage input with bi‑color indicator and push‑to‑test for quick checks (see our LED exit signs collection).
  • 4.8 V Ni‑Cd battery (EM models) — up to 120‑minute emergency runtime.
  • Solid‑state transfer; two‑rate charger (≈24‑hour recharge).
  • Power draw: 5 W • 0.10 A @ 120 V • 0.05 A @ 277 V.

Mounting

  • Top or end mount using the included steel canopy.
  • Wall mount via the universal rear backplate knockouts.
  • Convert from single‑face to double‑face in the field as needed.

Housing

  • Durable 20‑gauge powder‑coated steel — white or black finish.
  • Removable steel chevron arrows for directional marking.

Options

  • Legend options: EXIT or STAIR.
  • Arrow configurations: None, Left, Right, or Double.

Warranty / Listings

  • 5‑year warranty on electronics and housing; 5‑year prorated battery.
  • UL 924 listed for damp locations (0–50 °C); City of Chicago Approved; CEC Title 20 certified.
  • Complies with NFPA 101, NEC, and OSHA. For plan‑review notes, see the Chicago Compliance Guide.

Dimensions

  • Cabinet: 12 in W × 10 in H × 2 in D
  • Overall depth to face: 4½ in

Frequently Asked Questions

Is the CAXTE sign approved for use in Chicago?

Yes. The CAXTE Chicago‑Approved Steel EXIT / STAIR Sign is UL 924 listed for damp locations and meets City of Chicago requirements.

Does this fixture include emergency backup?

Yes. EM models include a 4.8 V Ni‑Cd battery that powers the sign for up to 120 minutes during an outage.

What mounting options are supported?

Mount to the wall using the universal backplate or choose top/end mounting with the included steel canopy.

Can I configure the sign to show arrows?

Yes. The faceplate includes field‑removable steel chevrons for left, right, double‑arrow, or no‑arrow configurations.

Is the sign single or double face?

It ships single‑face and includes components to convert to double‑face in the field.
