When emergency lights face rain, spray, or harsh outdoor conditions, weather-sealed fixtures keep egress paths lit for the required 90 minutes. Here’s how to choose the right rating—wet vs damp, IP/NEMA protection—and specify reliable, inspection-ready units.
Choosing wet location emergency lights? This guide connects wet location emergency lights and wet location controls searches to fixture selection: moisture exposure, ratings, battery backup, controls, mounting, test access, and whether a wet-location unit or a standard emergency light is appropriate. Use it for covered exterior routes, damp utility spaces, and other areas where moisture can affect product choice. Browse Wet Location Emergency Lights, compare Emergency Lights, or review Wet Location Exit Signs when signage is part of the project.
Last updated: June 2026
Wet emergency light selection path
| Decision point | Verify | Next check |
|---|---|---|
| Exposure | Covered damp area, rain, hose-down, or cold exterior | Open |
| Fixture type | Integrated heads, remote-capable unit, or remote heads | Open |
| Code path | UL 924 runtime, placement, photometrics, and test records | Open |
| Buying path | Wet-location lights, combos, or separate exit signs | Open |
What’s New in 2025 (Quick Hits)
- Improved gaskets & lands: wider sealing surfaces maintain compression through seasonal expansion.
- Electronics hardening: conformal coatings and potting defend against condensation.
- Smarter heat kits: LiFePO4 + thermostatic heaters preserve 90-minute runtime in sub-freezing temps.
- Long-throw optics: tighter beams extend coverage for stairs, ramps, and walks with fewer fixtures.
- Sealed entries: more models include liquid-tight hubs and gland nuts for every penetration.
Wet vs Damp Ratings: The Difference
Damp-location units tolerate humidity/condensation in sheltered areas (canopies, locker rooms) but not direct water. Wet-location units are built for direct rain, snow, and hose spray. Using damp models in wet zones shortens life and risks failure; using wet-rated in damp zones is acceptable and safer for egress reliability.
Rule of thumb: If wind-driven rain or wash-down can reach the fixture, specify wet-location.
What Makes a Fixture “Wet-Rated”
Wet-location emergency lights must be UL 924 listed and explicitly marked “Suitable for Wet Locations.” Look for:
- NEMA 4 / 4X enclosures: hose-down safe; “4X” adds corrosion resistance for coastal/chemical sites.
- High IP ratings: IP65/IP66 indicate dust-tight with protection against water jets.
- Sealed interfaces: gasketed lenses/covers, O-ringed indicators/buttons, stainless hardware.
- Wide temp ranges: options for heaters or low-temp battery packs; UV-stable lenses for sun exposure.
NEMA/IP Ratings & Sealing
- Gasket design: continuous silicone/rubber gaskets with even compression; secure latches/screw patterns.
- Leak hot-spots: poorly sealed pilot lights, test ports, or conduit entries—spec fixtures that include seals for each opening.
- Install best practices: use liquid-tight connectors; tighten covers in a star pattern to OEM torque; re-check after 24 hours.
- Materials: UV-stabilized polycarbonate, powder-coated aluminum, fiberglass, or stainless; stainless fasteners to prevent rust tracks.
Pro tip: Near coast/chemicals, pick NEMA 4X and verify salt-spray / corrosion performance.
Cold-Weather Performance
- Heater kits: keep batteries in their optimal window to preserve 90-minute runtime during freezes.
- Battery chemistry: LiFePO4 outperforms SLA/Ni-Cd in cold and lasts longer.
- Circuit loading: factor heater wattage when many units share a circuit.
- Real-world testing: perform the annual 90-minute test at winter temps.
Alternate strategy: place the power pack indoors and feed remote heads outside—keep batteries warm while lighting the exterior path.

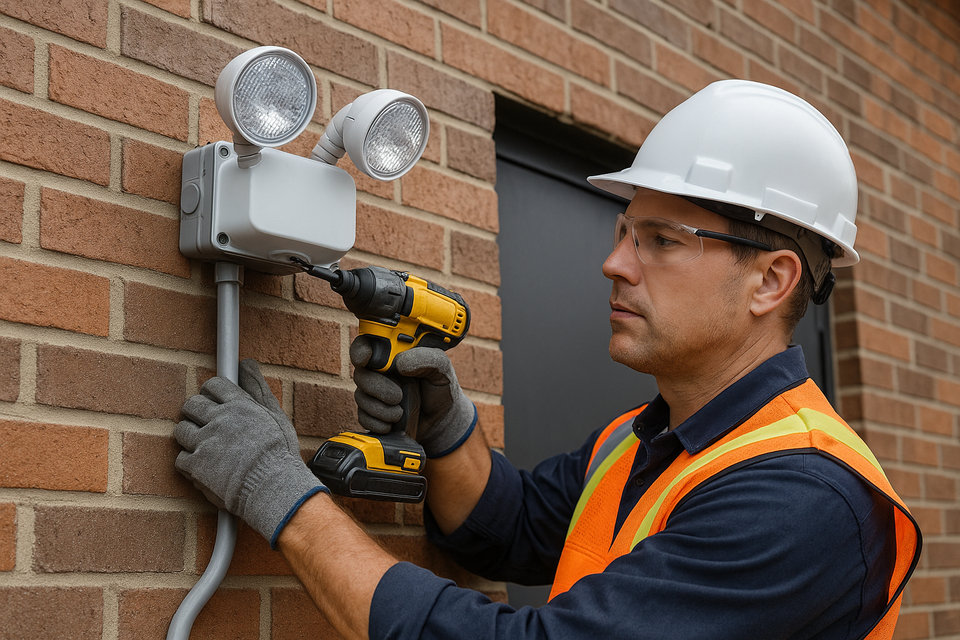

Outdoor Mounting & Wiring
- Use rated fittings: rain-tight or liquid-tight connectors for every entry—don’t rely on bare conduit threads.
- Avoid water traps: use drip loops; prefer bottom/side entries where possible.
- Site placement: away from downspouts/roof edges; under overhangs when available.
- Surface prep: shim or use plates on rough masonry to maintain full gasket contact.
- Lock the aim: tighten head set-screws for wind/vibration; use wire guards where impacts occur.
- Extend coverage: pair a wet-rated host with wet-rated remote heads to reach alcoves/turns with fewer batteries.
Photometrics & Aiming
- Output & beams: choose flood for broad areas; narrow beams for throw distance; corridor optics for paths.
- Aim for egress: one head down the route, one to landings/doors/intersections; verify stairs/ramps.
- Night checks: walk with a meter; find and fix “dead zones” from rails, columns, parked cars.
- Meet code: target ≥1 fc avg and ≥0.1 fc min at floor per egress standards.
- Manage glare: angle heads to wash surfaces, not eyes; consider visors/shields if needed.
Spec Checklist
- Listings: UL 924 and “Suitable for Wet Locations.”
- Enclosure: NEMA 4/4X and/or IP65/IP66.
- Temperature: operating range covers site climate; add heaters for freezes.
- Runtime: ≥90 minutes at required illuminance; battery type and availability noted.
- Diagnostics: consider self-testing for faster inspections.
- Photometrics: lumen/beam match spacing and mounting height; high-output options where needed.
- Remote capacity: confirm watts/voltage for any external heads (wet-rated).
- Housing: UV-stable plastics or coated metals; vandal-resistant features as needed.
- Mounting: included plates/boxes; compatible with standard J-box where applicable.
- Indicators: visible charge/test access; remote test options for hard-to-reach installs.
- Local rules: check jurisdictional specifics (e.g., Chicago/NYC material or marking requirements).
Commissioning & Maintenance
- Initial test: charge 24+ hours, then run a full 90-minute discharge; verify aim/coverage.
- Re-torque & inspect: re-tighten covers; check for leaks after first storm; re-seal if needed.
- Label & log: note install/test dates; ID units for easy AHJ review.
- Ongoing: monthly quick tests, annual full tests, plus gasket/ingress checks and lens cleaning.
- Leverage self-test: indicator LEDs surface faults early—see our Self-Testing Guide.
Use-Case Scenarios
Outdoor Stairwell (Fully Exposed, Coastal)
Pick a NEMA 4X polycarbonate or fiberglass unit with stainless hardware; mount at top and mid-landing. Use liquid-tight entries and aim one head down treads, one to the egress landing. Night test confirms ≥1 fc on steps even in driving rain; corrosion resistance preserves seals in salty air.
Parking Garage Breezeway (Covered, Wind-Blown Rain)
Though “covered,” wind pushes rain inside—spec wet-location IP66 fixtures on side walls every ~30 ft. Add self-diagnostics for quick patrol checks and wire guards for carts/impacts. Result: compliant illumination in storms without compromising enclosure integrity.
Related installation note: For exterior doors or washdown areas, confirm mounting support, sealing, and aiming with the emergency lighting installation options guide.
Related housing note: Environment rating comes first, but housing still matters; use the emergency light housing comparison for interior, stairwell, and rugged locations.
Related combo guide: At exterior exits, compare sealed emergency lights with wet-location exit sign emergency light combos when the doorway needs both sign and egress lighting.
International spec note: For exterior or washdown export projects, pair wet-location ratings with the international emergency lighting guide.
Related fixture note: Where damp or exposed areas still need a finished look, compare die-cast aluminum emergency lights with the required wet-location rating.
FAQ
Do all emergency lights need wet-location ratings?
No. Only those exposed to water. All must be UL 924 listed; add “Wet Location” where conditions demand.
Are damp-rated lights OK under canopies?
Not if wind-driven rain or sprinklers can reach the fixture. In most outdoor air, wet-rated is the safe choice.
What does “UL 924 wet location listed” mean?
The unit meets UL 924 egress performance and is constructed/tested for wet environments—inspectors look for both.
How do I confirm NEMA/IP ratings?
Check the spec sheet/label. Many products list both (e.g., NEMA 4X, IP66).
Will these work in freezing temperatures?
Yes—spec low-temp operation or heater kits; verify in winter with a full-duration test.
Do wet-location units need special maintenance?
Same monthly/annual tests plus seal checks. Keep lenses/weep holes clear; watch for gasket wear.
What about outdoor exit signs/combos?
Use wet-location exit signs and wet-location combo units to match exterior doors and discharge paths.
