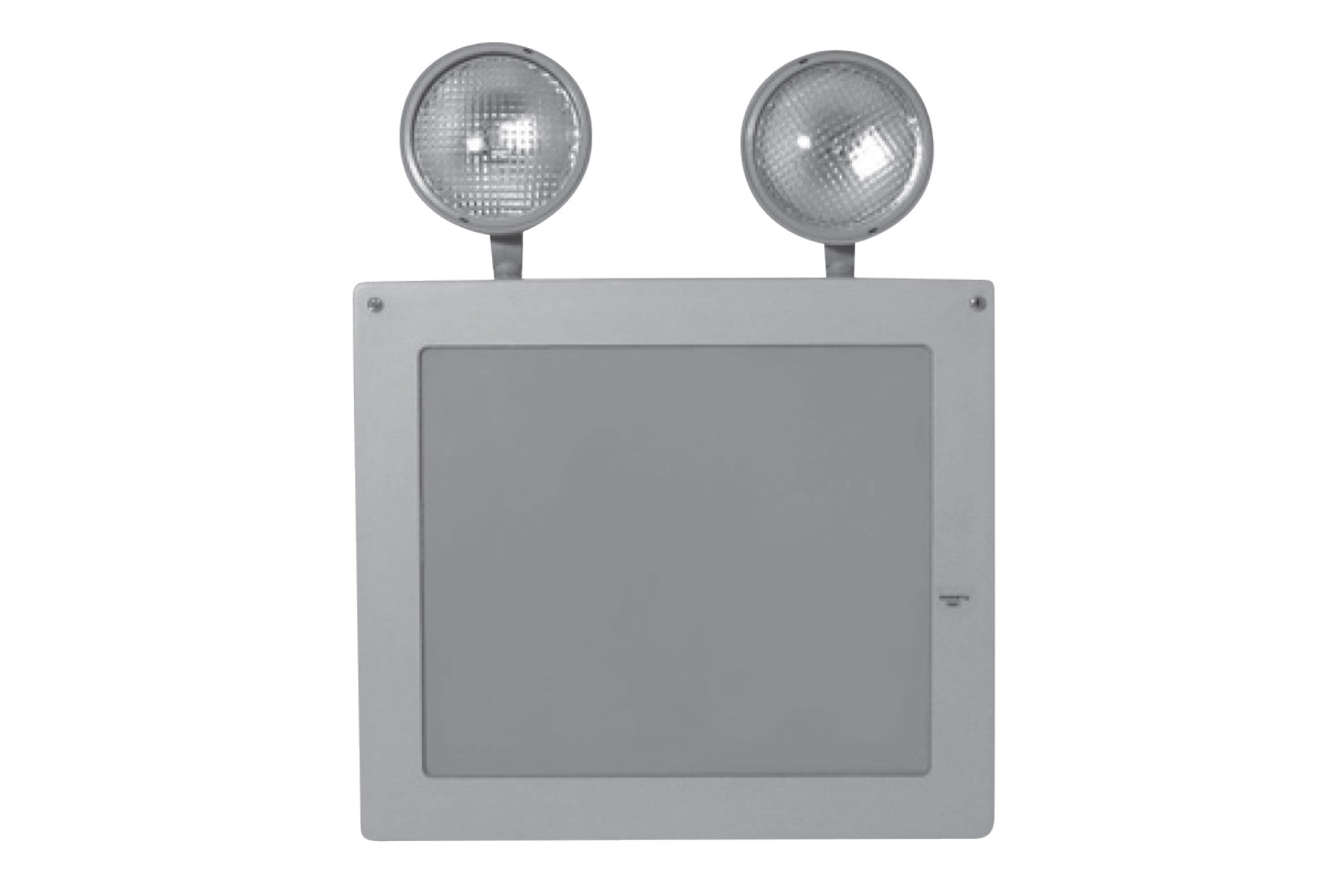

Hazardous-location emergency light with PAR36 heads – front view
CP-EMX NEMA Hazardous Location Rated Emergency Lighting
CP-EMX NEMA Hazardous Location Rated Emergency Lighting Dimensions

Hazardous-Location Emergency Light (Class I Div 2, NEMA 4X)

SKU: CP-EMX-6-36-J0609-2
$1,718.42

Got questions?

Give us a call 800-847-1955!

Hazardous-Location Emergency Light - Class I Div 2, NEMA 4X Fiberglass, Dual PAR36 Heads, 90 min Battery - Features & Specs

The CP-EMX Champion Extreme Hazardous-Location Emergency Light is built for environments where flammable gases or vapors may be present. This CSA-listed unit meets UL 924 and features a corrosion-resistant NEMA 4X fiberglass cabinet with two fully adjustable PAR36 lamp heads. Rated for Class I Div 2, Groups A–D, the CP-EMX delivers 90 minutes of reliable egress lighting for refineries, wastewater plants, and other industrial facilities.

CSA / Meets UL 924 Class I Div 2 (A–D) NEMA 4X Dual PAR36 Heads 90 min Runtime 120/277 VAC Fiberglass Cabinet Corrosion Resistant Remote Loads Supported Brownout Protection

Need a complete solution? Pair this with our hazardous location exit signs or browse all explosion proof emergency lights.

Key Features

  • Hazardous-location rated: Class I Division 2, Groups A–D (T2B); suitable for Class I, Zone 2 IIA/IIB/IIC (T1/T2); CSA Listed; meets UL 924; NEMA 4X enclosure.
  • Two fully adjustable PAR36 heads with 9 W tungsten lamps; impact-resistant, weatherproof housings.
  • Corrosion-resistant fiberglass cabinet with stainless-steel breather valve; gray finish.
  • Battery options: sealed lead-calcium or Ni-Cd; 90-minute emergency runtime; up to 48 hour max recharge (24 hour typical).
  • 120/277 VAC input; low-voltage disconnect, brownout protection, magnetic test point.
  • Mounting: four stainless feet for secure wall mounting; front-hinged access panel for service.
  • Supports remote lamp loads via terminal connectors.
  • Options: G2 self-test/diagnostics, side-mounted heads (SMH), 120/277 V time delay (TA/TB), tamper-resistant hardware (TRH), ammeter/voltmeter, fire-alarm interface.
  • Compliance: meets UL 924 & CSA C860; NFPA 101 and NEC.
  • BAA/ARRA compliant.

Related Wet-Location Guides

Selecting Outdoor Emergency Lights Wet-Location Emergency Egress Guide

Spec Sheet

Download Hazardous Location Emergency Unit Spec Sheet (PDF)

Illumination

  • Two fully adjustable PAR36 heads with 9 W tungsten lamps.
  • Impact-resistant, weatherproof heads match the gray enclosure.
  • Supports remote lamp loads via terminal connectors.

Electrical

  • Dual-voltage 120/277 VAC input (60 Hz).
  • Maintenance-free sealed lead-calcium or Ni-Cd battery; 90-minute emergency runtime.
  • Recharge: up to 48 hours maximum (24 hours typical).
  • Low-voltage disconnect, magnetic test point, and brownout protection.

Mounting

  • Four stainless-steel mounting feet pre-installed for secure surface wall mounting.
  • Front-hinged access panel simplifies installation and maintenance.

Housing / Construction

  • One-piece fiberglass cabinet resists corrosion and chemical exposure.
  • NEMA 4X housing with stainless-steel breather valve.

Options & Accessories

  • G2 — Guardian self-test / diagnostics.
  • SMH — Side-mounted heads.
  • TA / TB — 120 V / 277 V time delay (5, 10, 20 min).
  • TRH — Tamper-resistant hardware.
  • A — Ammeter • V — Voltmeter • A11 — Fire alarm interface.

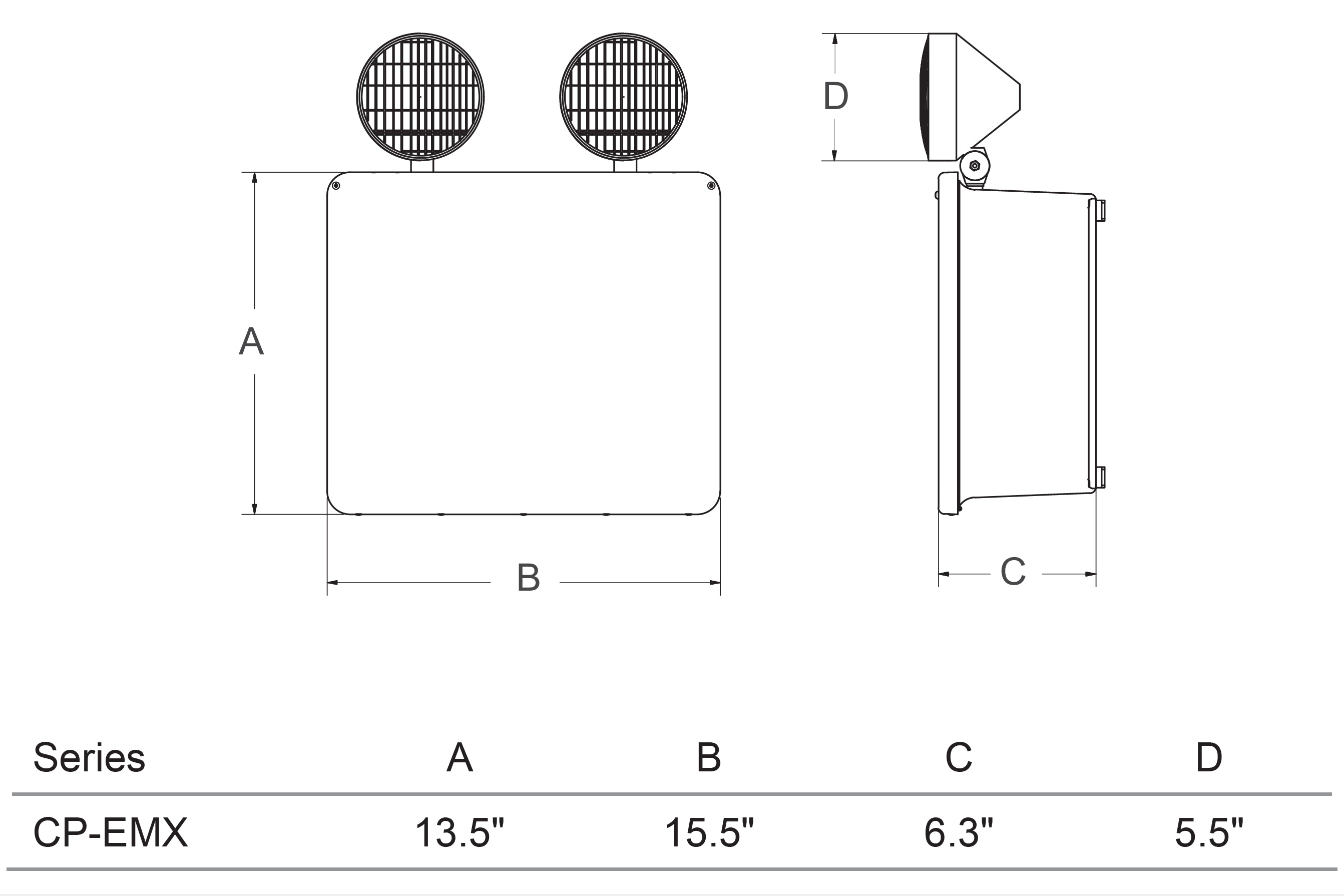

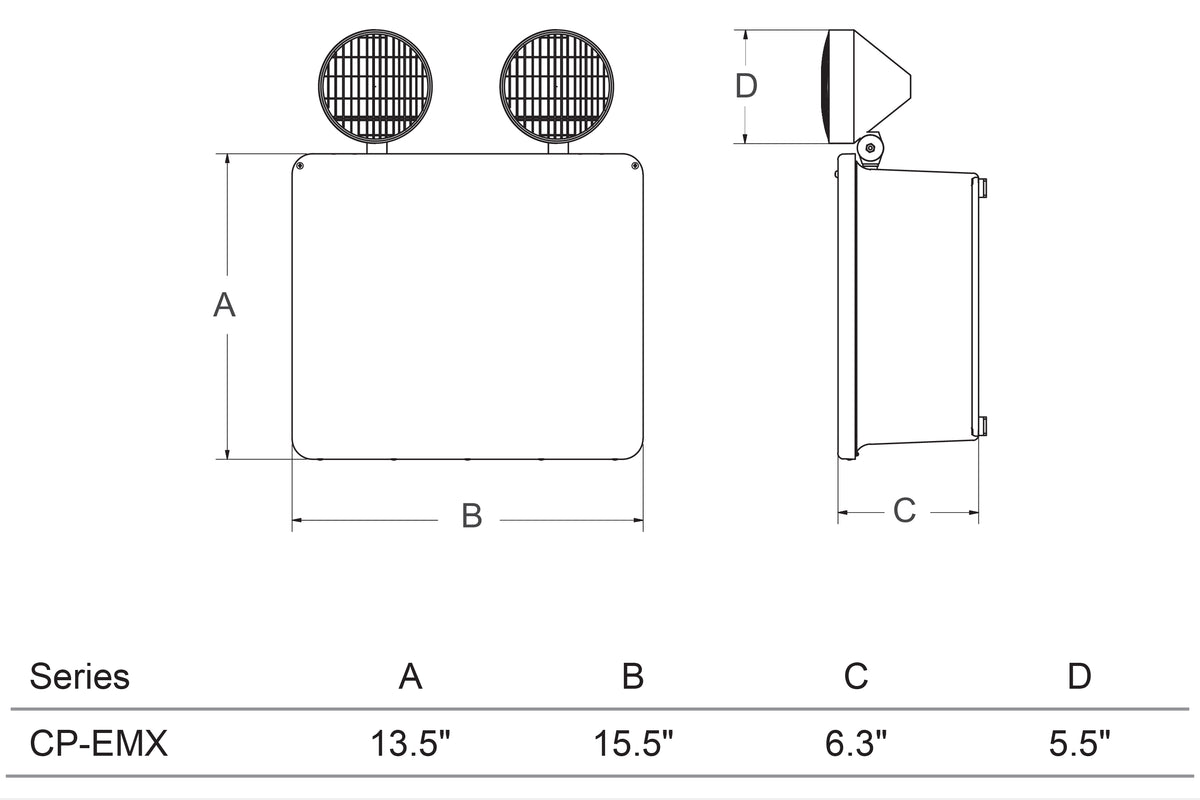

Dimensions

  • 13.5" H × 15.5" W × 6.3" D (plus approx. 5.5" head stand-off)

Warranty / Listings

  • Five-year warranty on electronics and housing; battery five-year prorated.
  • CSA listed; meets UL 924, CSA C860, NFPA 101, and NEC.
