Thin LED Exit & Emergency Light Combo

Compact High‑Lumen LED Exit & Emergency Combo — Field‑Selectable Red/Green Legend, Dual 1.1 W Heads (HL 2.0 W Opt.), 2.0 W Remote (Opt.), 120/277 V — Features & Specs

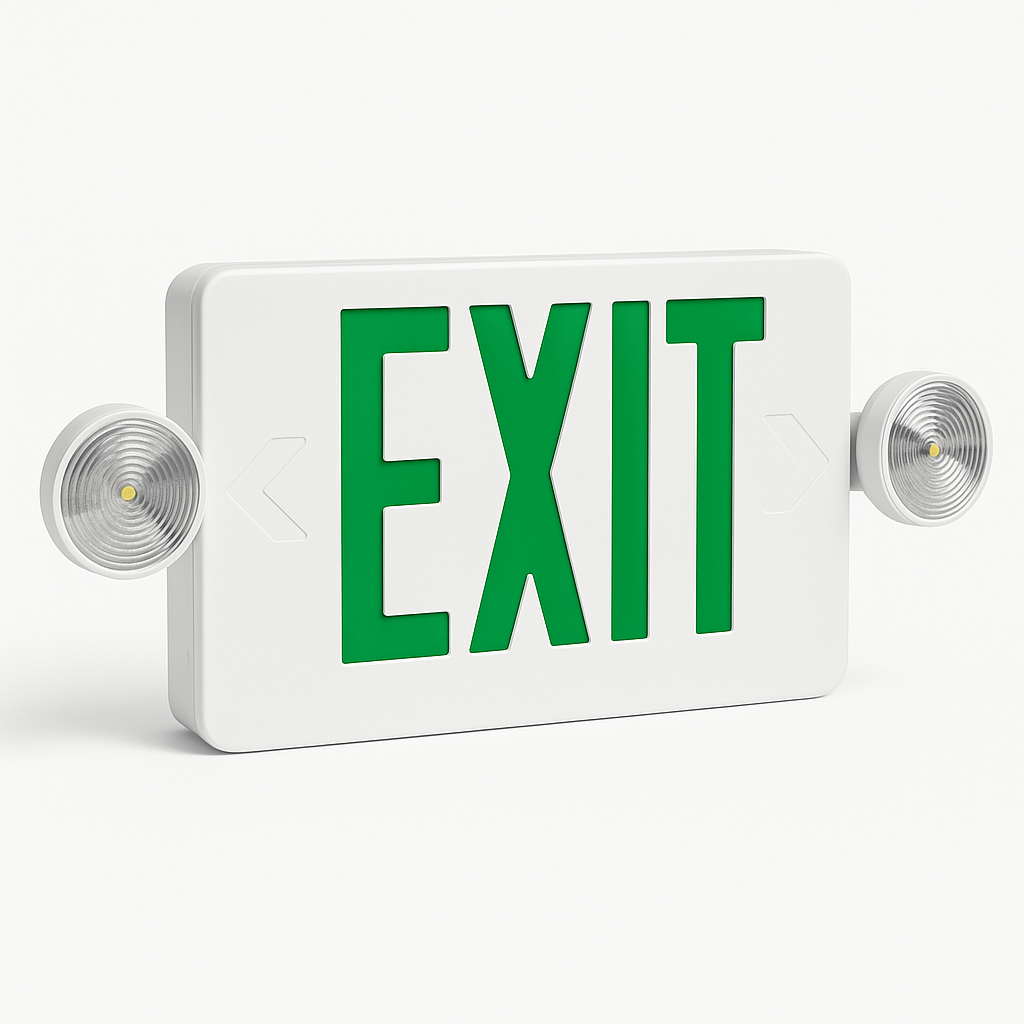

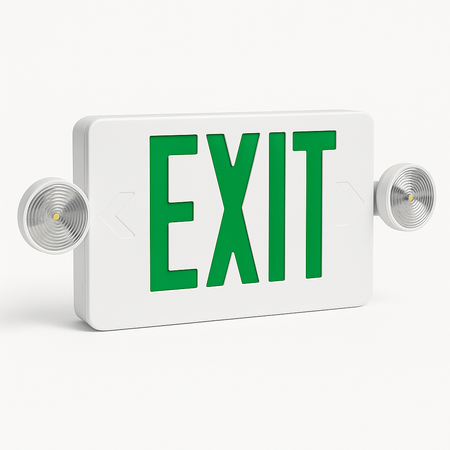

The CTXTEU LED exit & emergency combo brings together a high‑visibility EXIT legend and dual LED lamp heads in a slim, installer‑friendly package for modern commercial interiors. A universal‑voltage driver, 3.6 V Ni‑Cd pack with 90‑minute emergency operation, and smart charging electronics make it a reliable choice for both new work and retrofit projects. Choose the standard 1.1 W head package for corridor coverage, step up to the HL 2.0 W option where longer spacing is required, or specify the RC 2.0 W remote‑capacity version to power an external remote head (HL and RC are mutually exclusive). For neighboring product families and design alternatives, browse high‑lumen exit sign + emergency combos, compare other compact units in our exit sign and emergency light combos, or see architectural styles under edge‑lit exit signage.

Key Features

• UL 924 listed; damp‑location rated (0–50 °C / 32–122 °F) for interior egress paths.
• Slim, low‑profile enclosure molded from UL 94 5VA flame‑retardant thermoplastic (white or black).
• Dual adjustable LED heads, 1.1 W each; HL option ups each head to 2.0 W for longer spacing.
• Field‑selectable legend color: red or green; single or double face.
• Universal 120/277 VAC input with bi‑color status LED and push‑to‑test for quick checks.
• 3.6 V Ni‑Cd battery delivers the code‑required 90‑minute emergency runtime.
• Solid‑state transfer and two‑rate charger (~24 h full recharge) for dependable cycling.
• EZ‑snap canopy for top/end mount and a universal knockout backplate for wall mount.
• RC option: 2.0 W remote‑head output (not compatible with HL).
• 1‑year electronics/housing warranty; battery prorated 1 year; CEC Title 20 compliant.

Applications & Design Notes

CTXTEU is purpose‑built for facilities that need a thin profile and straightforward installation: offices, small format retail, schools, and tenant improvements where fast J‑box alignment and clean lines matter. The 1.1 W heads are a great fit for 8–10 ft mounting heights and typical 3–6 ft egress paths; select the HL 2.0 W package when ceiling heights increase, corridors open into wider lobbies, or spacing needs to stretch between doors. If the plan calls for a small patch of light around a corner—say a short vestibule or an offset corridor—use the RC 2.0 W version and power an external remote head rather than adding another full combo housing (remember: HL and RC cannot be combined).

For consistency in wayfinding, keep the legend color uniform (red or green) on a per‑floor basis. During aiming, tilt heads slightly down‑corridor and overlap the beams at the door leaf to improve vertical illuminance on hardware and signage. Document chevron arrowing on submittals, and coordinate canopy orientation with ceiling lines so the fixture reads cleanly from the approach side.

Related Exit + Emergency Combo Guides

Spec Sheet

Download CTXTEU Exit & Emergency Combo Spec Sheet (PDF)

Specifications (Overview)

• Legend: LED EXIT, field‑selectable red/green; single or double face; snap‑out chevrons.
• Heads: Two adjustable 1.1 W LEDs; HL = 2.0 W per head.
• Remote Output: RC 2.0 W remote‑head capacity (RC and HL are mutually exclusive).
• Listings: UL 924; damp 0–50 °C; compliant with NFPA 101, NEC, OSHA; CEC Title 20.

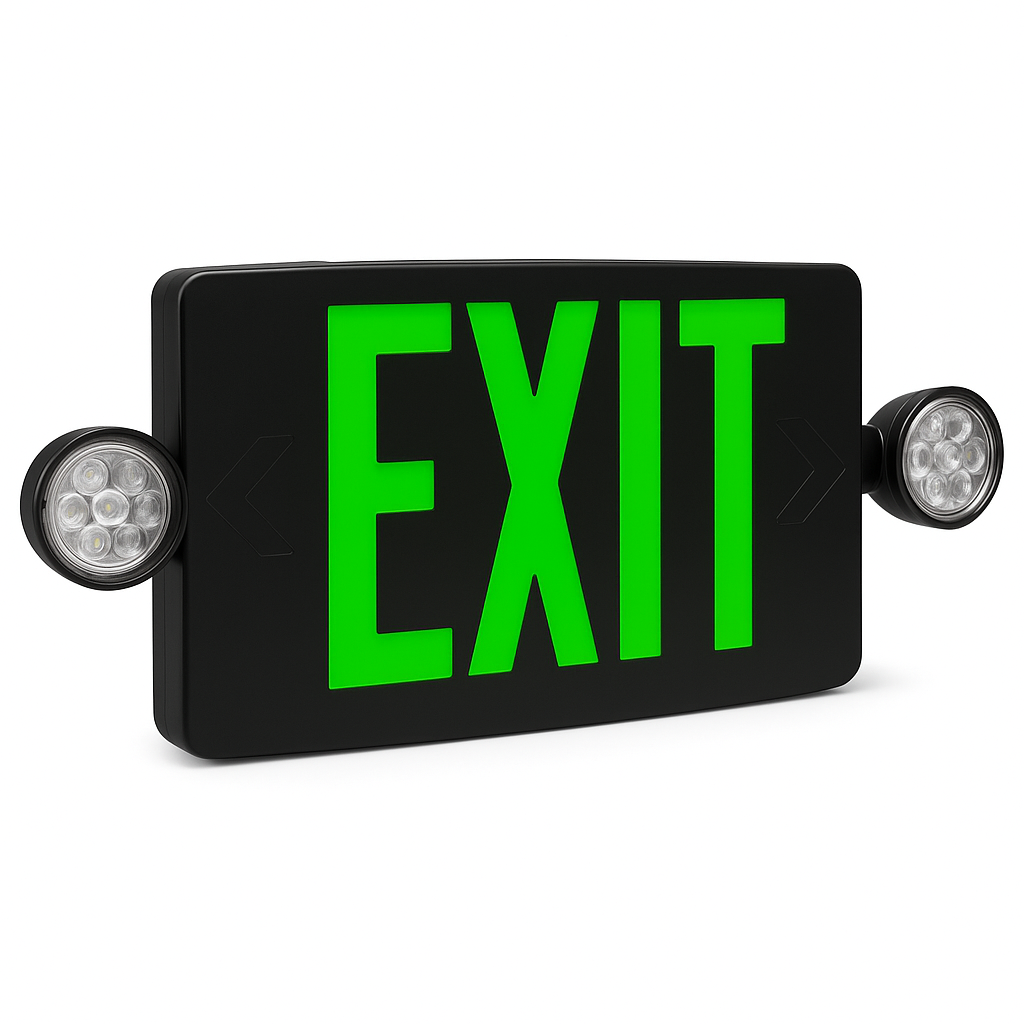

• Construction: UL 94 5VA thermoplastic; white or black finish.
• Electrical: Universal 120/277 VAC input; bi‑color status LED; push‑to‑test; solid‑state transfer; two‑rate charger.

Illumination

• Two 1.1 W adjustable white LED heads with integrated optics for wide corridor coverage.
• HL 2.0 W head option extends spacing on higher ceilings or wider egress paths.
• High‑contrast EXIT legend, field‑selectable red/green for wayfinding consistency.

Electrical

• Universal 120/277 VAC input with bi‑color indicator (green = normal / red = service) and push‑to‑test switch.
• 3.6 V Ni‑Cd pack provides a minimum 90‑minute emergency runtime.
• Solid‑state transfer engages automatically during power loss; two‑rate charger restores full charge in ~24 h.
• RC option: 2.0 W total remote budget for compatible remote heads.

Mounting

• EZ‑snap canopy for top or end mounting to standard junction boxes.
• Universal knockout backplate for surface wall mounting; gasket to wall for a clean finish.

Housing

• Injection‑molded, impact‑resistant thermoplastic with UL 94 5VA flame rating.
• Available in white or black; smooth face with discreet chevron knockouts.

Options

• HL — high‑lumen 2.0 W lamp heads (not compatible with RC).
• RC — 2.0 W remote‑head output (not compatible with HL); see remote‑capable exit combos.
• SDT — optional self‑diagnostic testing (monthly/biannual/annual).
• SPV — special‑voltage 120/230 VAC, 50/60 Hz input (where offered).

Certifications / Warranty

• UL 924 listed for damp locations (0–50 °C).
• Meets NFPA 101, NEC, OSHA; CEC Title 20 compliant.
• 1‑year warranty on housing and electronics; battery 1‑year prorated.

Dimensions

• See the spec sheet drawings for cabinet envelope and overall projection with lamp heads.

Selection & Layout Tips

• HL vs. RC: Choose HL 2.0 W when you need longer spacing from the combo itself; choose RC 2.0 W when you need to feed a separate remote head. They’re mutually exclusive.
• Legend color: Keep red/green consistent by floor; confirm local AHJ preferences before ordering.
• Beam aiming: Start with both heads slightly down‑corridor; overlap beams at doors and landings to minimize scallops and improve verticals on hardware.
• Voltage drop: For RC models, use short runs and appropriate gauge; verify voltage at the last remote head under load.
• Testing cadence: Allow a full charge before the first 90‑minute test; log monthly functional and annual duration tests per UL 924/NFPA 101.

Compare Thin‑Profile Combos by Output Strategy & Warranty Class

Choose between higher head watts (HL), remote‑capacity (RC), or architectural construction. No pricing shown.

Frequently Asked Questions

What’s the practical difference between CTXTEU HL and RC versions?

HL raises each on‑board head to 2.0 W for longer spacing from the combo itself. RC allocates 2.0 W total to power a remote head elsewhere. They cannot be combined.

Is the legend color fixed at order time?

No. The CTXTEU ships field‑selectable for red or green legends so you can match local preferences or existing signage during install.

How do I mount the unit?

Use the EZ‑snap canopy for top or end mounting to a standard J‑box, or the universal backplate for surface wall installation. Verify knockout alignment before finishing.

Can I use remote heads with the HL option?

No. HL and RC are mutually exclusive to keep the power budget code‑compliant and predictable.

What testing is required for code compliance?

Perform a monthly functional test and an annual 90‑minute duration test, logging both for inspection per UL 924/NFPA 101.
